8 Debug in the positioning
8.2 Testing the Operation
79
FX Configurator-FP
Operation Manual
1
Introduction
2
Install
Uninstall
Start&Exit
3
Window and
Operation
Config
4
Creating
Files
5
Data set
6
Setting
The
Connection
7
Data flow
And
Procedure
8
Debug
In the
Positioning
9
Print
10
Edit
Function
In data

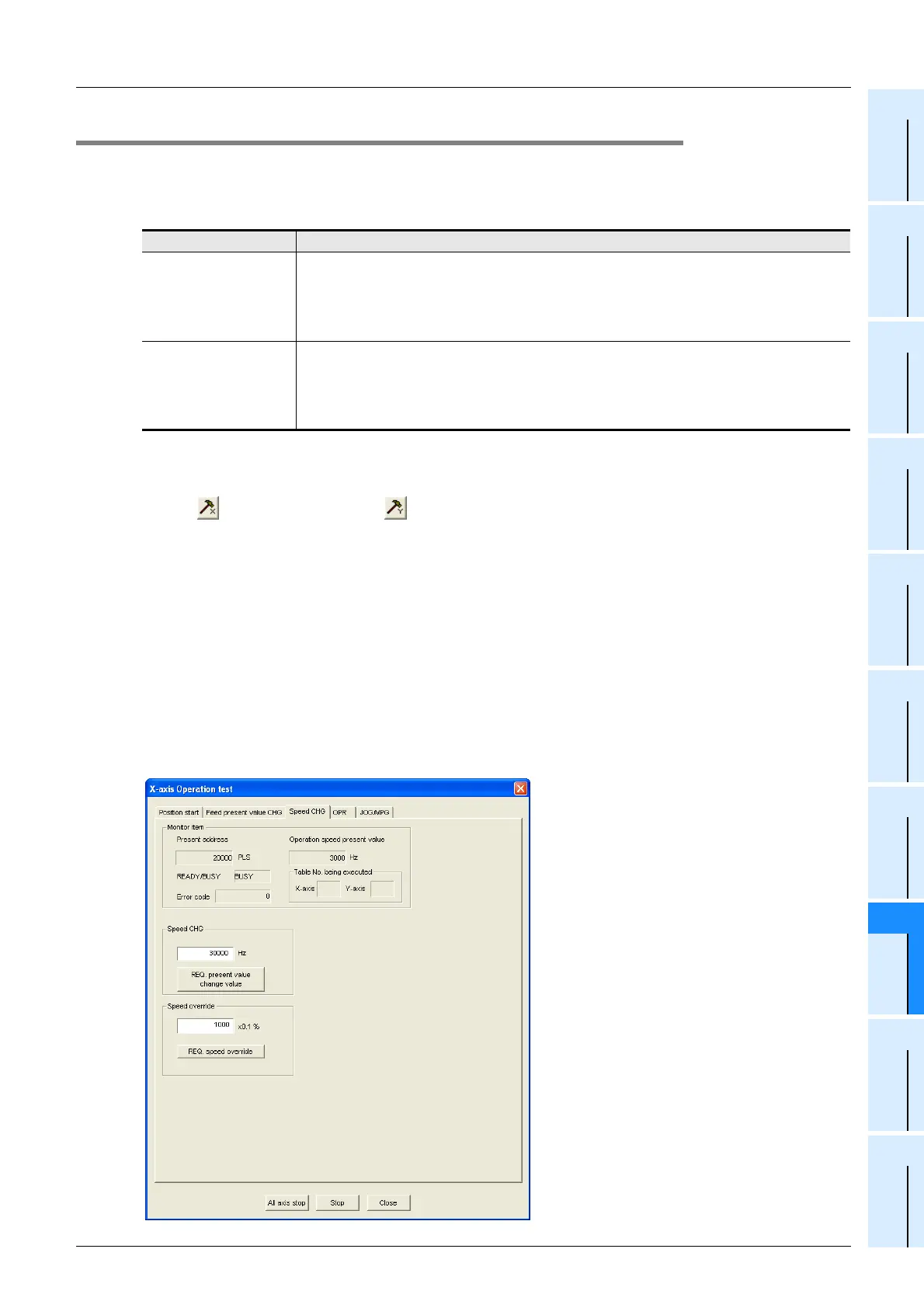

8.2.4 Speed change
Changing the operation speed and speed override setting in the following operations, by test mode.
For the procedure to switch into test mode, refer to Subsection 8.2.1.
For more details on each operation and the speed override function, refer to the FX
3U-20SSC-H
user's manual.
1 Follow any of the procedures below.
• Click [Operation test X-axis] / [Operation test Y-axis].
• Select [Online] [Test] [Operation test] [Operation test X-axis] / [Operation test Y-axis].
The position start tab in [Operation test X-axis] / [Operation test Y-axis] dialog box appears.
For position start tab, refer to Subsection 8.2.2.
For Feed present value CHG tab, refer to Subsection 8.2.3.
For zero return tab, refer to Subsection 8.2.5.
For JOG/MPG tab, refer to Subsection 8.2.6.
2 Click [Speed CHG] tab.
The display switches into [Speed CHG] tab.
3 Set each item for [Speed CHG].
Function Applicable operation pattern
Operation speed
change
Mechanical zero return (High speed), JOG operation, Positioning at 1-step speed,
Interrupt stop at 1-step speed, Positioning at 2-step speed,
Interrupt stop at 2-step speed, Interrupt stop, Multi-speed operation,
Linear interpolation, Linear interpolation (interrupt), Circular interpolation,
Reciprocal movement instruction
Speed override
Mechanical zero return (High speed), JOG operation, Positioning at 1-step speed,
Interrupt stop at 1-step speed, Positioning at 2-step speed,
Interrupt stop at 2-step speed, Interrupt stop, Variable speed operation,
Multi-speed operation, Linear interpolation, Linear interpolation (interrupt),
Circular interpolation, Reciprocal movement instruction
This window displays
[X-axis Operation status]
dialog box.
To Next Page
