ENGINE ELECTRICAL – Ignition System
16-5

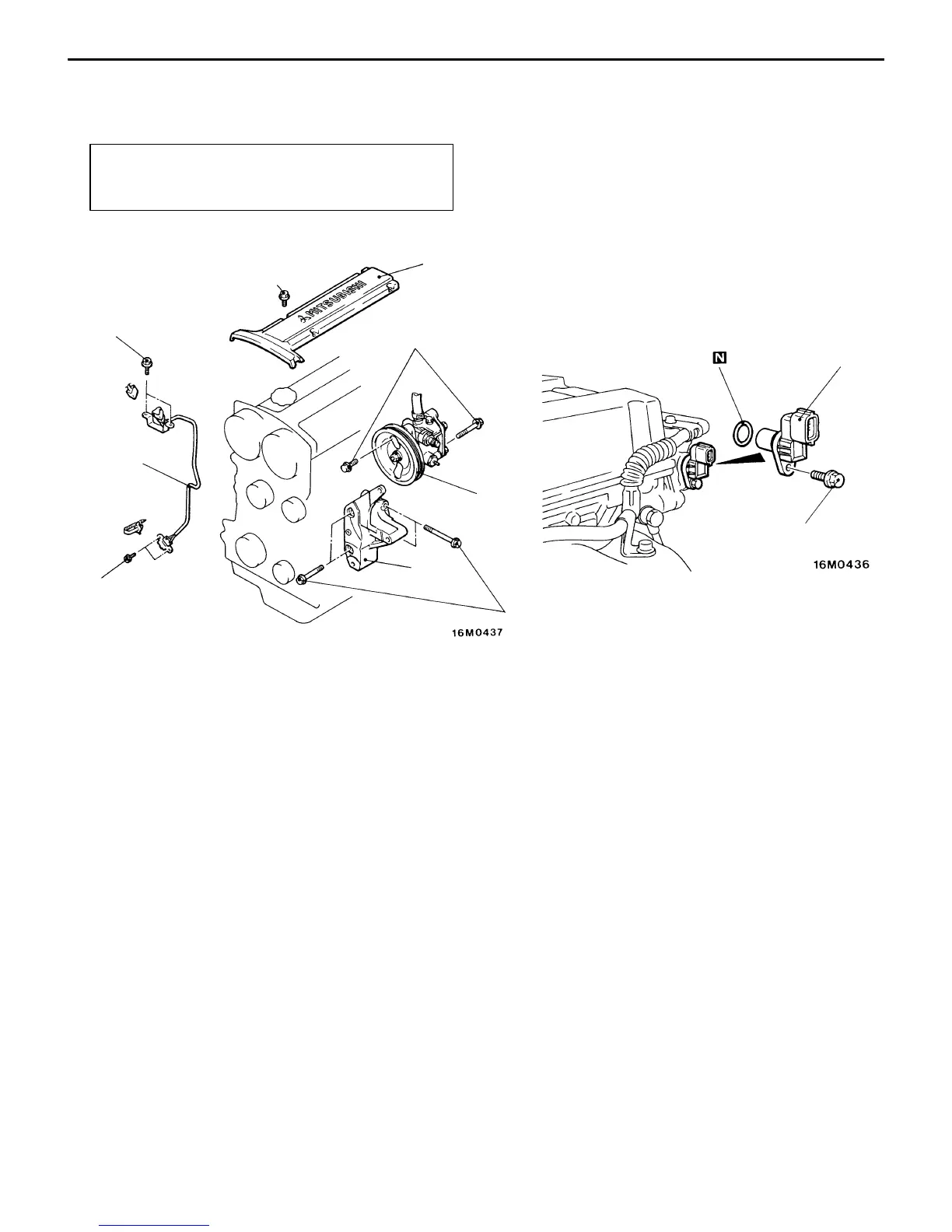

CAMSHAFT POSITION SENSOR AND CRANK ANGLE SENSOR
REMOVAL AND INSTALLATION
Pre-removal and Post-installation Operation
D Timing Belt Removal and Installation
(Refer to GROUP 11.)
Unit: Nm {kgf@m}
49 {5.0}
5
9 {0.9}
9 {0.9}
9 {0.9}
39 {4.0}
3 {0.3}
2
3
4
1
Removal steps
1. Camshaft position sensor
2. Center cover
AA" 3. Power steering oil pump
4. Power steering oil pump bracket
5. Crank angle sensor
REMOVAL SERVICE POINT
AA" POWER STEERING OIL PUMP REMOVAL
Remove the power steering oil pump with hose from the power
steering oil pump bracket.
NOTE
String up the oil pump which has been removed onto a location
that does not hamper removal and installation of the power
steering oil pump bracket.
To Next Page
