CHASSIS ELECTRICAL – Combination Meters
54-30

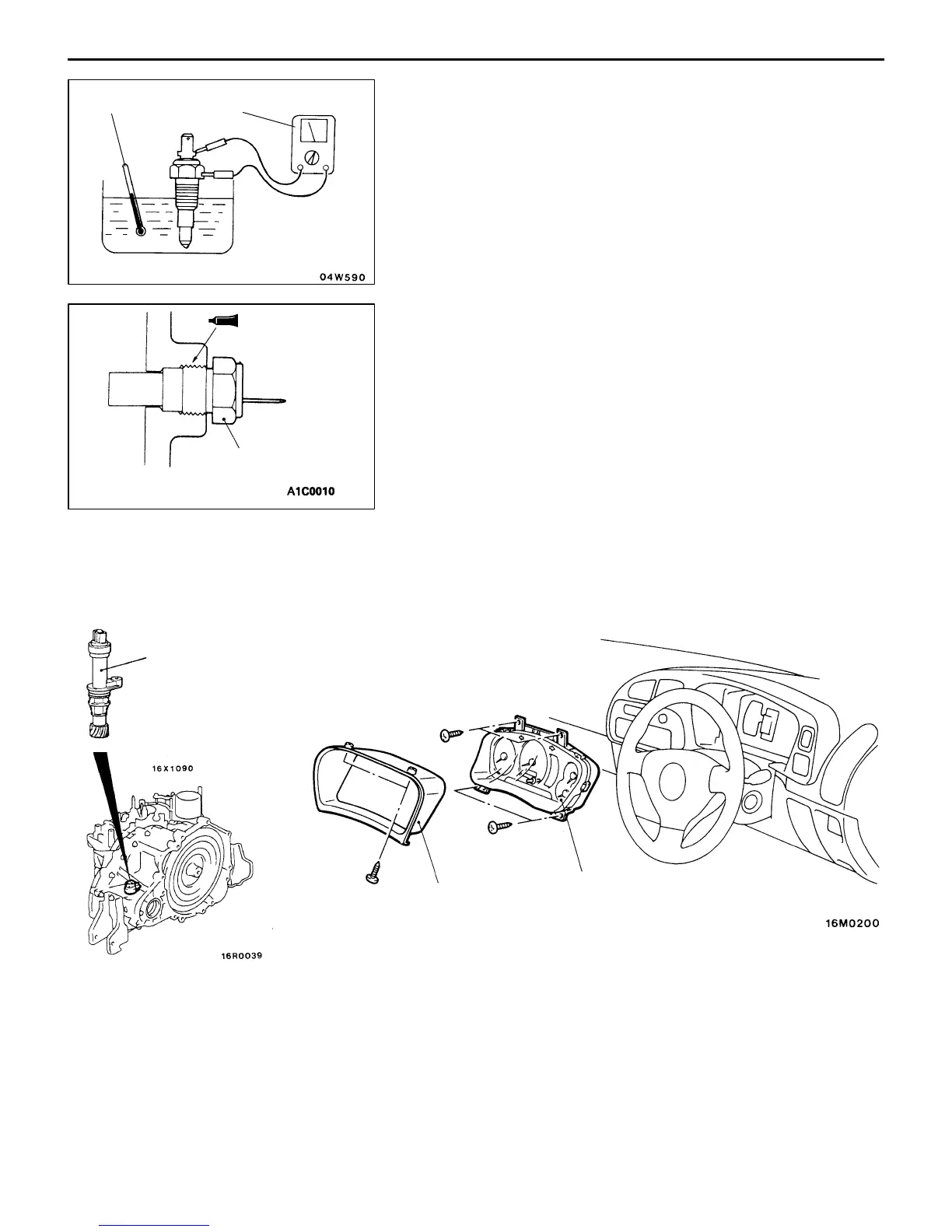

ENGINE COOLANT TEMPERATURE GAUGE UNIT
CHECK
1. Bleed the engine coolant.
2. Remove the engine coolant temperature gauge unit.
3. Immerse the unit in 70_ C water to measure the resistance.
Standard value: 104 ± 13.5 Ω
4. After checking, apply the specified adhesive around the
thread of engine coolant temperature gauge unit. Then,
tighten the unit to the specified torque.
Specified sealant:
3M Adhesive Nut Locking No. 4171 or equivalent
5. Add engine coolant.
COMBINATION METERS
REMOVAL AND INSTALLATION
2
1
3
Vehicle speed sensor removal
steps
D Battery and battery tray
D Air cleaner assembly
1. Vehicle speed sensor
Combination meter removal steps
2. Meter bezel
3. Combination meter
Thermometer
Circuit tester
10 – 12 Nm
To Next Page
