CHASSIS ELECTRICAL – Front Fog Lamp
54-39
FRONT FOG LAMP
SERVICE SPECIFICATIONS
Items Standard value
Headlamp aiming [Paren-
thesized are allowable
Vertical direction 2° (349 mm) below horizontal line (H)
beam axis deviations 10 m
ahead of headlamp.]
Horizontal direction 3° (524 mm) leftward from vertical line (V)
ON-VEHICLE SERVICE
HEADLAMP AIMING
Bring the vehicle in the following conditions before aiming
the headlamp.
D Check the tires for inflation pressure. Pump them up if
necessary to the labeled pressure level.
D Set the vehicle unladen on a level floor.
D Place one person (approximately 55 kg) on the driver’s
seat.
D Maintain an engine speed of 2,000 r/min to keep the
battery in the charged condition.

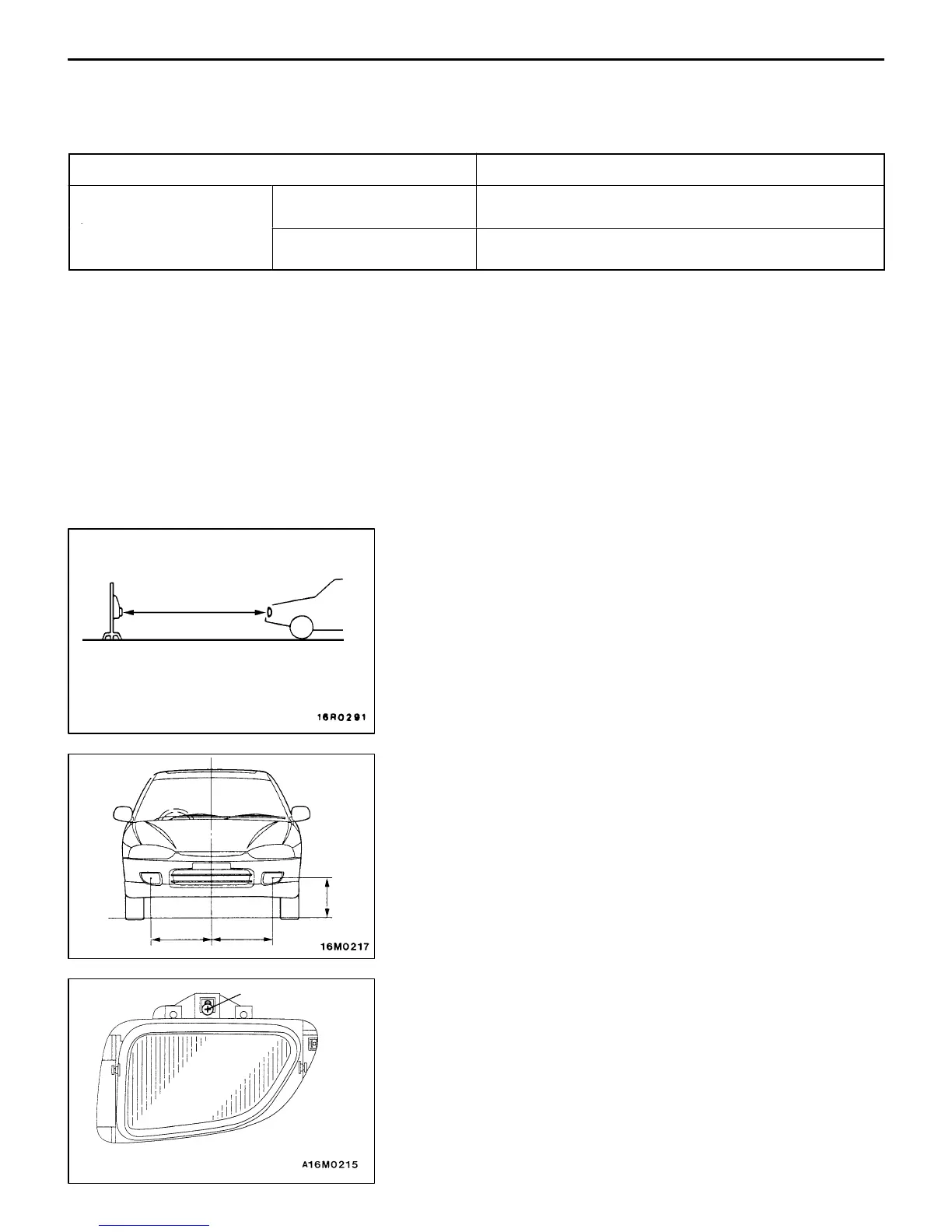

1. Position the tester so that its converging lens faces the
fog lamp center to center at a distance of 10 m.
NOTE
Measure the center of the fog lamp as shown.
A: 572.5 mm (from the center of the vehicle body)
B: 360 mm
2. Remove the fog lamp bezel, and using the aiming
adjustment screw, aim the fog lamp to the standard value.
NOTE
The horizontal direction is non-adjustable. If the beam
axis deviation exceeds the standard value, check the
fog lamp to determine if it is installed out of position and
correct if necessary.
Face to face 10 m apart from
each other
AA
B
Adjusting screw
To Next Page
