CHASSIS ELECTRICAL – Antenna
54-49
REMOVAL SERVICE POINT

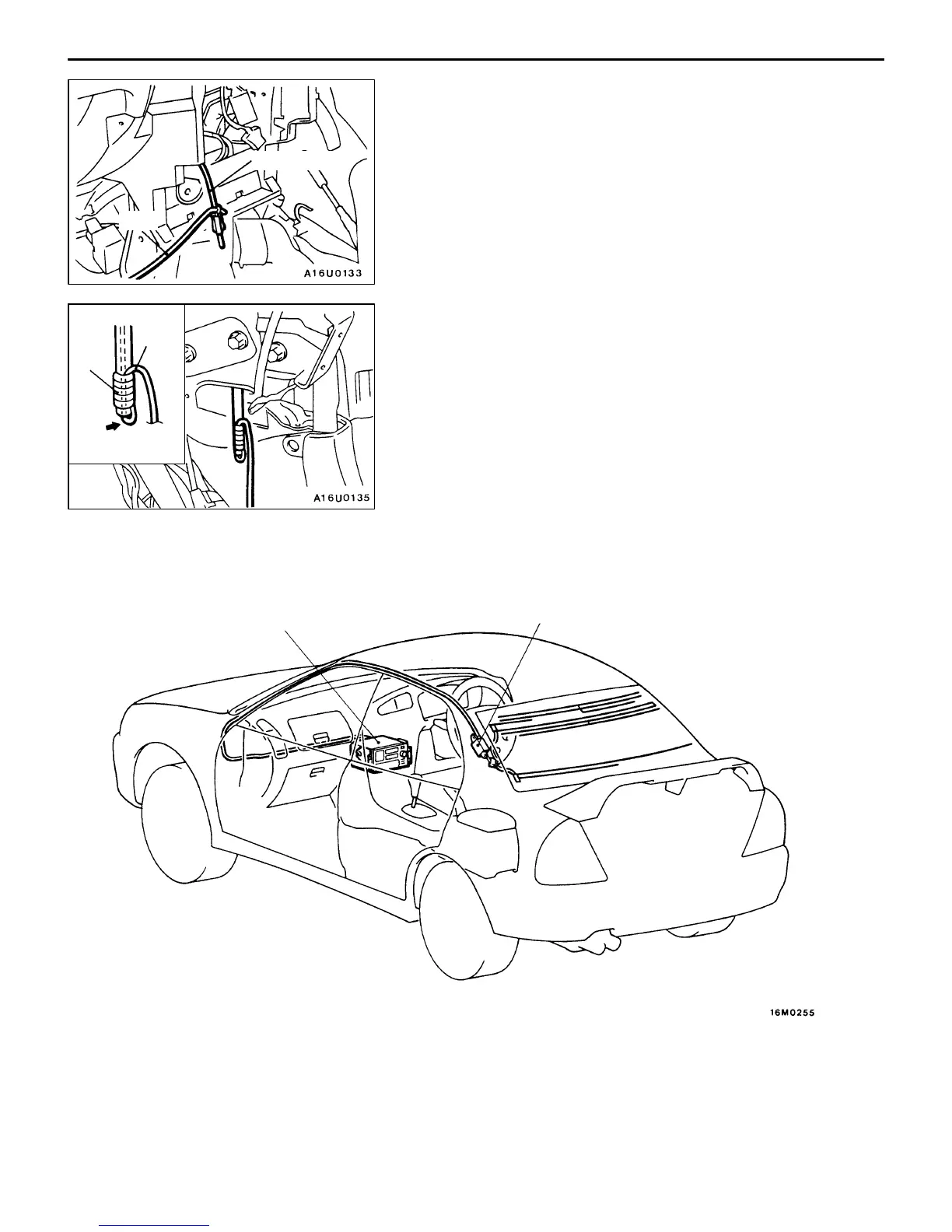

AA" ANTENNA ASSEMBLY REMOVAL
To facilitate the installation work of the antenna assembly,
perform the following before removing the feeder cable:
1. Tie a cord to the end of the feeder cable.
2. Pull out the antenna assembly until the end of the drain
pipe can be seen.
3. Pass the cord through the hole in the end of the drain
pipe and wrap it with vinyl tape.
Caution
Wrap it securely so that the cord will not come off.
4. Pull out the antenna assembly little by little to remove
it.
REAR WINDOW ANTENNA AND GLASS DIVERSITY ANTENNA
REMOVAL AND INSTALLATION
1
2
Removal steps
D Glove box
D Front pillar trim (LH), center pillar trim
(LH), rear pillar trim (LH)
D Assist grip
1. Radio and tape player
AA" 2. Antenna assembly
Feeder cable
Cord
Cord
Tape
Hole
To Next Page
