Mitsubishi Lancer Evolution-IV User Manual

MPI – On-vehicle Service
13-32

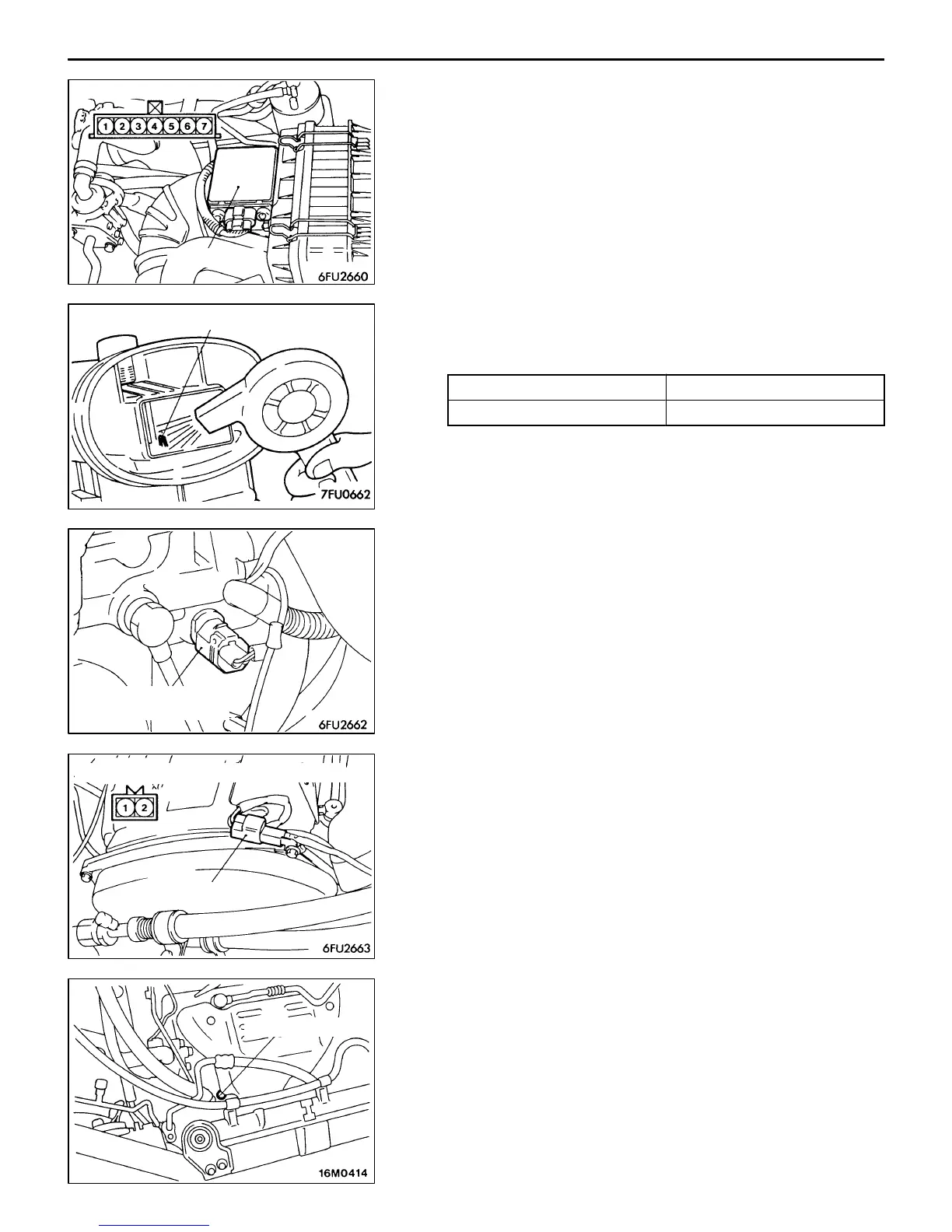

6. INTAKE AIR TEMPERATURE SENSOR
CHECK
1. Disconnect the air flow sensor connector.
2. Measure resistance between terminals 5 and 6.
Standard value:
2.3 – 3.0 kΩ (at 20_C)
0.30 – 0.42 kΩ (at 80_C)
3. Measure resistance while heating the sensor using a hair
drier.
Normal condition:
Temperature (_C) Resistance (kΩ)
Higher Smaller
4. If the value deviates from the standard value or the
resistance remains unchanged, replace the air flow sensor
assembly.
7. ENGINE COOLANT TEMPERATURE
SENSOR CHECK
The engine coolant temperature sensor is located as shown
on the left.
Standard value:
2.1 – 2.7 kΩ (at 20_C)
0.26 – 0.36 kΩ (at 80_C)
8. OXYGEN SENSOR CHECK
<EVOLUTION-IV>
The sensor connector is located as shown on the left.
<EVOLUTION-V>
(1) Disconnect the oxygen sensor connector and connect
the special tool (Test Harness: MD998464) to the oxygen
sensor connector.
Equipment sideconnector
Air flow sensor
Intake air temperature sensor
Engine coolant
temperature sensor
Oxygen sensor equipment side connector
Oxygen sensor connector
Oxygen sensor
