STEERING – Service Specifications / Special Tools / On-vehicle Service
37A-2

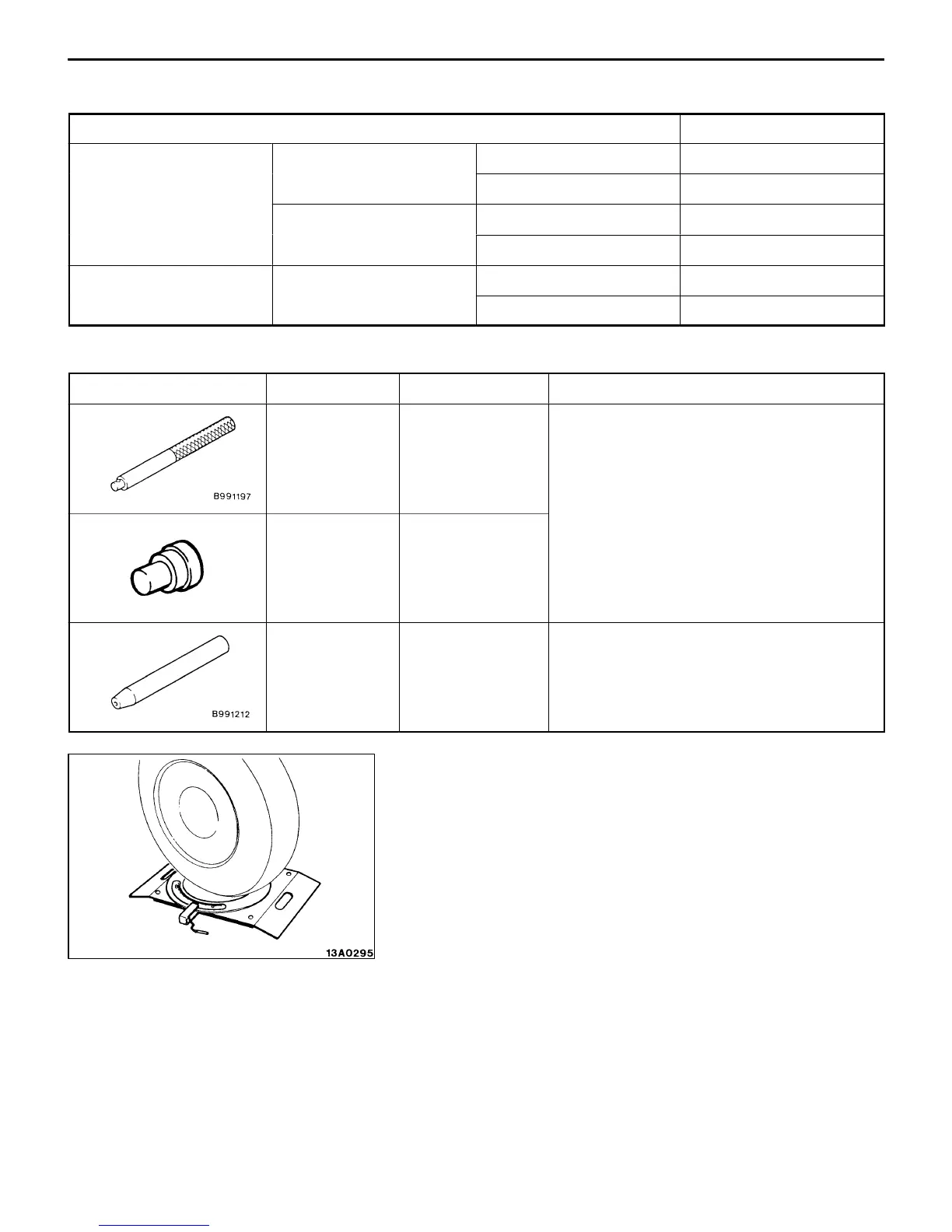

SERVICE SPECIFICATIONS
Items Standard value
Steering angle EVOLUTION-IV Inner wheel 33_30’ ± 2_
Outer wheel 28_20’
EVOLUTION-V Inner wheel 33_10’ ± 2_
Outer wheel 28_10’
Steering gear Pinion total turning torque
Nm {kg
f
cm}
Total turning torque 0.9 – 1.7 {9 – 17}
N
m
{k
g
f
@cm
}
Torque fluctuations 0.4 {4} or less
SPECIAL TOOLS
Tool Number Name Use
MB991197 Installer bar Pressfitting of gear housing oil seal
MB991199 Oil seal installer
MB991214 Oil seal protector Installation of rack assembly
ON-VEHICLE SERVICE
1. STEERING ANGLE CHECK
Locate front wheels on turning radius gauge and measure
steering angle.
Standard value:
Inner wheel
33_30’ ± 2_ <EVOLUTION-IV>
33_10’ ± 2_ <EVOLUTION-V>
Outer wheel
28_20’ <EVOLUTION-IV>
28_10’ <EVOLUTION-V>
When the angle is not within the standard value, the toe
is probably incorrect. Adjust toe (Refer to GROUP 33A –
On-vehicle Service) and recheck steering angle.
2. OIL PUMP BELT TENSION CHECK AND
ADJUSTMENT
Refer to GROUP 11 – Engine Adjustments.
