MANUAL TRANSMISSION OVERHAUL – Control Housing
22B-38

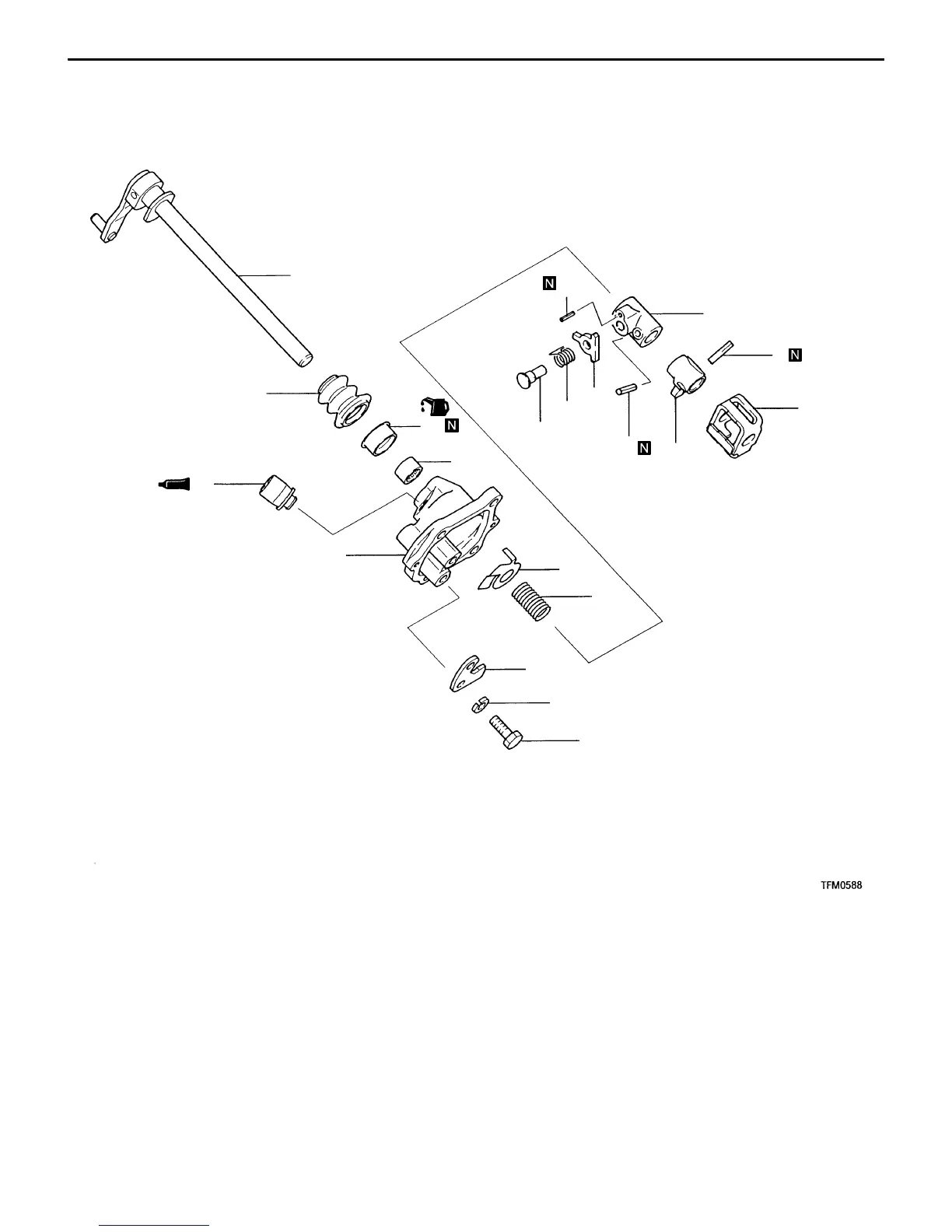

CONTROL HOUSING
DISASSEMBLY AND REASSEMBLY
5
4
3
2
1
6
9
7
8
10
11
12
13
14
15
16
17
19
18
Unit: Nm {kgf@m}
18 {1.9}
Disassembly steps
AA""FA 1. Lock pin
2. Interlock plate
3. Control finger
4. Pin
5. Return spring
6. Stopper plate
"EA 7. Spring pin
"DA 8. Spring pin
9. Stopper body
10. Neutral return spring
11. Spacer
12. Control shaft
"CA 13. Air breather
14. Control shaft boot
"BA 15. Oil seal
"AA 16. Needle bearing
17. Spring washer
18. Stopper bracket
19. Control housing
