REAR AXLE – Rear Hub Assembly
27-33

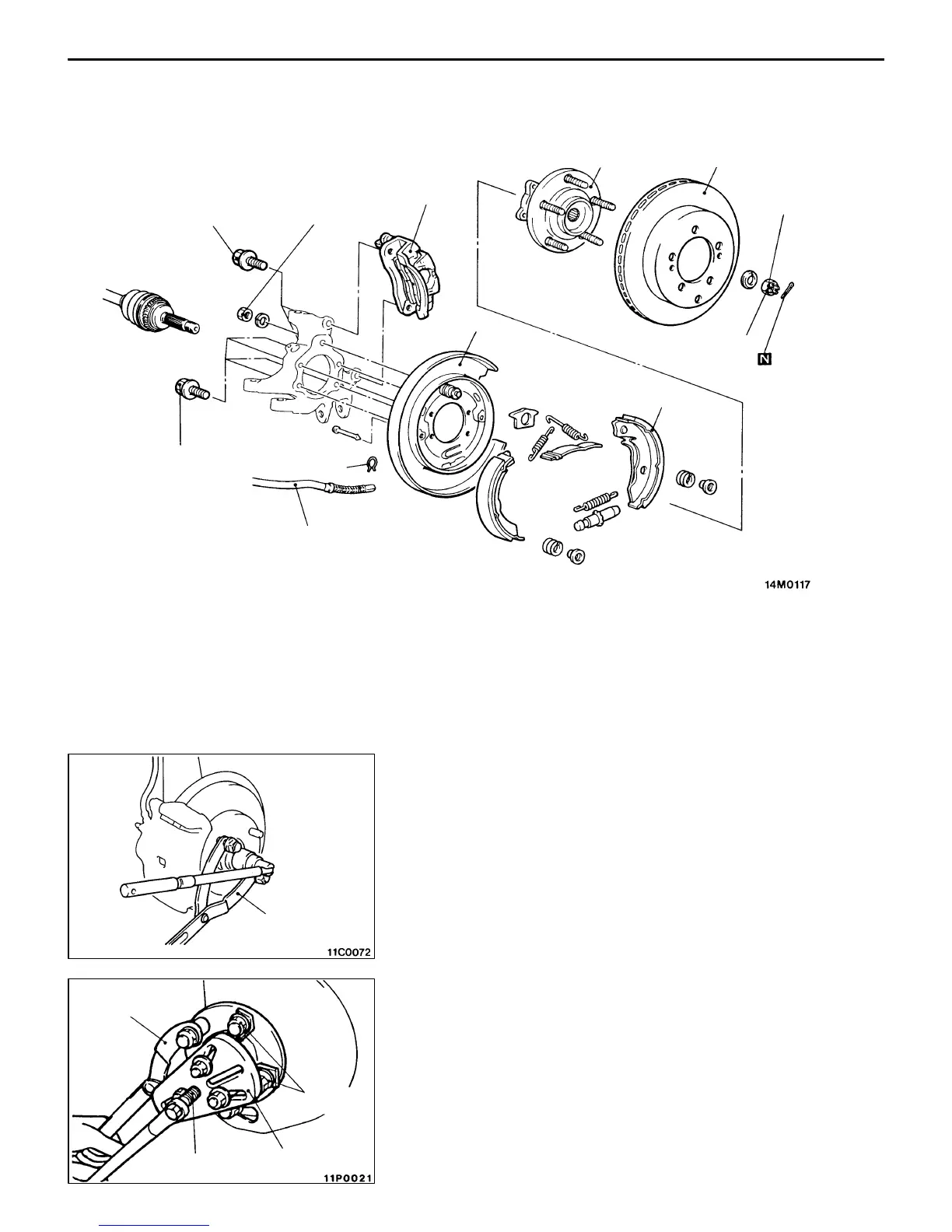

REAR HUB ASSEMBLY
REMOVAL AND INSTALLATION
1
2
3
4
5
6
7
8
Unit: Nm {kgf@m}
118 {12.0}
74 – 88
{7.5 – 9.0}
49 – 59
{5.0 – 6.0}
196 – 255
{20.0 – 26.0}
Removal steps
AA" 1. Caliper assembly
2. Brake disc
3. Shoe & lining assembly
(Refer to GROUP 36 – Parking
Brake.)
4. Clip
5. Parking brake cable connection
AB""AA 6. Drive shaft nut
AC" 7. Rear hub assembly
8. Backing plate
Caution
Do not disassemble the rear hub assembly.
REMOVAL SERVICE POINTS
AA" CALIPER ASSEMBLY REMOVAL
Secure the removed caliper assembly with a wire so that
it will not fall.
AB" DRIVE SHAFT NUT REMOVAL
AC" REAR HUB ASSEMBLY REMOVAL
(1) Using the special tool, remove the drive shaft from the
rear hub assembly.
(2) Remove the mounting bolts and remove the rear hub
assembly from the knuckle.
MB990767
MB990244 (3)
MB990767
MB990242
MB991354
