ENGINE COOLING – Thermostat
14-3
THERMOSTAT
REMOVAL AND INSTALLATION
Pre-removal and Post-installation Operation
D Engine Coolant Draining and Supplying
(Refer to P.14-2.)
D Air Intake Hose Assembly Removal and Installation
(Refer to GROUP 15 – Intercooler.)
4
3
5
1
Unit: Nm {kgf@m}
13 {1.3}

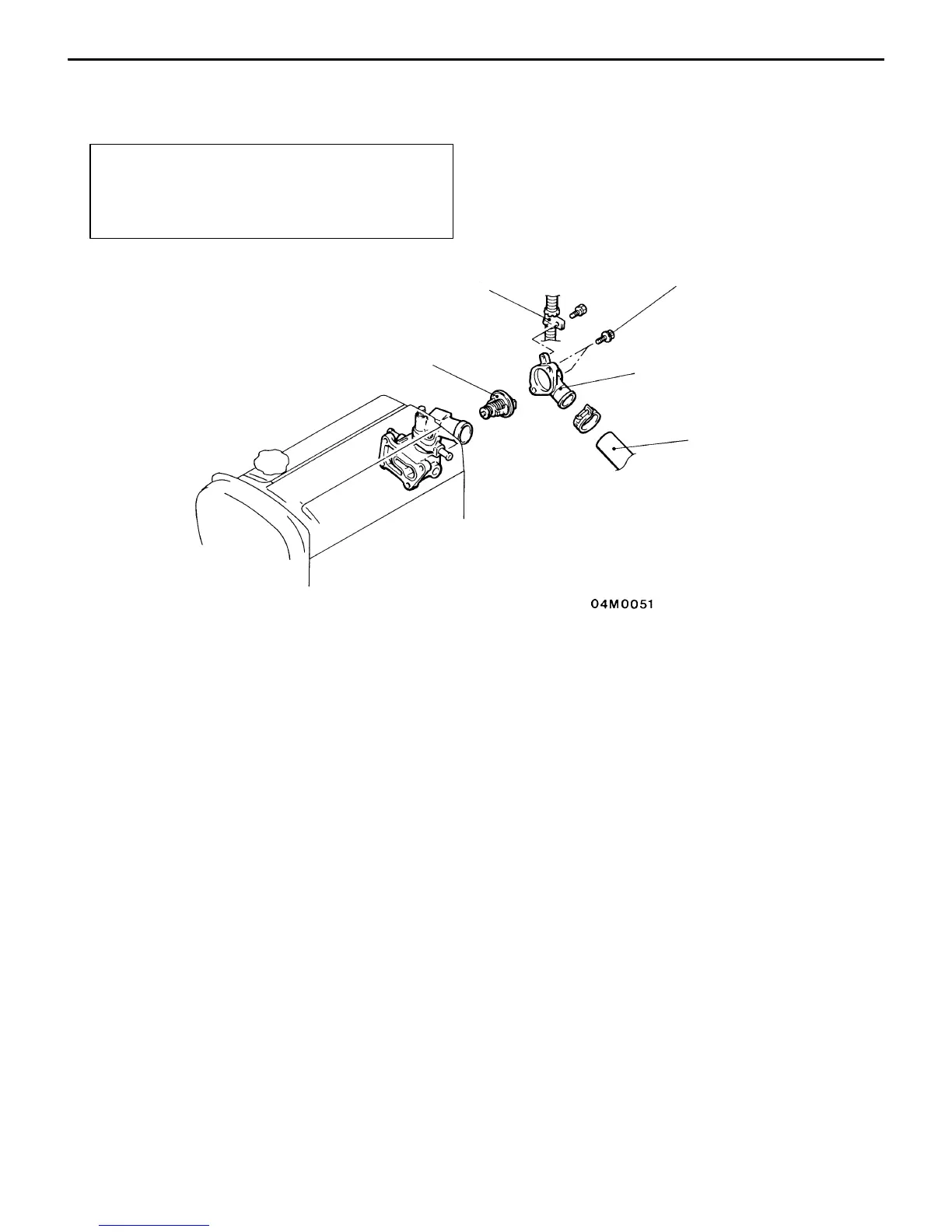

Removal steps
AA""BA 1. Radiator lower hose connection
2. Control wiring harness connection
3. Water inlet fitting
"AA 4. Thermostat
REMOVAL SERVICE POINT
AA" RADIATOR LOWER HOSE DISCONNECTION
After making mating marks on the radiator hose and the hose
clamp, disconnect the radiator hose.
