REAR AXLE – Differential Carrier <EVOLUTION-V RS>
27-41

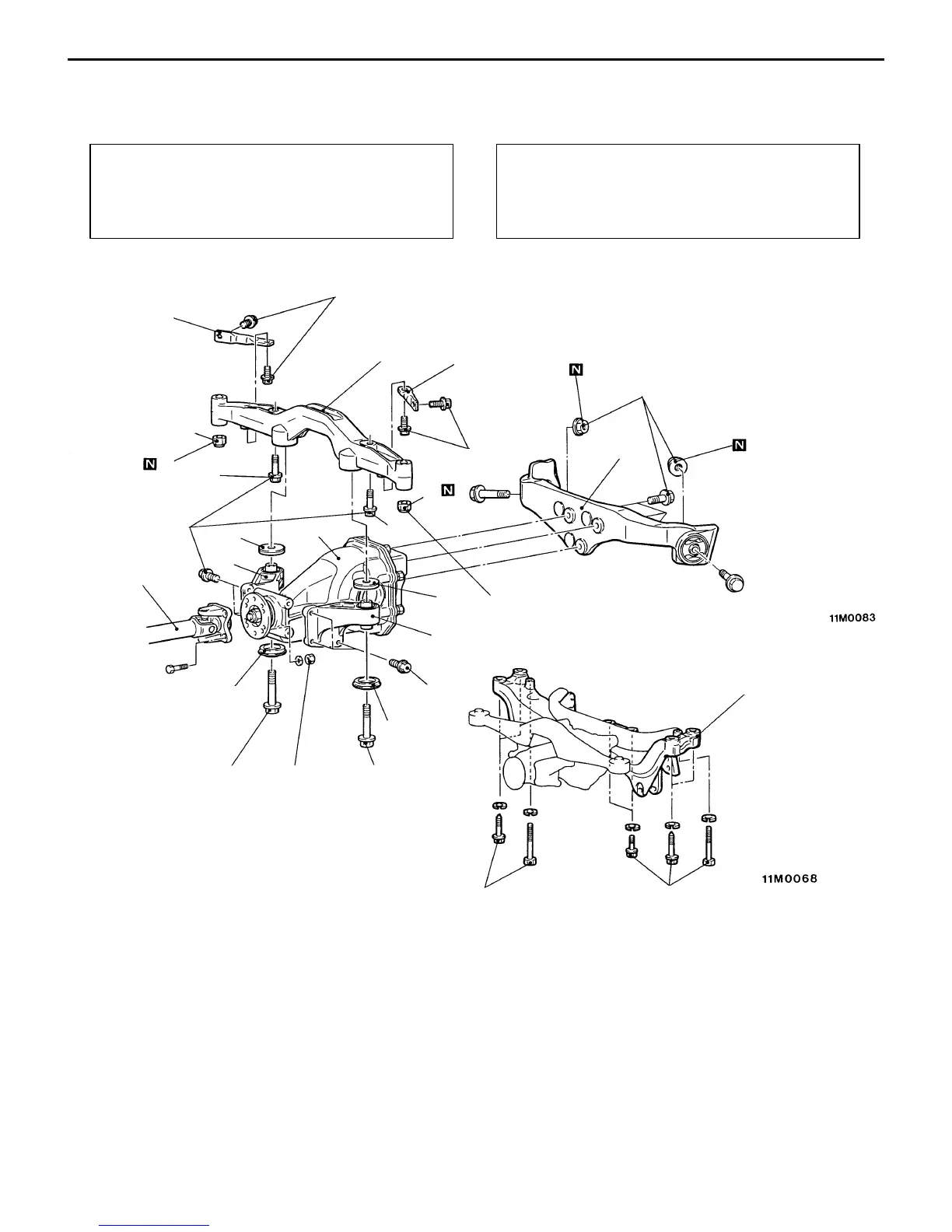

DIFFERENTIAL CARRIER <EVOLUTION-V RS>
REMOVAL AND INSTALLATION
Pre-removal Operation
(1) Differential Gear Oil Draining
(2) Lower Arm Assembly Removal
(3) Rear Stabilizer Removal
(4) Drive Shaft Removal
Post-installation Operation
(1) Drive Shaft Installation
(2) Rear Stabilizer Installation
(3) Lower Arm Assembly Installation
(4) Differential Gear Oil Filling
1
2
3
4
5
6
7
8
9
10
Unit: Nm {kgf@m}
29 – 34
{3.0 – 3.5}
88 {9.0}
108 – 127
{11.0 – 13.0}
3
6
9
7
2
108 – 127
{11.0 – 13.0}
108 – 127
{11.0 – 13.0}
88 {9.0}
88 {9.0}
88 {9.0}
69 {7.0}
108 – 127
{11.0 – 13.0}
3
3
69 {7.0}
88 {9.0}
Removal steps
AA""BA 1. Propeller shaft connection
2. Toe control bar
3. Differential support member mount-
ing bolt and nut
AB""AA 4. Rear crossmember and differential
carrier assembly
5. Differential support member
6. Upper stopper
7. Lower stopper
8. Differential support arm
9. Differential mount bracket
10. Differential carrier
