REAR AXLE – LSD Case Assembly <Vehicles without AYC>
27-46

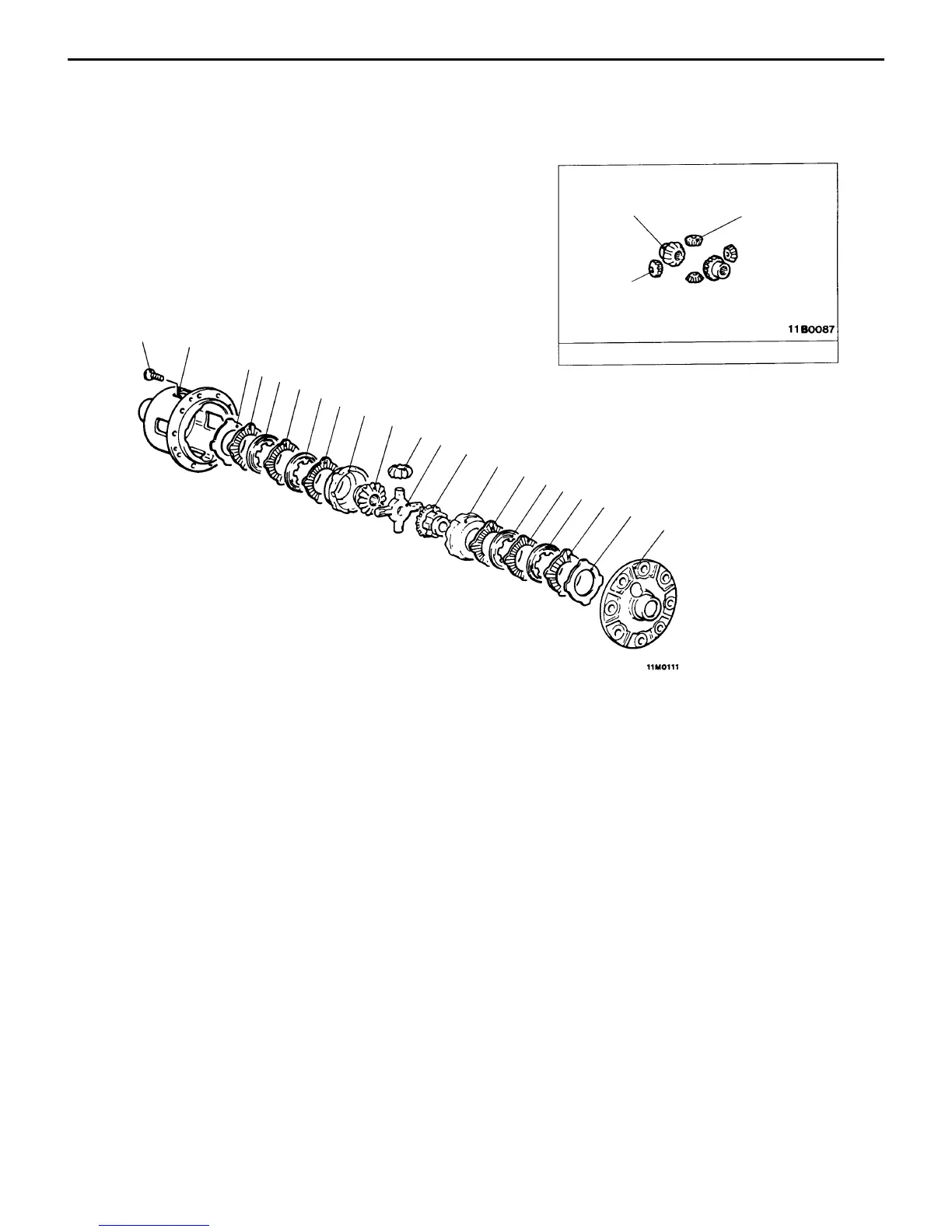

LSD CASE ASSEMBLY <VEHICLES WITHOUT AYC>
DISASSEMBLY AND REASSEMBLY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Differential gear set
10
11
11
10
Disassembly steps
"CADLSD differential torque check
AA""BA 1. Screw
2. Differential case A
3. Spring plate
4. Friction plate
5. Friction disc
6. Friction plate
7. Friction disc
8. Friction plate
9. Pressure ring
10. Side gear
11. Pinion gear
12. Pinion shaft
13. Pressure ring
14. Friction plate
15. Friction disc
16. Friction plate
17. Friction disc
18. Friction plate
19. Spring plate
"AA 20. Differential case B
DISASSEMBLY SERVICE POINT
AA" SCREW REMOVAL
(1) Check out the alignment marks.
(2) Loosen a uniform amount little by little the screws securing
differential case A to B.
(3) Separate differential case B from differential case A and
remove their components.
Keep the removed spring plates, friction plates, and friction
discs organized in the order of removal and for right and
left use.
To Next Page
