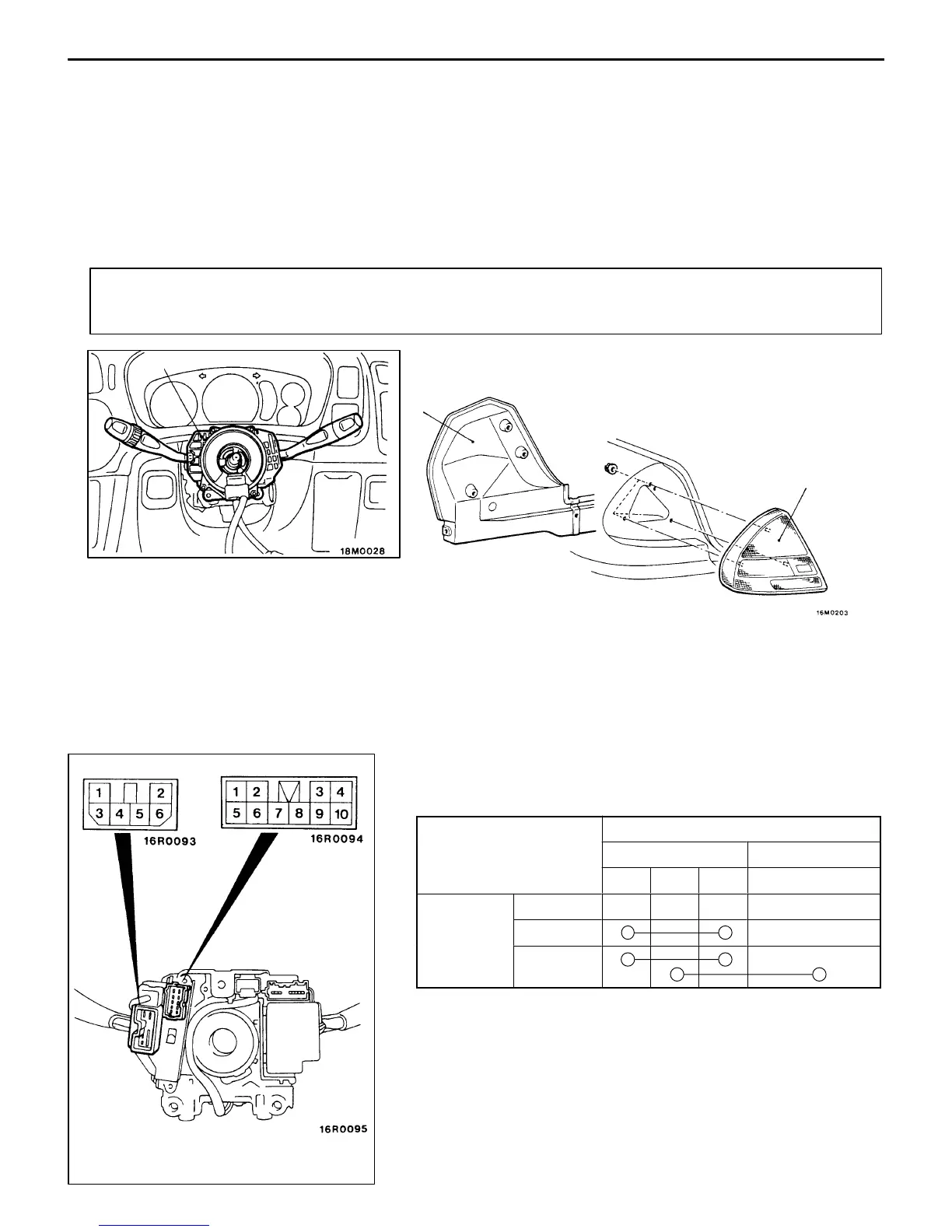

CHASSIS ELECTRICAL – Rear Combination Lamp
54-42
REAR COMBINATION LAMP
TROUBLESHOOTING
For the troubleshooting of the lighting monitor warning buzzer, refer to P.54-33.
REAR COMBINATION LAMP
REMOVAL AND INSTALLATION
Caution: SRS
Before removal of air bag module and clock spring, refer to GROUP 52B – SRS Service Precautions and Air Bag
Module and Clock Spring.
2
1
3
1. Column switch Rear combination lamp removal
steps
2. Rear end trim
3. Rear combination lamp
INSPECTION
LIGHTING SWITCH CONTINUITY CHECK
Switch position Terminal No.
Connector B Connector A
5 6 7 1
LIGHTING
SWITCH
OFF
SWITCH
TAIL
HEAD
Connector A Connector B
