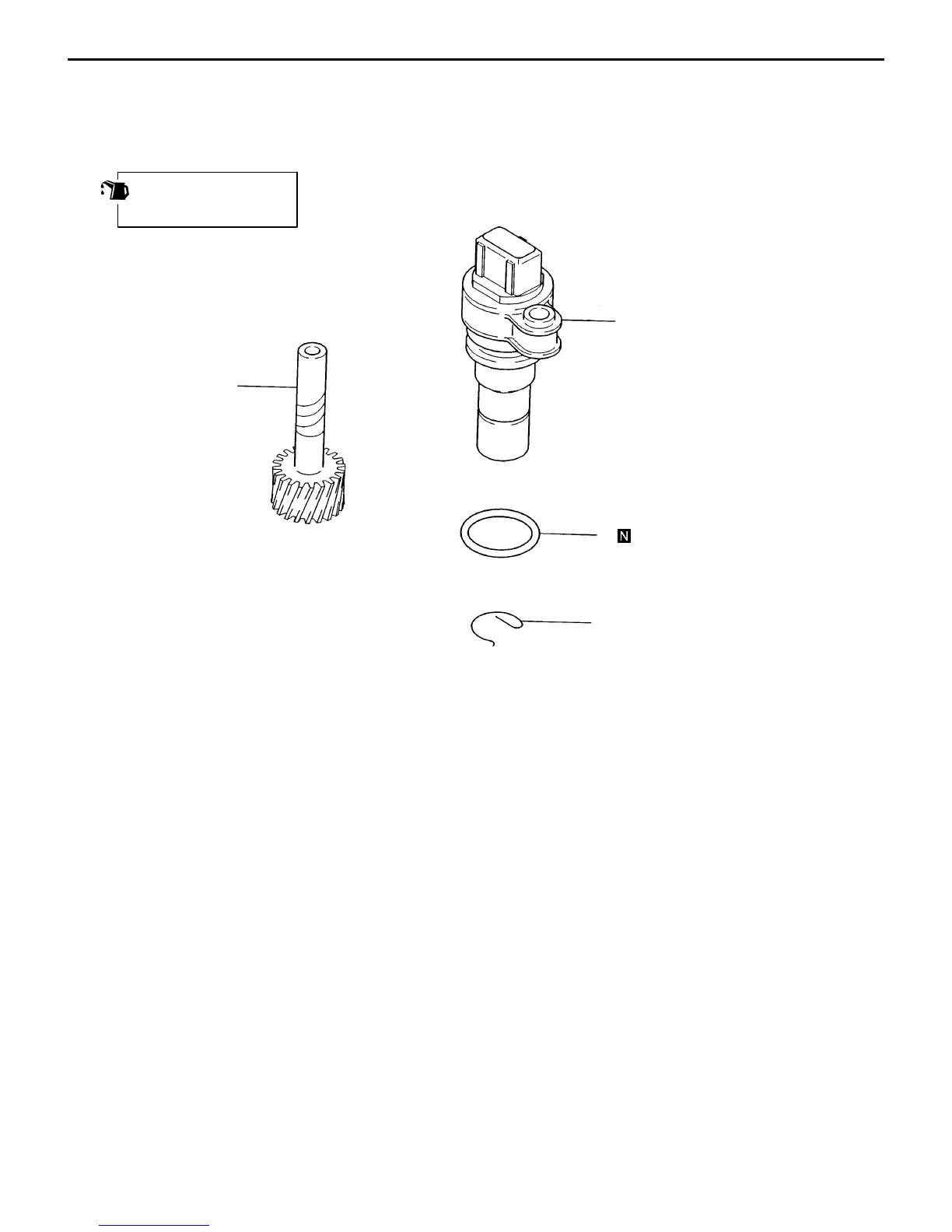

MANUAL TRANSMISSION OVERHAUL
–
Speedometer
Gear
22B-36
SPEEDOMETER
GEAR
DISASSEMBL
Y AND REASSEMBL
Y
Apply gear oil to all
moving parts
before
installation.
4
3
2
1
TFM0593
Disassembly steps
1.
e-clip
2.
Speedometer driven gear
3.
O-ring
4.
Sleeve
162
164
