MANUAL TRANSMISSION OVERHAUL – Output Shaft
22B-27

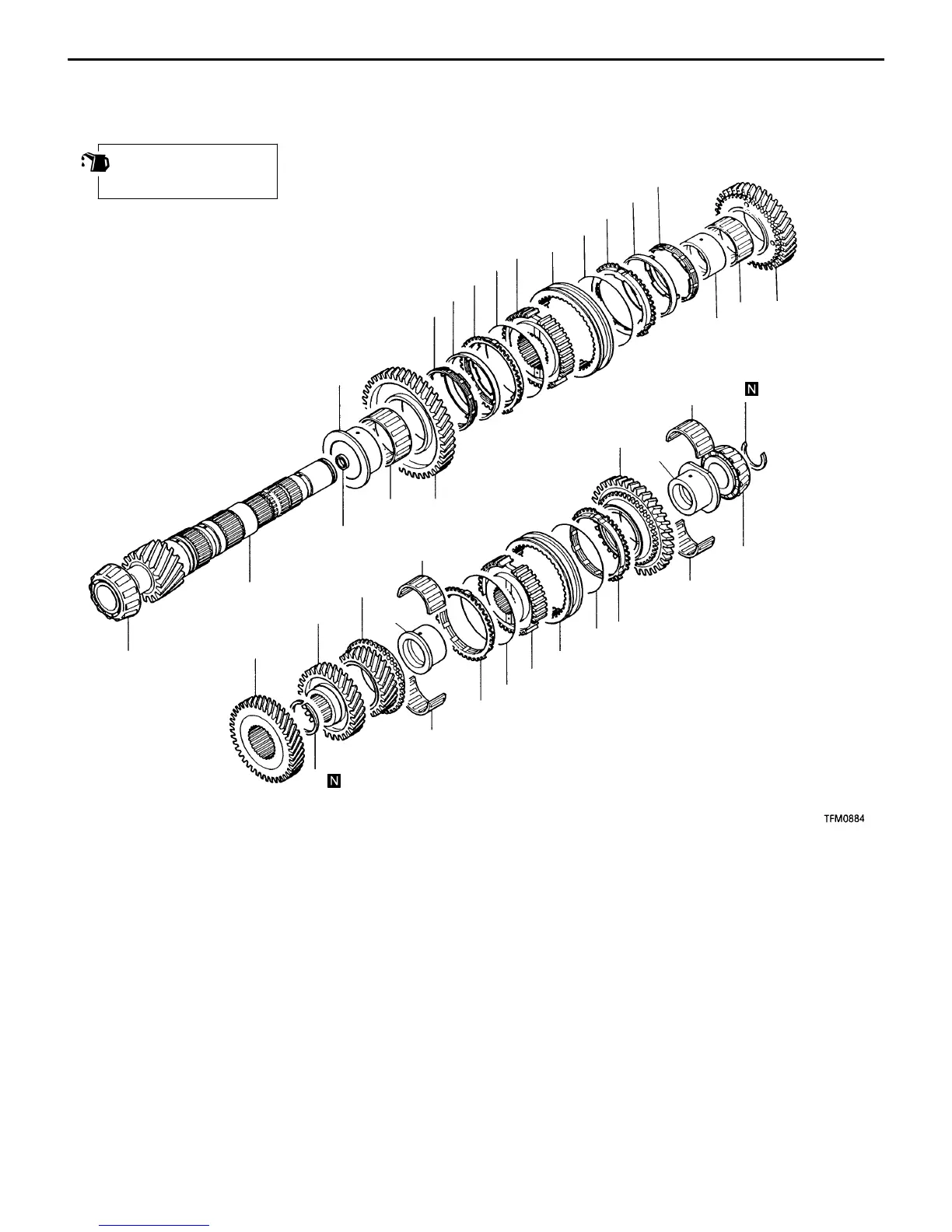

OUTPUT SHAFT
DISASSEMBLY AND REASSEMBLY
Apply gear oil to all
moving parts before
installation.
18
19
20
21
22
23
35
11
24
10
12
13
9
8
7
6
5
4
3
2
1
26
27
25
13
14
15
16
17
29
28
32
31
36
34
33
4
30
Disassembly steps
"PA 1. Snap ring
AA""OA 2. Taper roller bearing
AB""NA 3. Reverse gear bearing sleeve
"NA 4. Needle roller bearing
"NA 5. Reverse gear
6. Synchronizer ring
"LA 7. Synchronizer spring
"FA 8. Synchronizer sleeve
AC""MA 9. 5th-reverse speed synchronizer hub
10. Synchronizer ring
"LA 11. Synchronizer spring
12. 5th speed gear
13. Needle roller bearing
"KA 14. 5th speed gear sleeve
"JA 15. 4th speed gear
"IA 16. Snap ring
AD""HA 17. 3rd speed gear
18. 2nd speed gear
19. Needle roller bearing
AE""GA 20. 2nd speed gear sleeve
21. Inner synchronizer ring
22. Synchronizer cone
23. Outer synchronizer ring
"DA 24. Synchronizer spring
"FA 25. Synchronizer sleeve
"EA 26. 1st-2nd speed synchronizer hub
27. Outer synchronizer ring
"DA 28. Synchronizer spring
29. Inner synchronizer ring
30. Synchronizer cone
31. 1st speed gear
32. Needle roller bearing
AF""CA 33. 1st speed gear sleeve
AG""BA 34. Taper roller bearing
"AA 35. Oil seal
36. Output shaft
