ENGINE – Camshaft and Camshaft Oil Seal
11-10

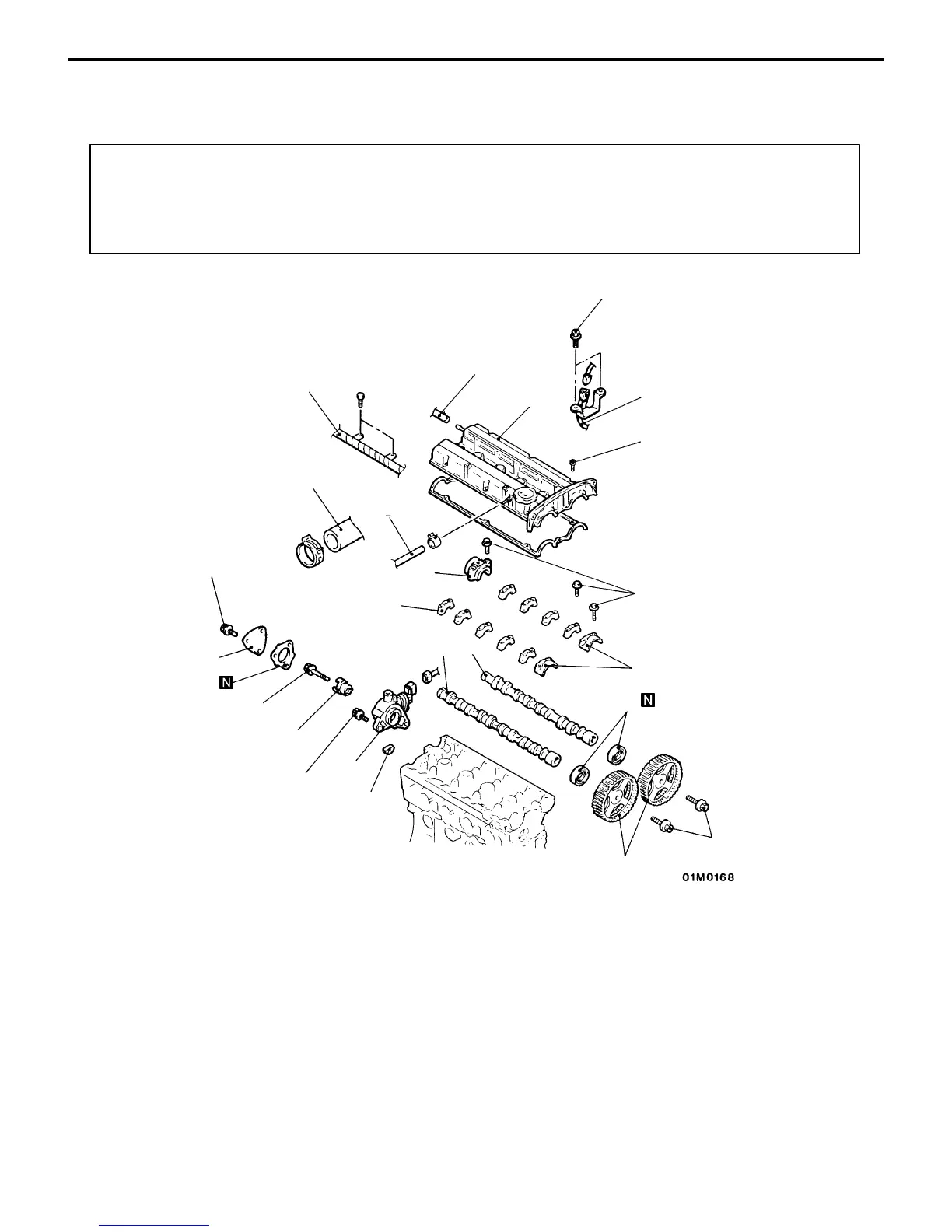

CAMSHAFT AND CAMSHAFT OIL SEAL
REMOVAL AND INSTALLATION
Pre-removal and Post-installation Operation
(1) Engine Coolant Draining and Refilling
(2) Air Hose C Removal and Installation
(Refer to GROUP 15 – Intercooler.)
(3) Spark Plug Cable and Ignition Coil Assembly Removal
and Installation
(4) Air Pipe Removal and Installation
(Refer to GROUP 15 – Air Control Valve.)
(5) Timing Belt Removal and Installation
(Refer to P.11-21.)
22 {2.2}
Unit: Nm {kgf@m}
10 {1.0}
9 {0.9}
3.4 {0.35}
20 {2.0}
88 {9.0}
12 – 15 {1.2 – 1.5}
1
5
3
4
6
2
14
15
17 16
13
12
11
10
9
8
7
Removal steps
1. Breather hose connection
2. PCV hose connection
3. Crank angle sensor bracket con-
nection
4. Control harness connection
5. Rocker cover
6. Radiator upper hose connection
7. Cover
"EA 8. Cam position sensing cylinder
9. Cam position sensor support
10. Semi-circular packing
AA""DA 11. Camshaft sprocket
"CA 12. Camshaft oil seal
"BA 13. Front cam cap
"BA 14. Rear cam cap
"BA 15. Cam cap
"AA 16. Camshaft (exhaust side)
"AA 17. Camshaft (intake side)
