ENGINE – Camshaft and Camshaft Oil Seal
11-11

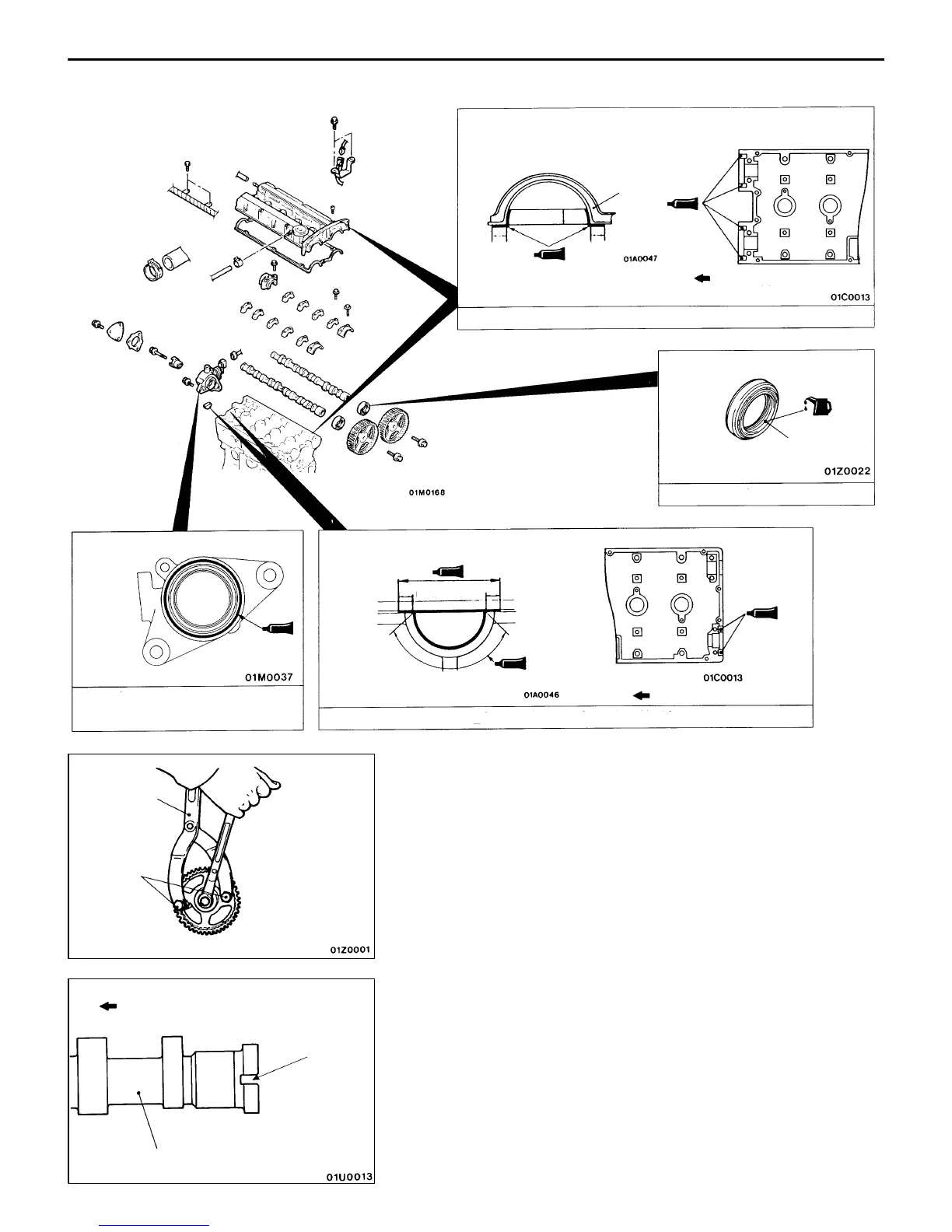

Grease and adhesive application points
Timing belt side
Semi-drying sealant: THREEBOND 1207D
Lip
10 mm
10 mm
10 mm
Semi-drying sealant:
THREEBOND 1207F
Engine oil
Semi-drying sealant: THREEBOND 1207D
Timing belt side
26
φ 3 mm
REMOVAL SERVICE POINT
AA" CAMSHAFT SPROCKET REMOVAL
INSTALLATION SERVICE POINTS
"AA CAMSHAFT INSTALLATION
(1) Apply engine oil to the cams and journals of the camshaft.
(2) Mount the camshaft on the cylinder head.
Caution
Make sure that the camshaft has a unique orientation
for installation, the intake side and exhaust side. The
exhaust camshaft has a slit in the rear end face.
MB990767
MD998719
Camshaft sprocket side
Camshaft (exhaust side)
Slit
