FRONT SUSPENSION – Lower Arm <EVOLUTION-IV>
33A-5
LOWER ARM <EVOLUTION-IV>
REMOVAL AND INSTALLATION
Post-installation Operation
(1) Push the Dust Cover of the Lower Arm and Stabilizer
Link Ball Joint with a Finger to Check for Possible
Cracks or Damage.
(2) Wheel Alignment Check and Adjustment
1
2
3
4
5
6
Unit: Nm {kgf@m}
39 {4.0}
113 {11.5}
Molybdenum disulfide-base chassis
grease:
SHOWA SHELL SEKIYU SUNLITE
MB2, NISSEKI CLAKNOCK FL, or
equivalent
137 {14.0}
88 {9.0}
106 {10.8}*
6

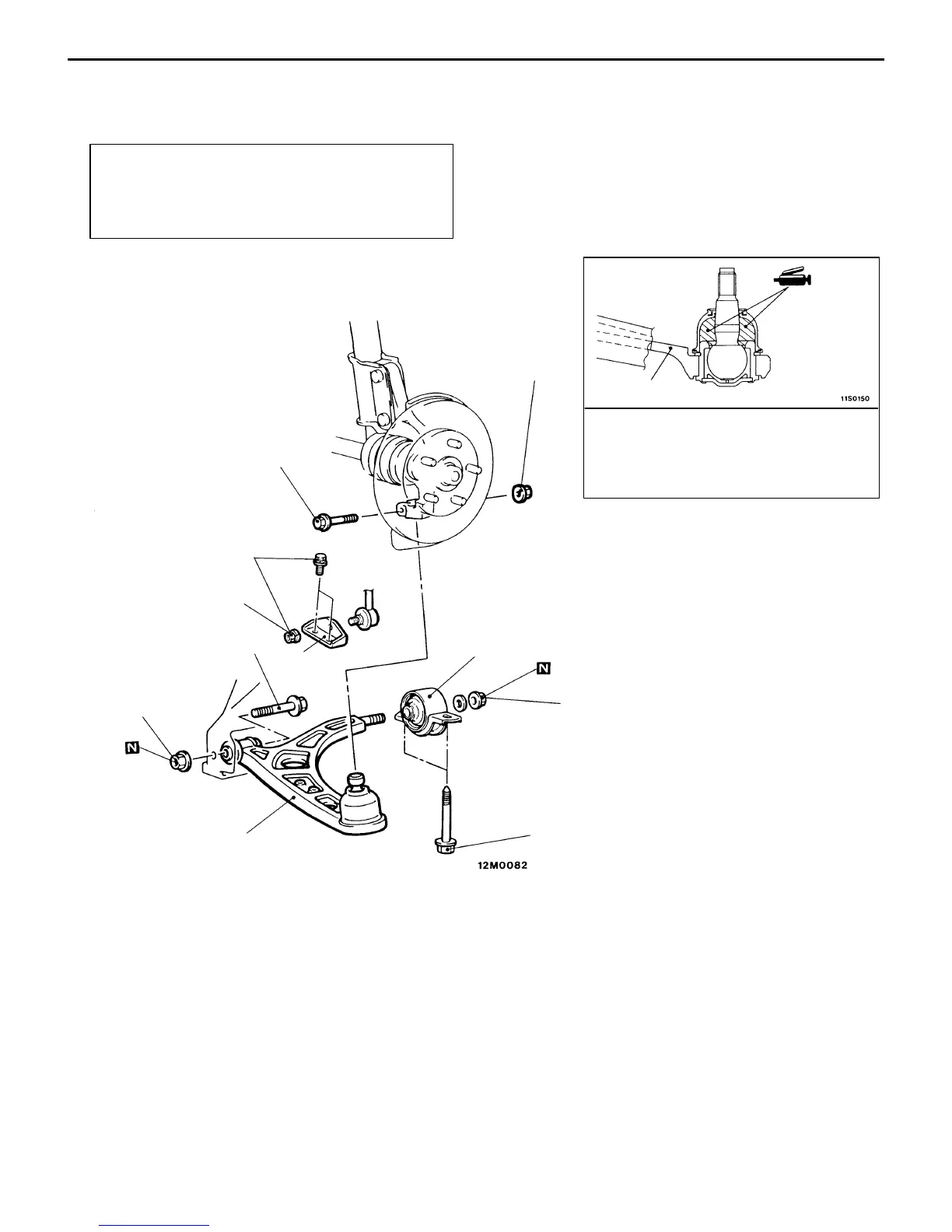

Removal steps
1. Stabilizer link mounting nut
AA" 2. Lower arm to knuckle coupling bolt
3. Bolt
4. Stabilizer bracket
"AA 5. Bushing assembly
6. Lower arm assembly
Caution
The part marked with * should be first temporarily
tightened, then torqued to specification with the
vehicle on the ground in unloaded condition.
NOTE
Follow the conventional procedures for removal service
points.
