MANUAL TRANSMISSION OVERHAUL – Control Housing
22B-39

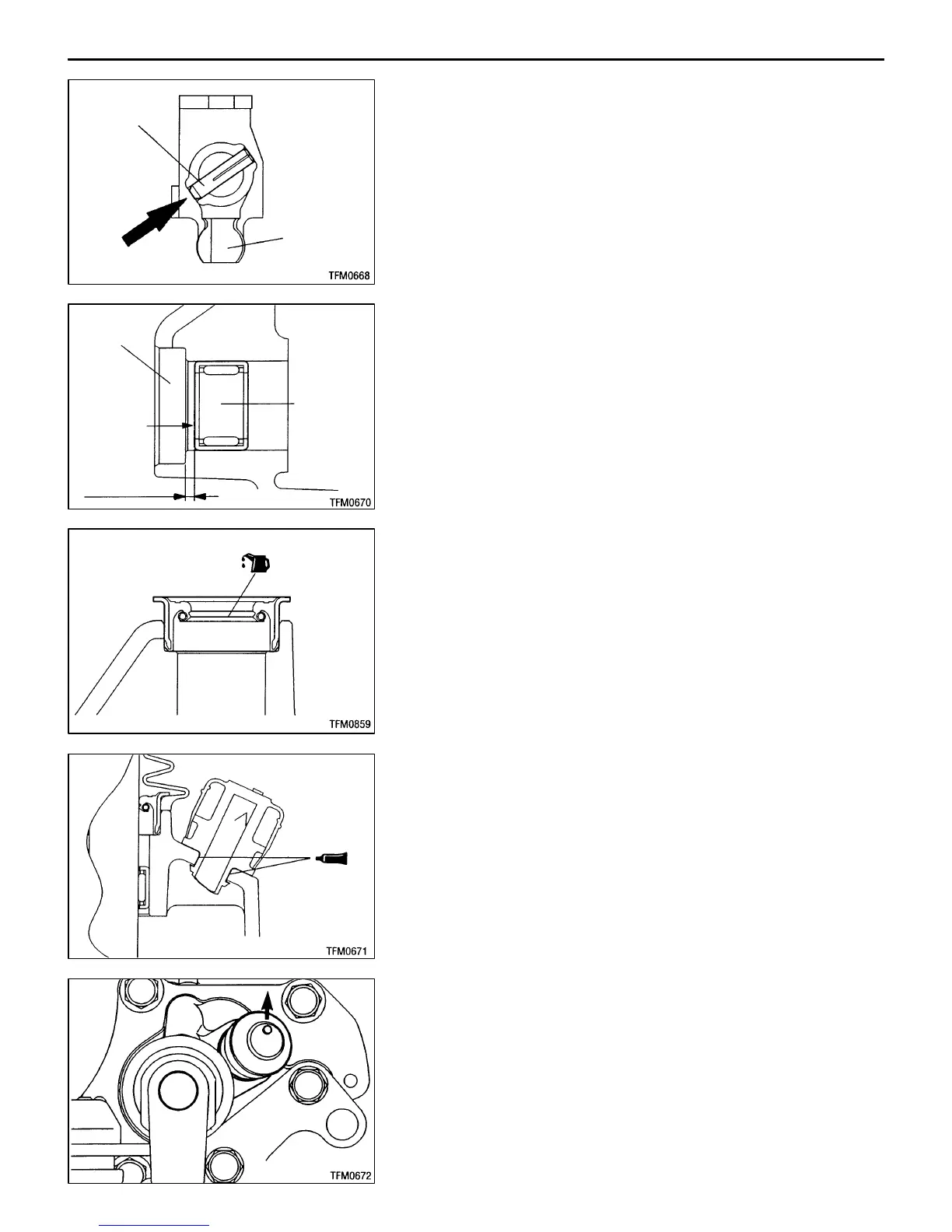

DISASSEMBLY SERVICE POINT
AA" LOCK PIN REMOVAL
Drive the lock pin out of position from the direction shown.
REASSEMBLY SERVICE POINTS
"AA NEEDLE BEARING INSTALLATION
Press fit the needle bearing to the position shown in the
illustration, while making sure that the model number stamped
side is oriented in the direction shown.
"BA OIL SEAL INSTALLATION
Apply transmission oil to the oil seal lip area.
Transmission oil: DIA QUEEN MULTI-GEAR OIL 75W/85W
"CA AIR BREATHER INSTALLATION
(1) Apply a sealant to the outside circumference of the
inserting portion.
Specified sealant: THREEBOND 1501
(2) Make sure that the projecting portion is oriented in the
direction shown.
Lock pin
Control
finger
Control
housing
Needle
bearing
Model
number
stamped
side
2 mm
To Next Page
