FRONT AXLE – Service Specifications / Special Tools
26-2
SERVICE SPECIFICATIONS
Items Limit
Hub axial play mm 0.05
Hub rotation starting torque Nm {kgf@m} 1.8 {1.8}
SPECIAL TOOLS

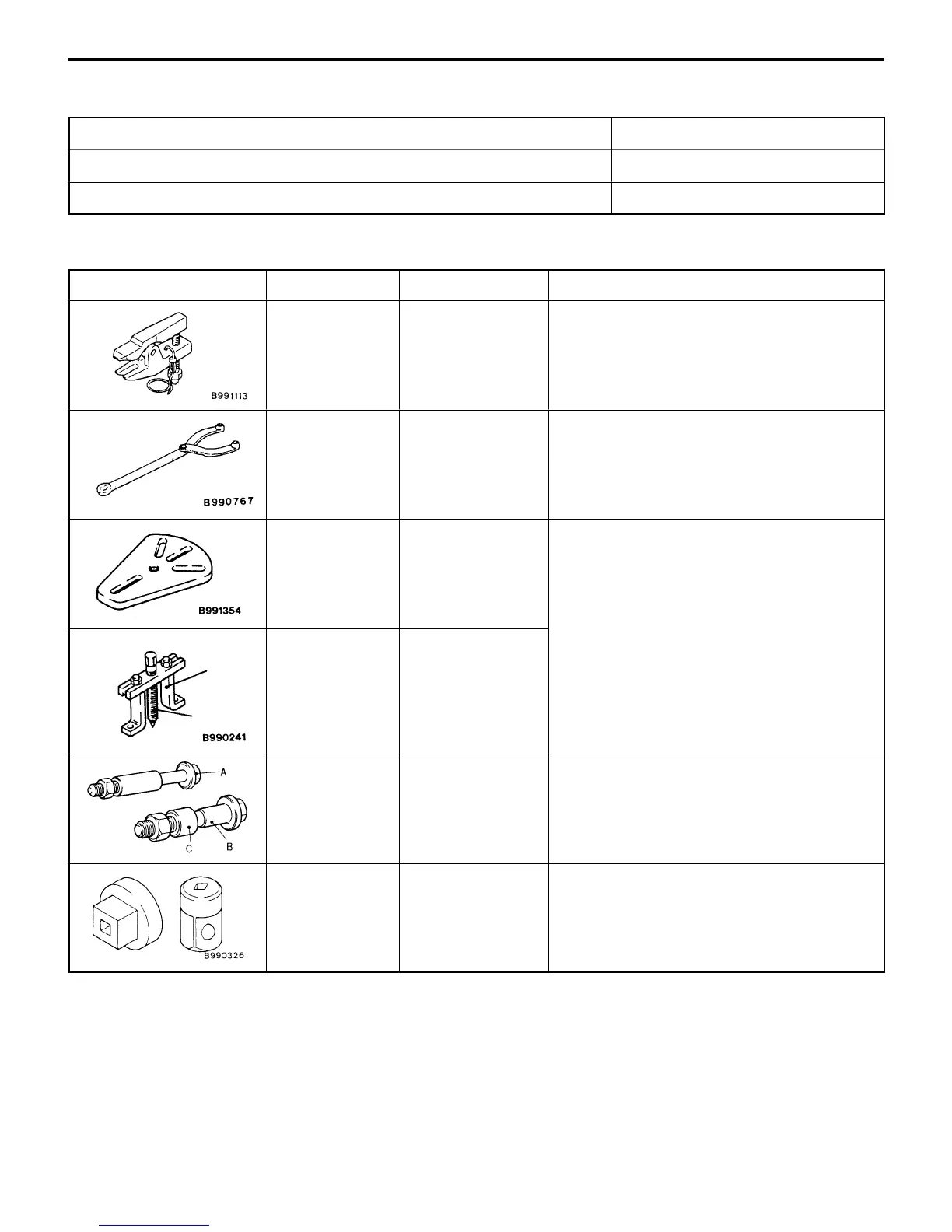

Tool Number Name Use
MB990635 or
MB991113
Steering linkage
puller
Ball joint disconnection
MB990767 End holder Fixing of hub
MB991354 Puller body Removal of drive shaft
A
B
MB990241
A: MB990242
B: MB990244
Axle shaft puller
A: Puller shaft
B: Puller bar
A: MB991017
B: MB990998
C: MB991000
A, B: Front hub
remover &
installer
C: Spacer
D Temporary fixing of unit bearing
D Measurement of hub rotation starting
torque
D Measurement of hub axial play
Use MB991000 (component of
MB990998) for the spacer.
MB990326 Preload socket Measurement of hub rotation starting torque
