REAR AXLE – LSD Case Assembly <Vehicles without AYC>
27-48
"BA SCREW TIGHTENING
(1) Align the alignment mark on differential case A with that
on differential case B.
(2) Tighten the screws connecting differential case A and
B a uniform amount little by little in the diagonal order.
NOTE
If tightening the screws does not bring the two cases
properly together, spring plates are not probably
assembled properly. Reassemble from the start.

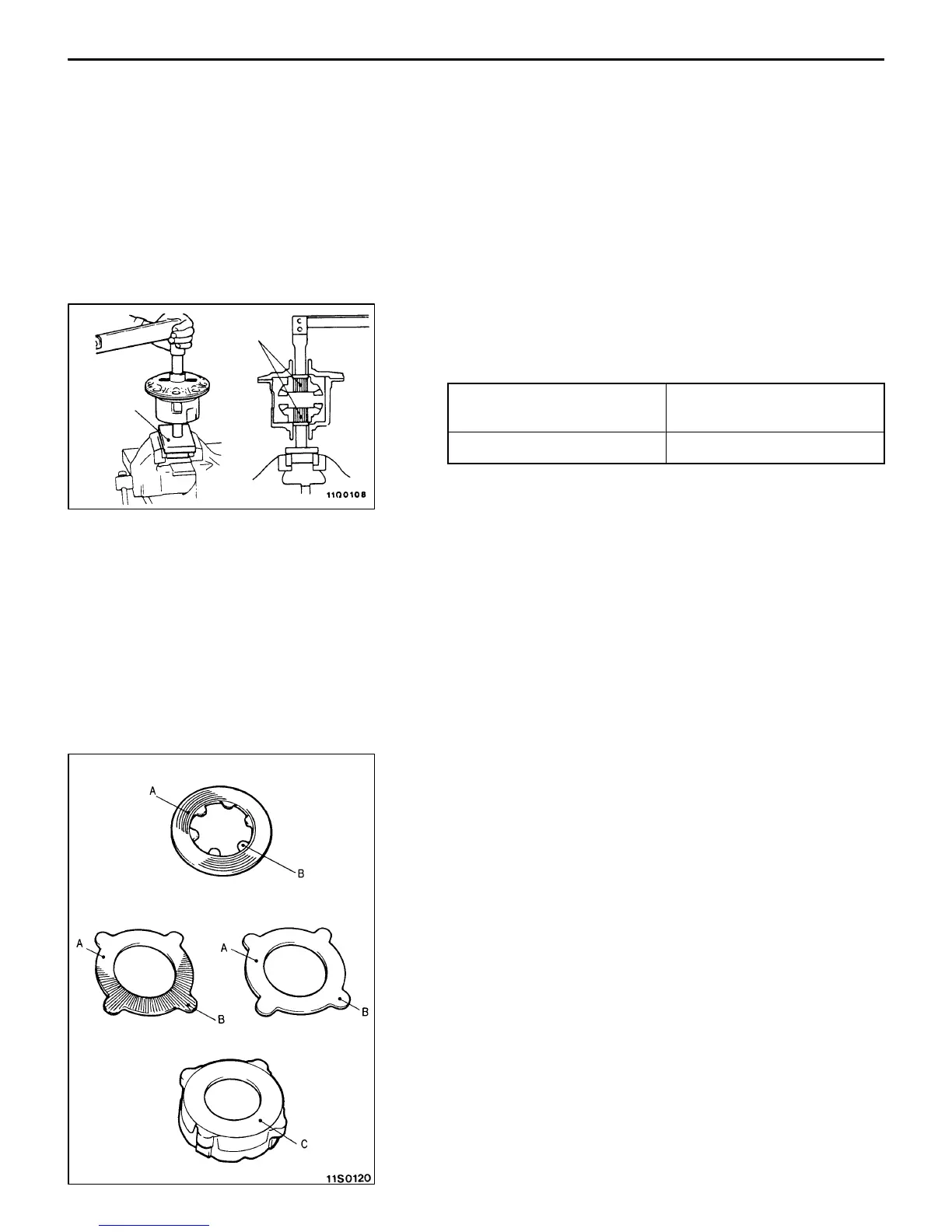

"CA LSD DIFFERENTIAL TORQUE CHECK
(1) Using the special tool, check for differential torque.
Standard value:
When new clutch plate is
installed Nm {kgf@m}
When existing clutch plate is
reused Nm {kgf@m}
5 – 19 {0.5 – 1.9} 2 – 19 {0.2 – 1.9}
NOTE
Before measuring the differential torque, first turn the
gears so they snug each other, then take measurements
during rotation.
(2) If the measurement falls outside the specified range,
disassemble the differential case assembly and repair
or replace defective parts.
INSPECTION
1. DIFFERENTIAL CASE INTERNAL PARTS
CONTACT/SLIDING SURFACE CHECK
(1) Clean the disassembled parts with cleaning oil and dry
them with compressed air.
(2) Check each plate, disc, and pressure ring for the following:
A. Friction and sliding surfaces of friction discs, friction
plates, and spring plates.
Replace a defective part with heat discoloration and
excessive wear with a new one, as it degrades locking
performance.
NOTE
If the inner periphery of the friction face shows traces
of harsh contact, it is because of the spring tension
of each plate, disc and other part. Do not confuse
this with abnormal wear.
B. Inner periphery and outer periphery protrusions of
friction discs, friction plates, and spring plates.
Replace a cracked or damaged part with a new one.
C. Friction and sliding surfaces between pressure rings
and friction discs.
MB990989
MB990990
Friction disc
Friction plate
Spring plate
Pressure ring
To Next Page
