REAR SUSPENSION – Stabilizer Bar
34-15
INSTALLATION SERVICE POINT
"AA STABILIZER BAR / BUSHING / STABILIZER BAR
BRACKET INSTALLATION

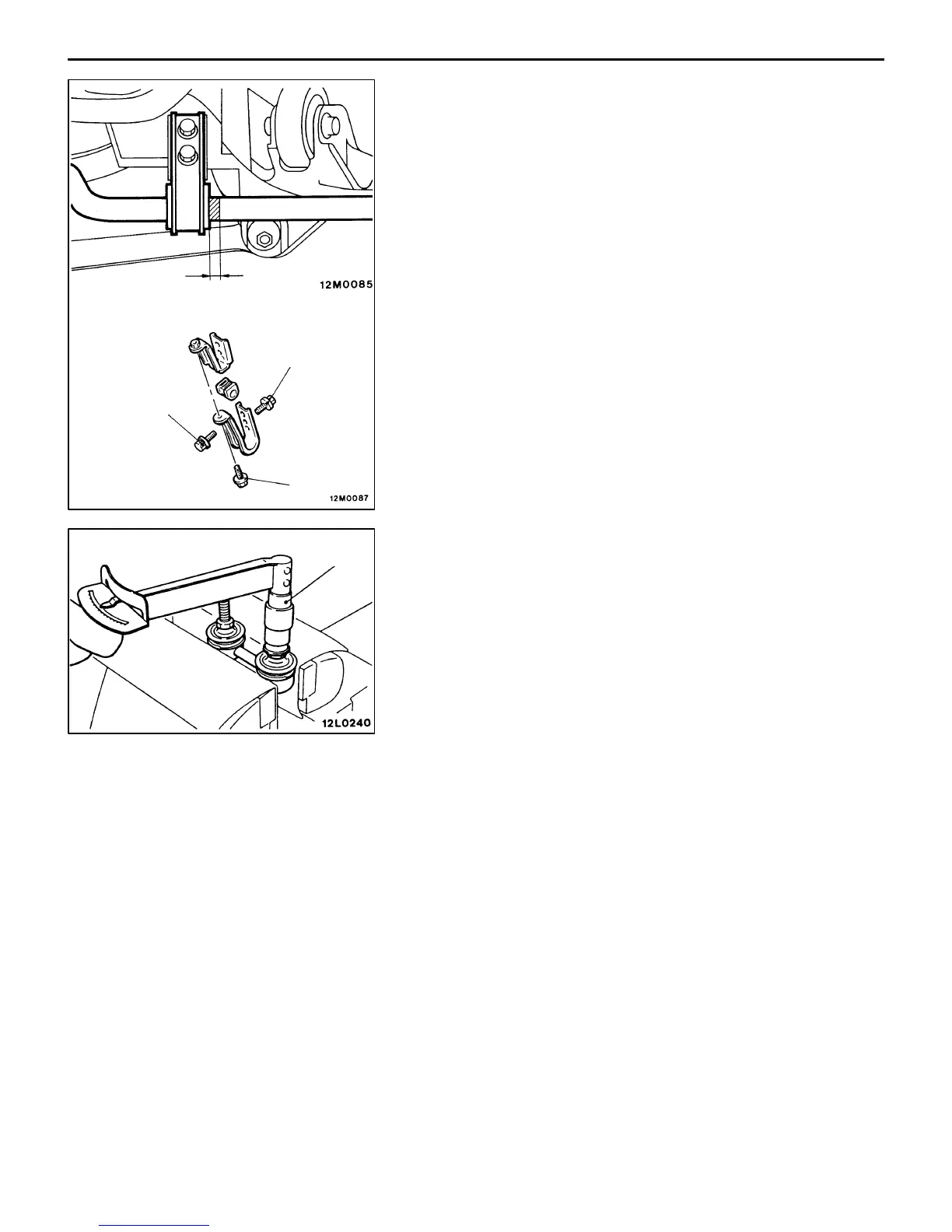

Position the stabilizer bar such that the identification mark
may protrude toward the vehicle center as shown in the figure,
and tighten first the stabilizer bar bracket mounting bolt 1
then the mounting bolt 2.
INSPECTION
1. STABILIZER LINK BALL JOINT TURNING TORQUE
CHECK
(1) After shaking the ball joint stud several times, install the
nut to the stud and use the special tool to measure the
turning torque of the ball joint.
Standard value: 1.7 – 3.1 Nm {17 – 32 kgf@cm}
(2) When the measured value exceeds the standard value,
replace the stabilizer link.
(3) When the measured value is lower than the standard
value, check that the ball joint turns smoothly without
excessive play. If so, it is possible to use that ball joint.
2. STABILIZER LINK BALL JOINT DUST COVER
CHECK
(1) Check the dust cover for cracks or damage by pushing
it with finger.
(2) If the dust cover is cracked or damaged, replace the
stabilizer link.
NOTE
Cracks or damage of the dust cover may cause damage
of the ball joint. When it is damaged during service work,
replace the dust cover.
Approx. 10 mm
2
2
1
MB990326
