ENGINE – Timing Belt
11-23

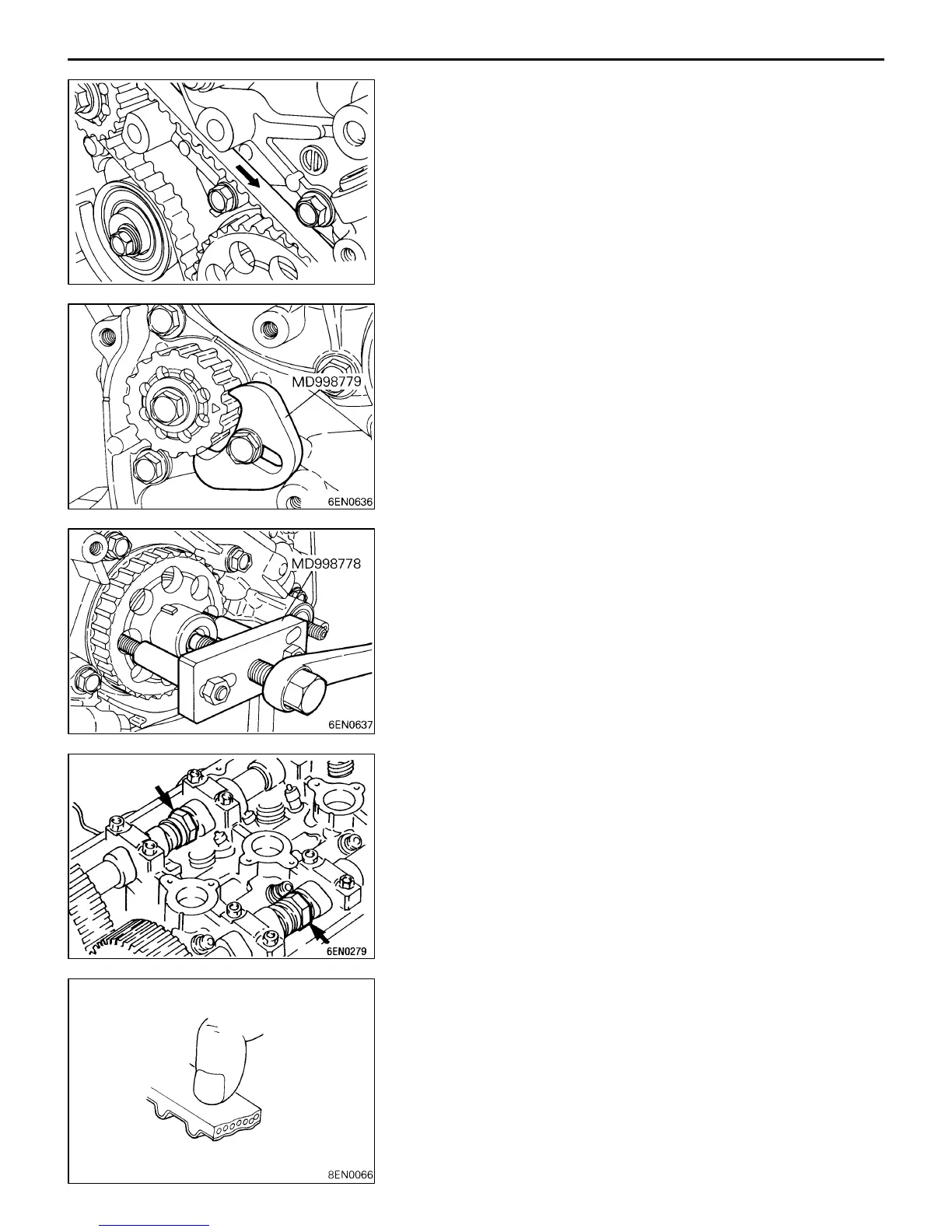

AE" TIMING BELT “B” REMOVAL
Make an arrow mark on the back of the timing belt indicating
the direction of rotation so it may be reassembled in the
same direction if it is to be reused.
AF" COUNTERBALANCE SHAFT SPROCKET
REMOVAL
AG" CRANKSHAFT SPROCKET “B” REMOVAL
If it is difficult to remove the sprocket, use the special tool.
AH" CAMSHAFT SPROCKET BOLT LOOSENING
Use a wrench to hold the hexagonal part of the camshaft,
and then remove the camshaft sprocket mounting bolt.
INSPECTION
TIMING BELT
Replace belt if any of the following conditions exist.
(1) Hardening of back rubber.
Back side is glossy without resilience and leaves no indent
when pressed with fingernail.
6EN1322
To Next Page
