BASIC BRAKE SYSTEM – Master Cylinder and Brake Booster
35A-8
DISASSEMBLY SERVICE POINTS

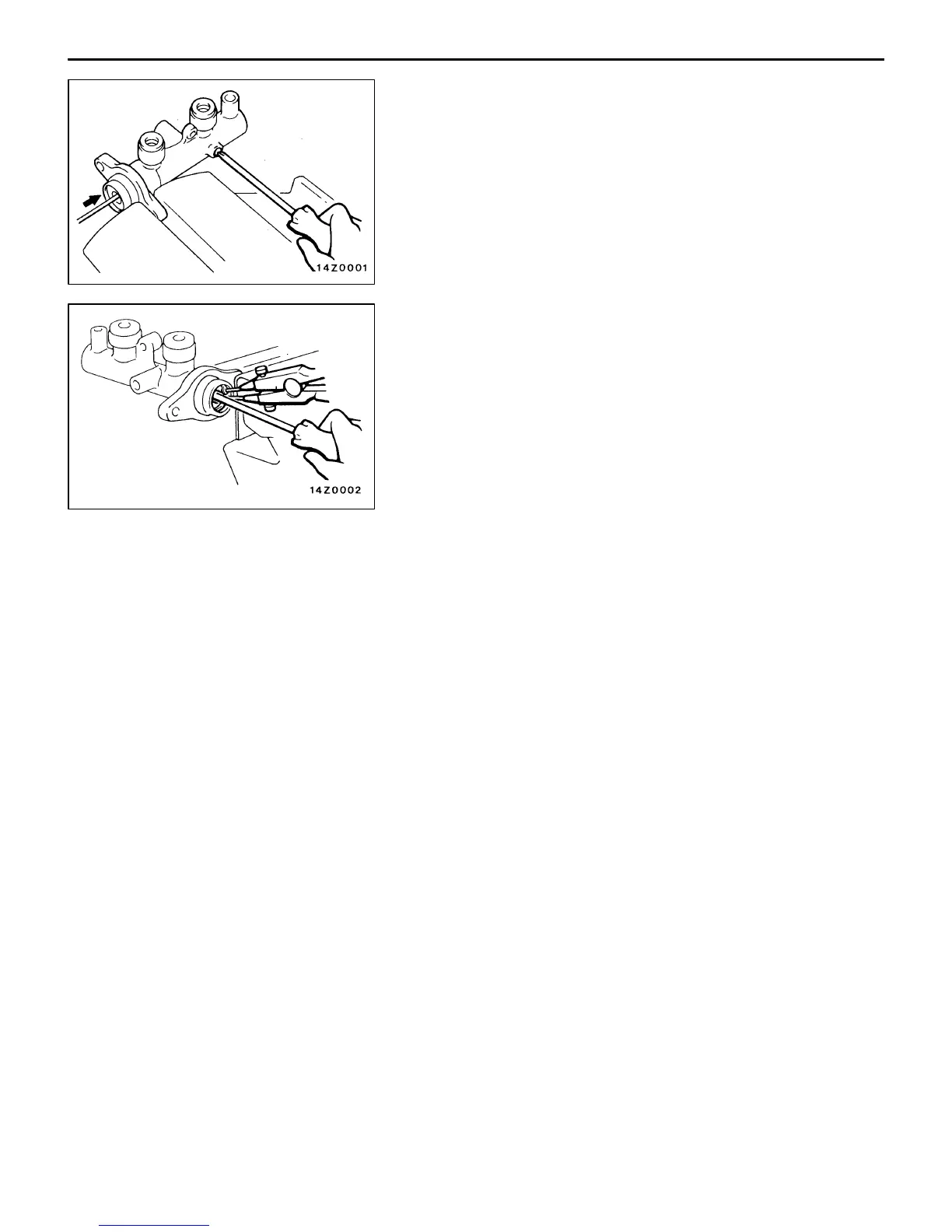

AA" PISTON STOPPER BOLT DISASSEMBLY
Remove the piston stopper bolt, while depressing the piston.
AB" PISTON STOPPER RING DISASSEMBLY
Remove the piston stopper ring, while depressing the piston.
INSPECTION
D Check the inner surface of master cylinder body for rust
or pitting.
D Check the primary and secondary pistons for rust, scoring,
wear, damage or wear.
D Check the diaphragm for cracks and wear.
