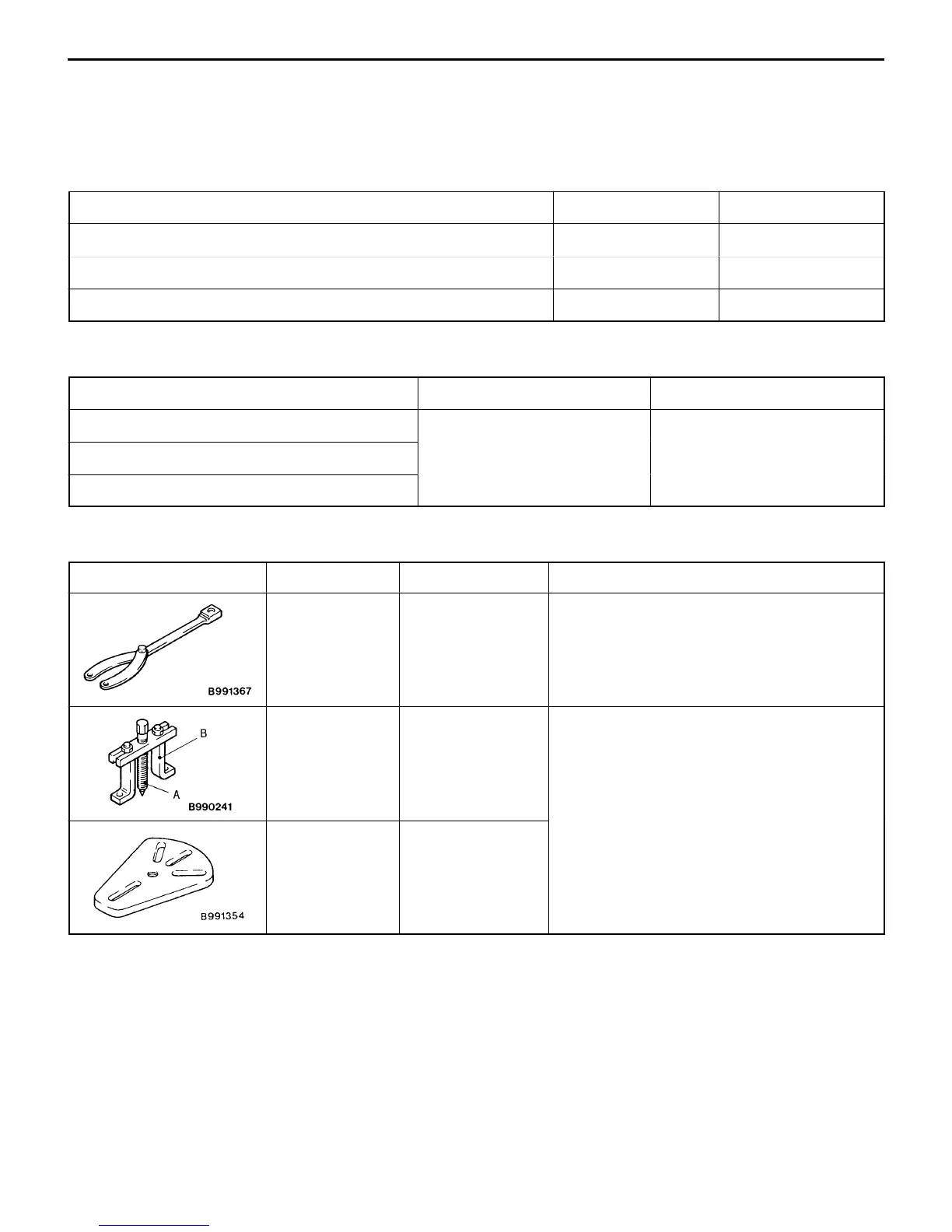

PARKING BRAKE – Service Specifications / Lubricants / Special Tools
36-2
The parking brake is designed as a drum-in-disc brake acting on the rear wheel. This brake is a little
different in construction between EVOLUTION-IV and EVOLUTION-V but much alike in the service procedure
of the parking brake section. In this group, therefore, the description is made only for EVOLUTION-IV.
SERVICE SPECIFICATIONS
Items Standard value Limit
Parking brake lever stroke (operating force approx. 196 N {20 kgf}) 5 – 7 notches –
Brake lining thickness mm 2.8 1.0
Brake drum I.D. mm 168 169
LUBRICANTS
Items Specified lubricant Quantity
Backing plate CHUO YUKA AKB100 As required
Shoe & lining assembly
Adjuster
SPECIAL TOOLS
Tool Number Name Use
MB990767 End yoke holder Fixing of hub
MB990241
A: MB990242
B: MB990244
Axle shaft puller
A: Puller shaft
B: Puller bar
Removal of drive shaft
MB991354 Puller body
