EXTERIOR – Front Bumper <EVOLUTION-IV>
51-3

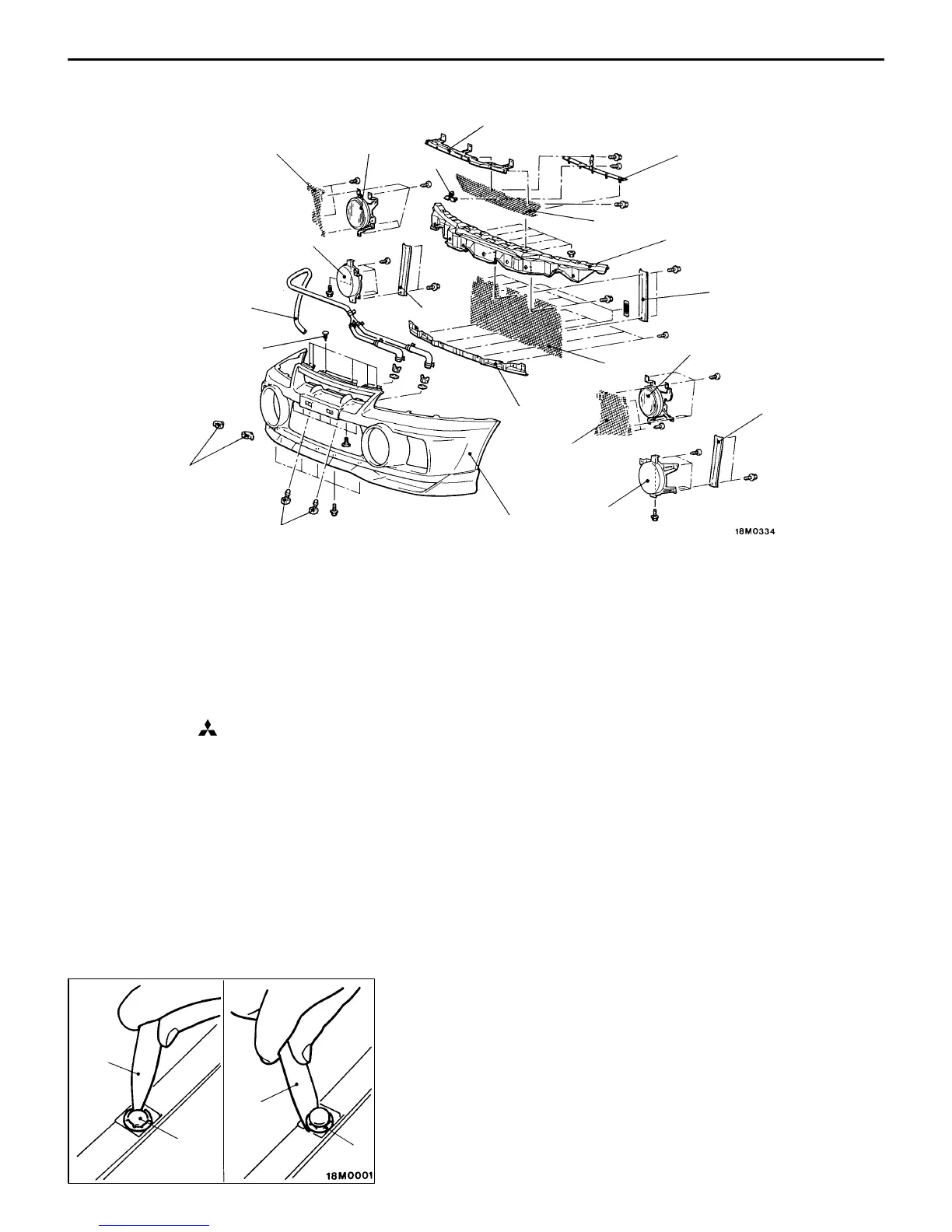

DISASSEMBLY AND REASSEMBLY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
6
5
7
4
Disassembly steps
D Front air dam (Refer to P.51-7.)
D Brake duct (Refer to P.51-7.)
1. License plate bracket
2. mark
3. Bumper center stay
4. Bumper center stay
<vehicles without fog lamps>
5. Bumper net (side)
6. Fog lamp cover
<vehicles without fog lamps>
7. Fog lamp
8. Bumper bolt plate
AA" 9. Clip
10. Bumper upper reinforcement
11. Grille net
12. Bumper lower reinforcement
13. Bumper reinforcement
14. Bumper center net
15. Water spray hose assembly
16. Water spray nozzle
17. Bumper face
DISASSEMBLY SERVICE POINT
AA" CLIP REMOVAL
(1) Using the special tool, raise the pin at the center of the
clip.
(2) Remove the clip.
Pin
Clip
MB990784
MB990784
