CHASSIS ELECTRICAL – Ignition Switch
54-12

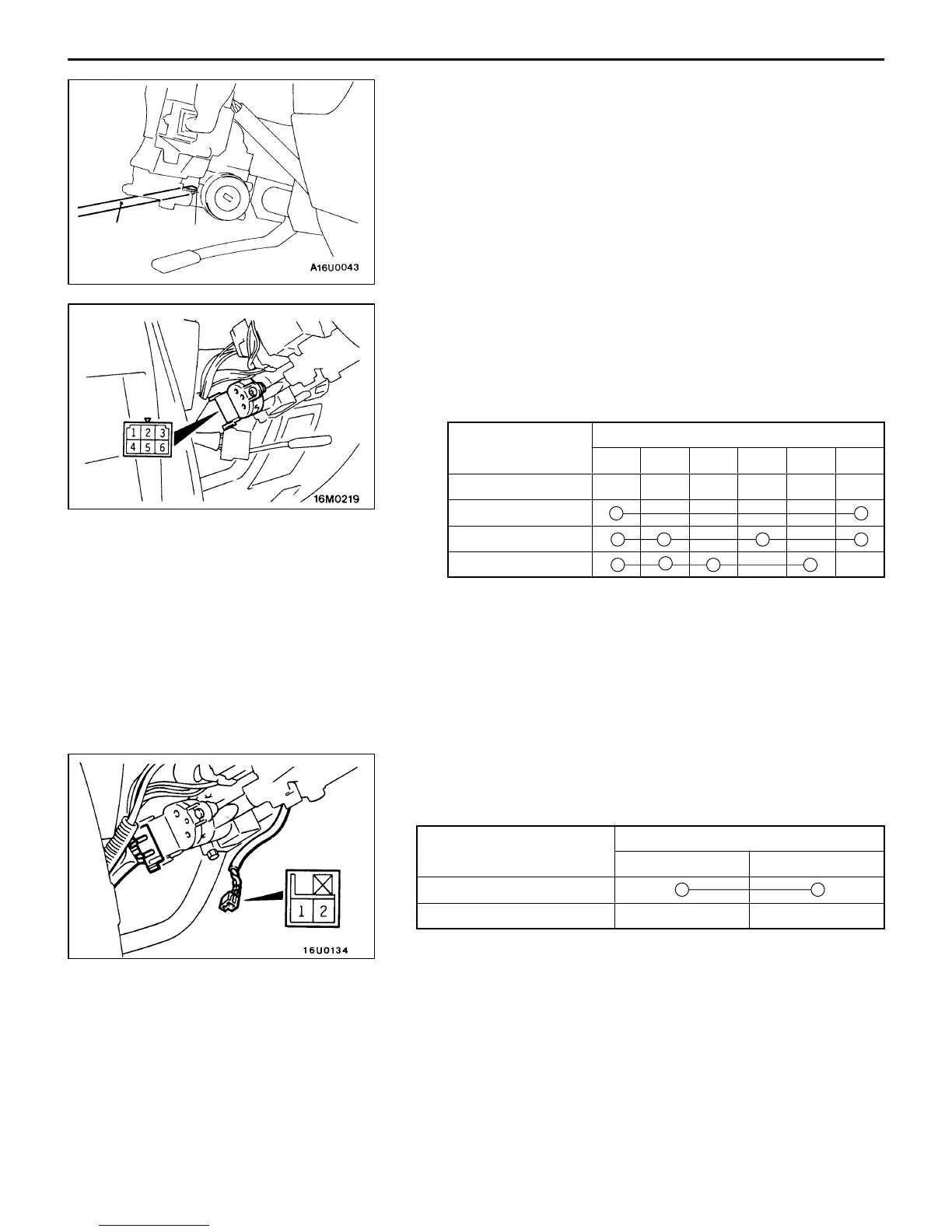

REMOVAL SERVICE POINT
AA" STEERING LOCK CYLINDER REMOVAL
1. Insert the key in the steering lock cylinder and turn it
to the “ACC” position.
2. Using a cross-tip (+) screwdriver (small) or a similar tool,
push the lock pin of the steering lock cylinder inward
and then remove the steering lock cylinder.
INSPECTION
IGNITION SWITCH CONTINUITY CHECK
Disconncect the ignition switch connector without removing
the ignition switch from the vehicle. Then, check the continuity
between the following terminals.
I
g
nition ke
y
Terminal No.
Ignition
key
position
1 2 3 4 5 6
LOCK
ACC
ON
START
KEY REMINDER SWITCH CONTINUITY CHECK
Disconnect the key reminder switch connector with the switch
installed on the vehicle, and then check continuity.
Ignition key Terminal No.
1 2
Removed
Inserted
Cross-tip (+)
screwdriver
Lock pin
