ENGINE LUBRICATION – Lubricants / Engine Oil Cooler
12-2
TSB Revision
LUBRICANTS
Items Capacity dm
3
{ȏ}
Engine oil Quantity in oil filter 0.3 {0.3}
Quantity in oil cooler 0.16 {0.16}
Total quantity 5.1 {5.1}
Brand DIA QUEEN MOTOR OIL (Grade SG or higher); or engine oil in
a can marked with ILSAC certification.

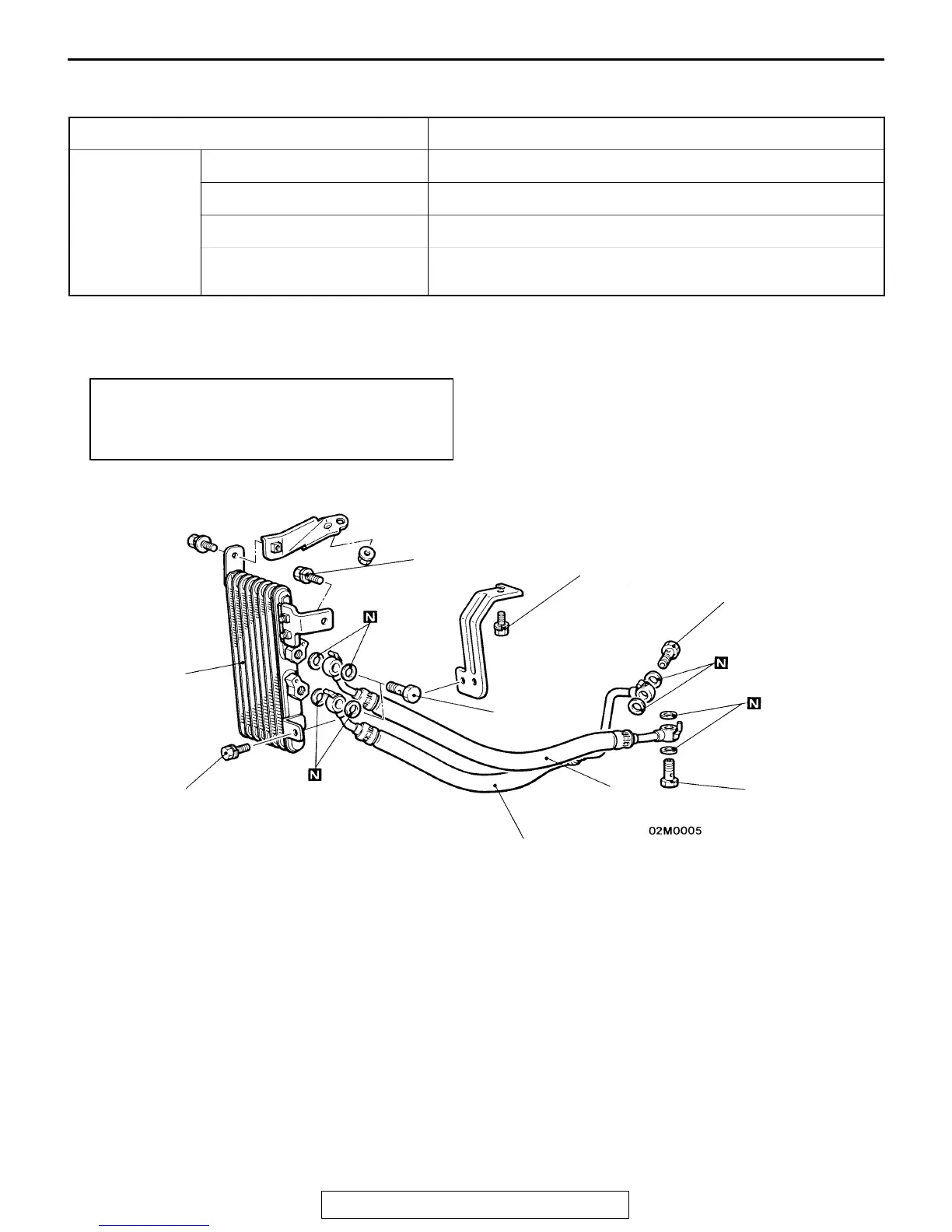

ENGINE OIL COOLER
REMOVAL AND INSTALLATION
Pre-removal and Post-installation Operation
(1) Engine Oil Removal and Refilling
(2) Front Bumper Removal and Installation
(Refer to GROUP 51.)
3
Unit: Nm {kgf@m}
12 {1.2}
39 – 44
{4.0 – 4.5}
29 – 34
{3.0 – 3.5}
2
1
39 – 44
{4.0 – 4.5}
12 {1.2}
12 {1.2}
Removal steps
1. Engine oil cooler
"AA 2. Feed hose assembly
"AA 3. Return hose assembly
INSTALLATION SERVICE POINT
"AA FEED HOSE ASSEMBLY / RETURN HOSE
ASSEMBLY INSTALLATION
Fit the hose joint positioning tab into the hole in oil cooler
to secure the hose assembly in position.
