ENGINE COOLING – Radiator
14-8
REMOVAL SERVICE POINTS
AA" RADIATOR UPPER HOSE / RADIATOR LOWER
HOSE DISCONNECTION
After making mating marks on the radiator hose and the hose
clamp, disconnect the radiator hose.
INSTALLATION SERVICE POINT
"AA RADIATOR LOWER HOSE / RADIATOR UPPER
HOSE CONNECTION
(1) Insert each hose as far as the projection of the water
inlet or outlet fitting.
(2) Align the mating marks on the radiator hose and hose
clamp, and then connect the radiator hose.
Caution
Fit the clamp on the hose at the same position as
before.
INSPECTION

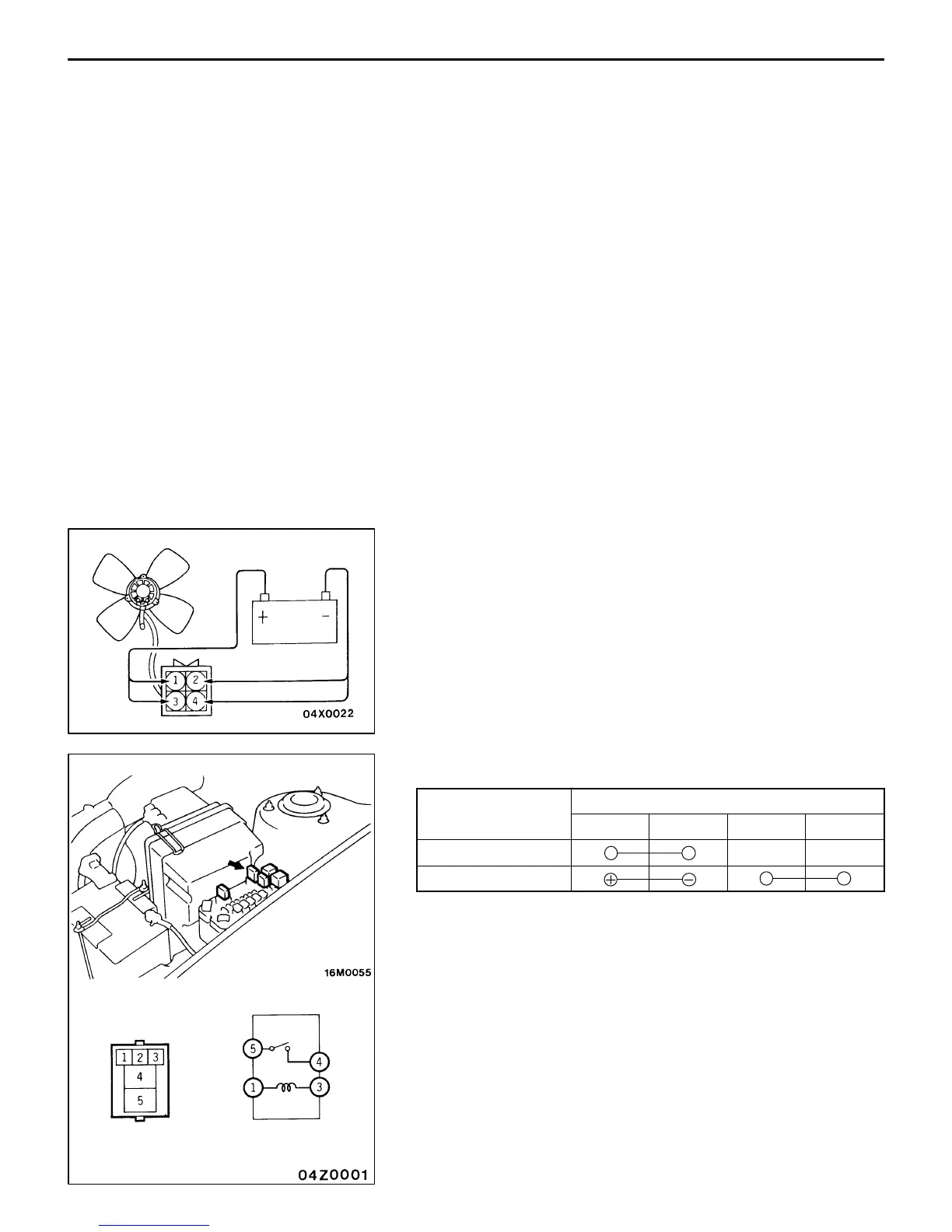

1. RADIATOR FAN MOTOR CHECK
Apply the battery voltage across connector terminals 1 and
2, and terminals 3 and 4, of the radiator fan motor and check,
at that time, that the radiator fan turns.
2. POWER RELAY CONTINUITY CHECK
Battery voltage Terminal number
1 3 4 5
When deenergized
When energized
Radiator fan motor relay LO
