Mitsubishi Lancer Evolution VI User Manual

ENGINE – Alternator
11-81

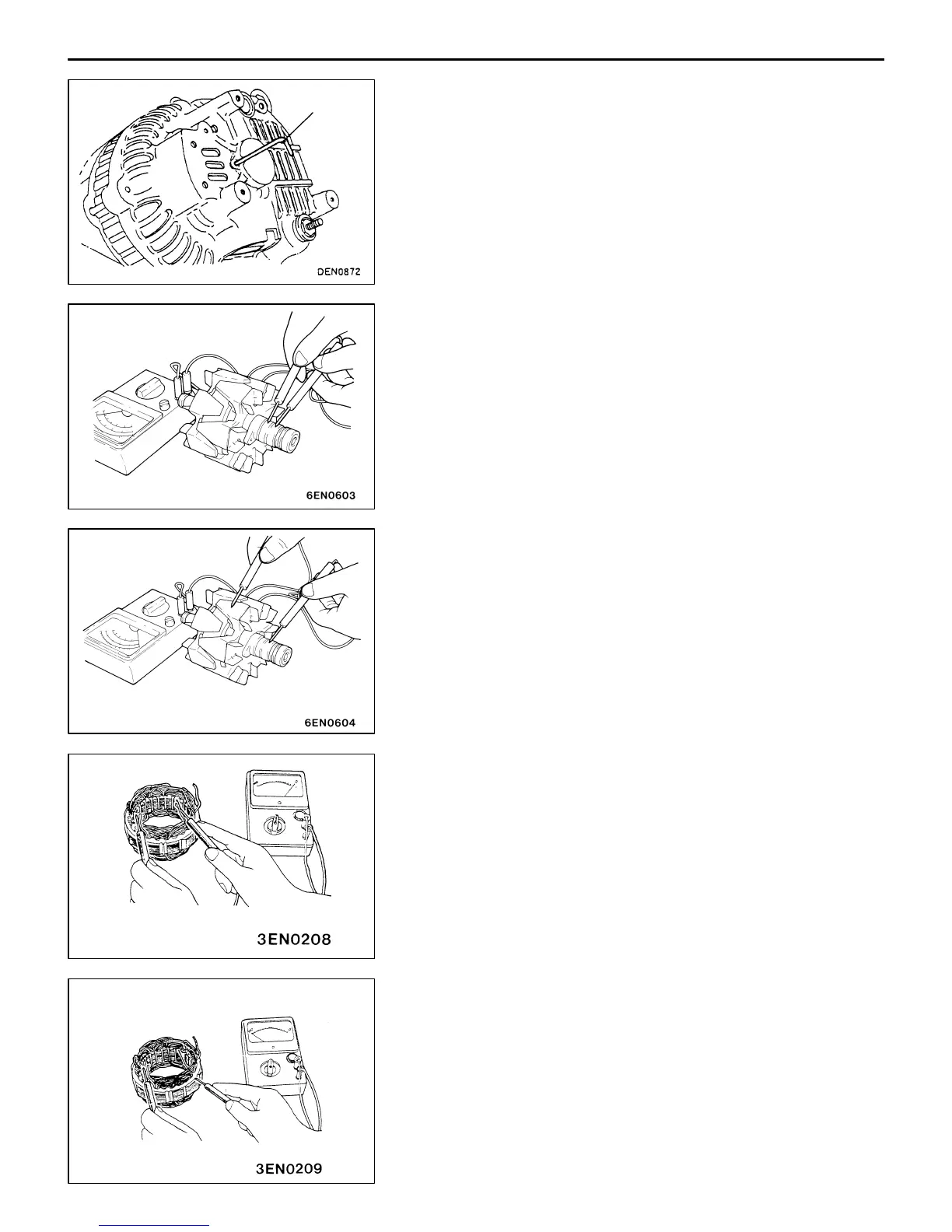

"BA ROTOR INSTALLATION
After installing the rotor, remove the wire used to fix the brush.
INSPECTION
ROTOR CHECK
(1) Check the continuity between the rotor coil slip rings,
and replace the rotor if the resistance value is not at
the standard value.
Standard value: 3 – 5 Ω
(2) Check the continuity between the slip ring and core, and
if there is continuity, replace the rotor.
STATOR CHECK
(1) Check the continuity between the coil leads, and if there
is continuity, replace the stator.
(2) Check the continuity between the coil and core, and if
there is continuity, replace the stator.
Wire

Mitsubishi Lancer Evolution VI Specifications

General

Transmission	5-speed manual
Drivetrain	All-Wheel Drive
Engine Code	4G63
Compression Ratio	8.8:1
Fuel System	Multi-point Fuel Injection
Front Brakes	Ventilated discs
Rear Brakes	Ventilated discs
Wheelbase	2510 mm
Length	4350 mm
Width	1770 mm
Height	1415 mm
Engine Type	Inline 4
Horsepower	276 hp
Torque	275 lb-ft @ 3000 rpm
Top Speed	155 mph (electronically limited)
Displacement	1997 cc
Bore x Stroke	85.0 mm x 88.0 mm
Maximum Power	276 hp @ 6500 rpm
Maximum Torque	373 N⋅m (275 lb⋅ft) @ 3000 rpm
Front Suspension	MacPherson strut
Rear Suspension	Multi-link
Curb Weight	1360 kg
Fuel Tank Capacity	50 L
