FULL-AUTOMATIC AIR CONDITIONER –
Outside Air Temperature
Sensor
55-62

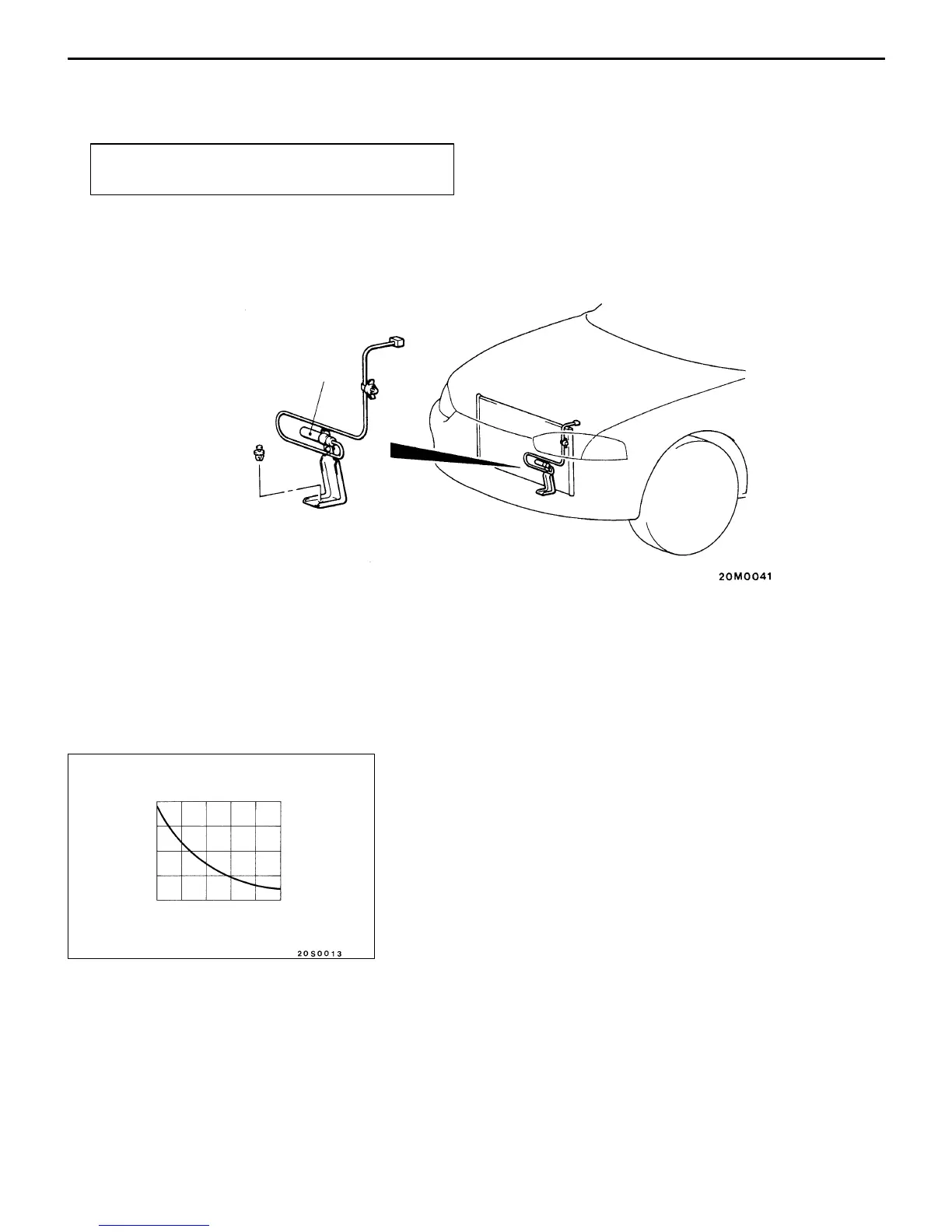

OUTSIDE AIR TEMPERATURE SENSOR
REMOVAL AND INSTALLATION
Pre-removal and Post-installation Operation
D Radiator Grille Removal and Installation
Outside air temperature sensor
INSPECTION
When the resistance value between the sensor terminals is
measured under two or more temperature conditions, the
resistance value should be close to the values shown in the
graph.
NOTE
The temperature conditions when testing should not exceed
the range of the characteristic curve in the graph.
Resistance kΩ
Temperature _C
20
15
10
0
5
–10 0 4020 3010
