CLUTCH –
General / Service Specifications /
Lubricants / On-vehicle Service
21A-2
GENERAL
OUTLINE OF CHANGE
D The service procedures for left-hand drive vehicles have been established as described below.
SERVICE SPECIFICATIONS <L.H. DRIVE VEHICLES>
Items Standard value
Clutch pedal height mm 163.5–166.5
Clutch pedal clevis pin play mm 1–3
Clutch pedal free play mm 6–13
Distance between the clutch pedal and the toeboard when
the clutch is disengaged mm
85 or more
LUBRICANTS <L.H. DRIVE VEHICLES>
Items Specified lubricants Quantity
Clutch fluid Brake fluid DOT 3 or DOT 4 As required
Push rod assembly Rubber grease
Boot
Release cylinder push rod MITSUBISHI genuine grease
Part No. 0101011
ON-VEHICLE SERVICE
<L.H. DRIVE VEHICLES>

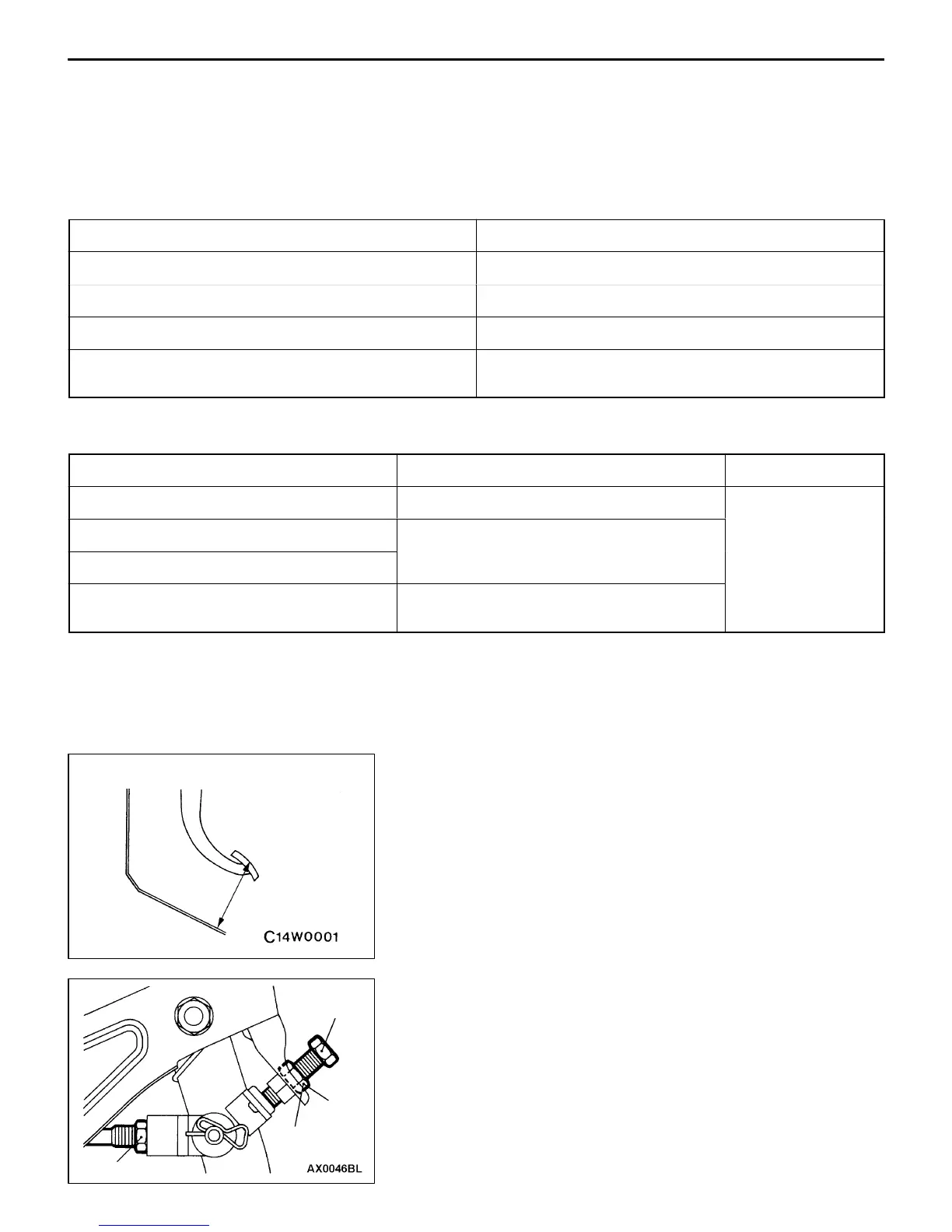

CLUTCH PEDAL INSPECTION AND
ADJUSTMENT
1. Turn up the carpet, etc. under the clutch pedal.
2. Measure the clutch pedal height.
Standard value (A): 163.5 – 166.5 mm
3. If the height of the clutch pedal is outside the standard
value, loosen the locking nut and adjust the pedal height
to the standard value using the adjusting bolt or push
rod.
Clutch pedal height
A
Setting nut
Adjusting bolt
Locking
nut
13 Nm
