HEATER AND MANUAL
AIR CONDITIONER
55-20

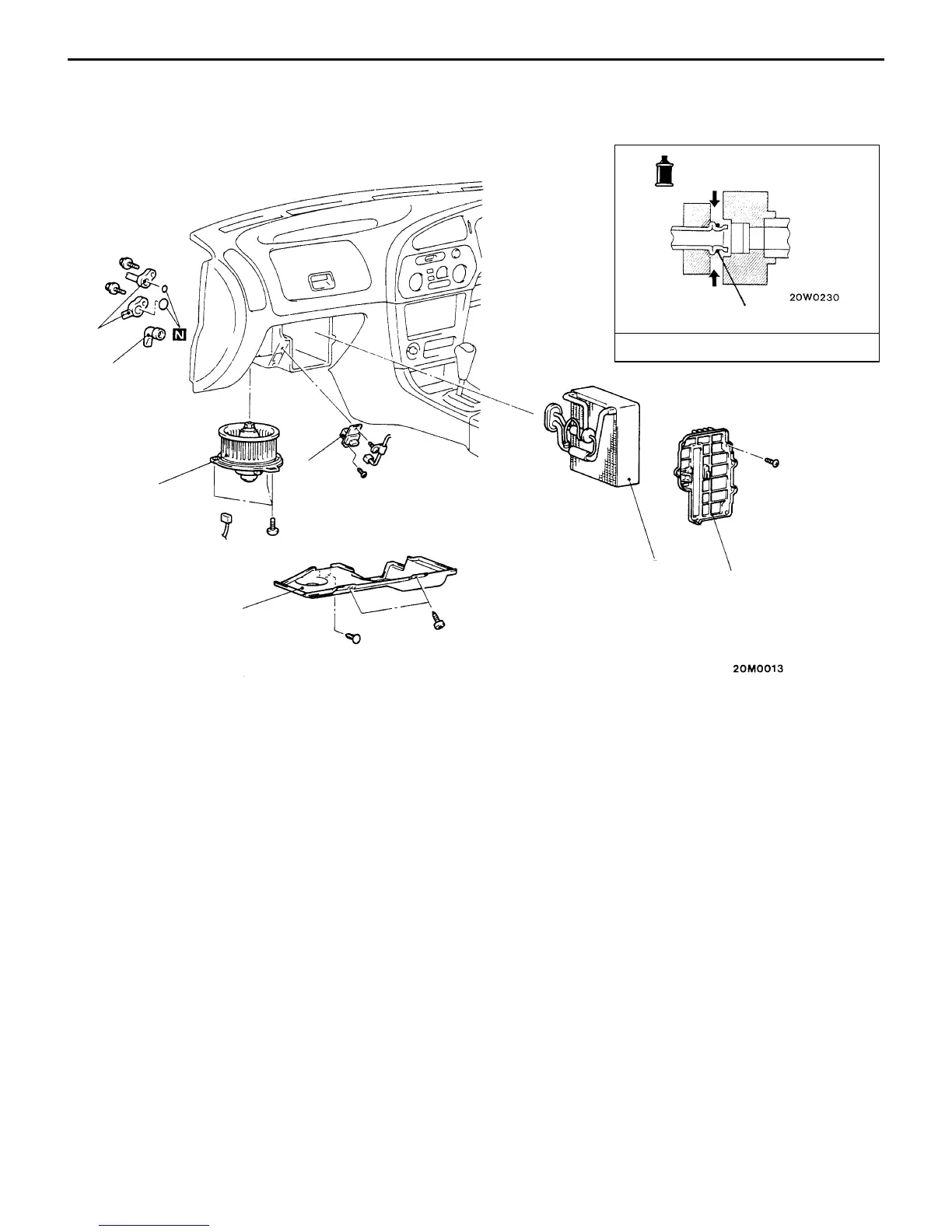

BLOWER MOTOR ASSEMBLY, RESISTOR AND EVAPORATOR
REMOVAL AND INSTALLATION
4
6
2
1
5
3
7
Piping connection
O-ring
A/C Compressor oil: SUN PAG 56
Blower motor assembly removal
steps
1. Under cover
<Vehicles for cold regions>
2. Blower motor assembly
Resistor removal steps
1. Under cover
<Vehicles for cold regions>
D Glove box, glove box frame
3. Resistor
Evaporator removal steps
<Vehicles with A/C>
D Discharging and Charging of
refrigerant (Refer to P.55-6.)
D Glove box, glove box frame
4. Drain hose
AA" 5. Connection between evaporator
and refrigerant line
AB" 6. Case cover
AB" 7. Evaporator
REMOVAL SERVICE POINT
AA" REMOVAL OF REFRIGERANT LINE FROM
EVAPORATOR
Plug the open end of the removed hose and the opening
in the evaporator to prevent entry of dust and foreign
substances.
Caution
Compressor oil and the receiver are highly
moisture-absorptive.
Do not use plugs allowing ventilation.
To Next Page
