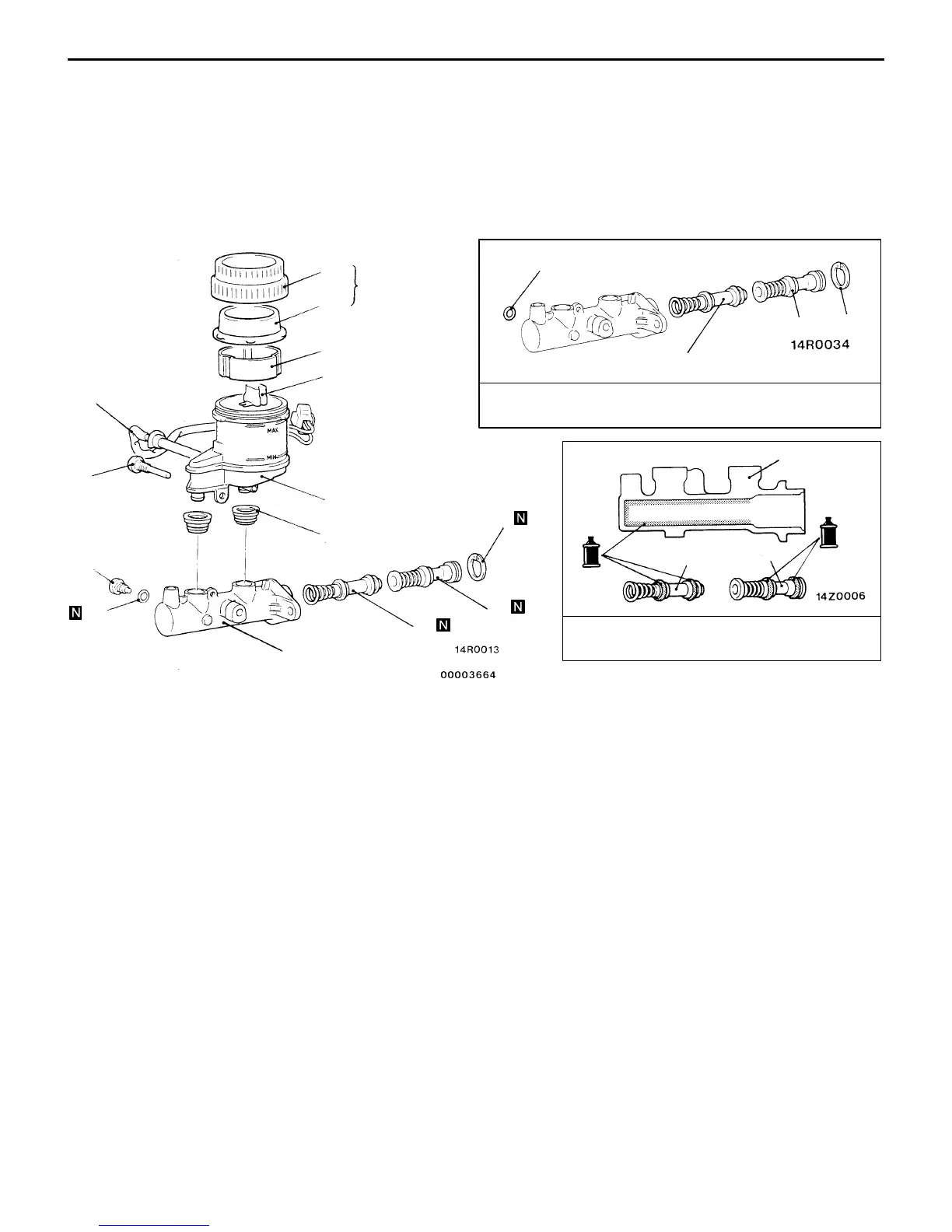

MASTER CYLINDER
DISASSEMBLY AND REASSEMBLY
Master cylinder kit
11
14
13
12
14
13
15
1
4
2
3
6
8
9
5
7
10
12
15
13
14
Brake fluid: DOT3 or DOT4
11
Disassembly steps
1. Reservoir cap assembly
2. Reservoir cap
3. Diaphragm
4. Filter
5. Brake fluid level sensor
6. Float
7. Reservoir stopper bolt
8. Reservoir tank
9. Reservoir seal
AA" 10. Piston stopper bolt
11. Gasket
AB" 12. Piston stopper ring
13. Primary piston assembly
14. Secondary piston assembly
15. Master cylinder body
