ENGINE – Water Pump and Water Hose
11-34

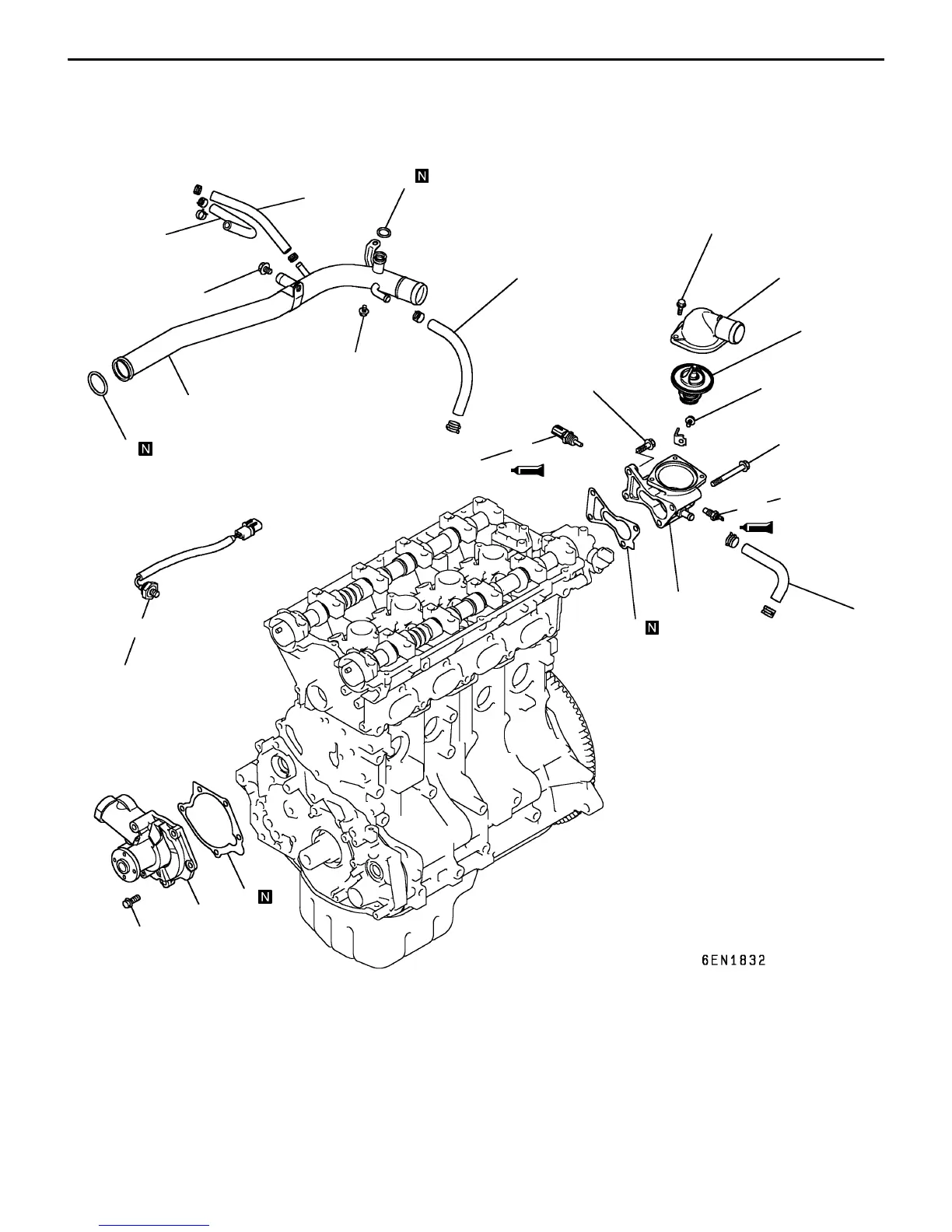

WATER PUMP AND WATER HOSE
REMOVAL AND INSTALLATION <EVOLUTION VI>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
14 Nm
10 Nm
22 Nm
11 Nm
11 Nm
24 Nm
24 Nm
29 Nm
9.8 Nm
13 Nm
Removal steps
1. Water hose
2. Water hose
3. Water hose
4. Water hose
"EA 5. Water temperature sensor
"DA 6. Water temperature gauge unit
7. Thermostat
8. Water outlet fitting
9. Thermostat housing
10. Thermostat housing gasket
"AA 11. O-ring
"AA 12. Water inlet pipe
"AA 13. O-ring
14. Water pump
15. Water pump gasket
16. Knock sensor
