BODY – Sunroof
42-14

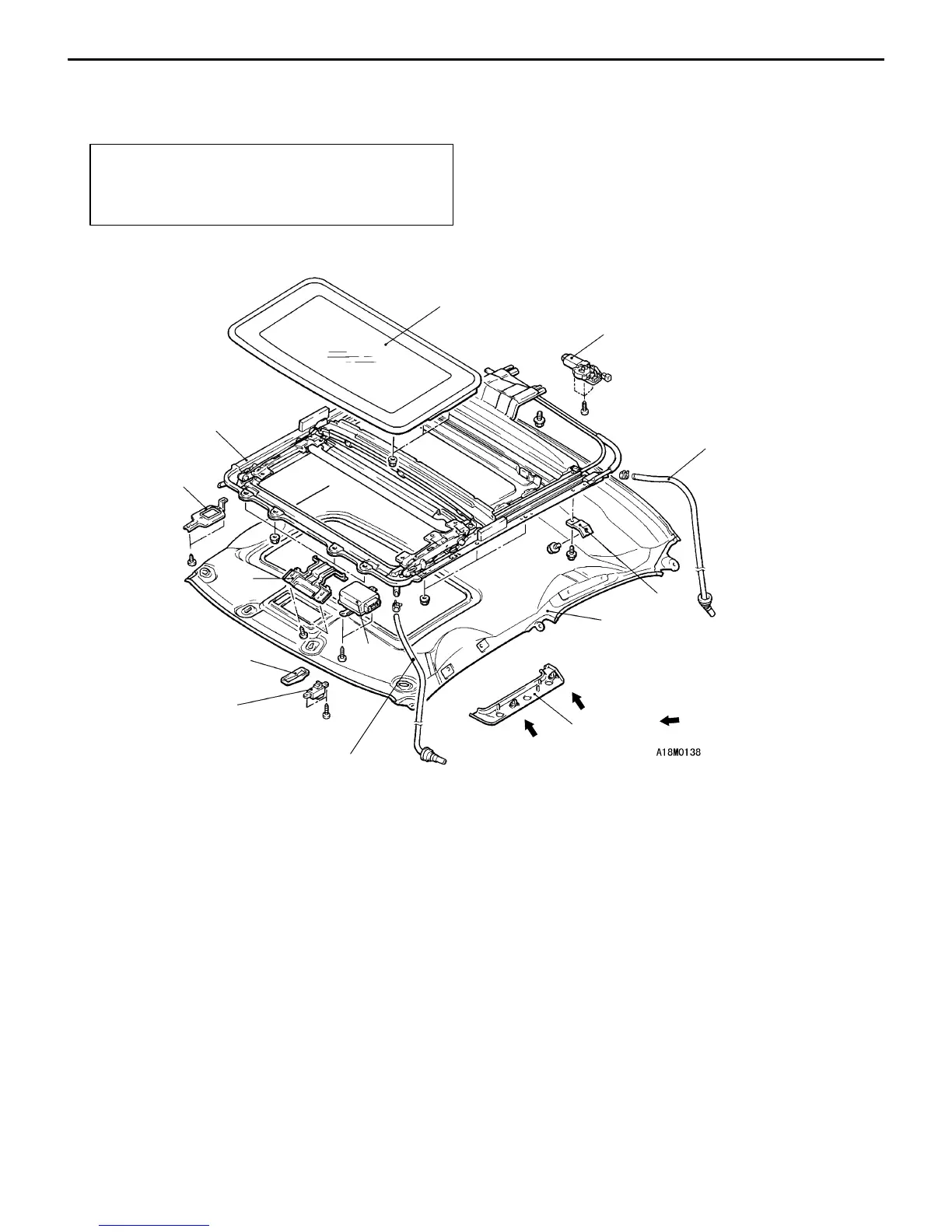

SUNROOF
REMOVAL AND INSTALLATION
Post-installation Operation
<Roof lid glass assembly, Sunroof assembly>
D Sunroof Water Test (Refer to P.42-13.)
D Sunroof Fit Adjustment (Refer to P.42-13.)
1
2
3
4
5
6
9
10
11
12
8
NOTE
:Clip position
7
6
Roof lid glass assembly removal
steps
AA" 1. Side decoration cover
2. Roof lid glass assembly
Sunroof switch removal steps
3. Sunroof switch cover
4. Sunroof switch
Drain hose removal steps
D Splash shield (Front drain hose)
5. Headlining
AB""BA 6. Drain hose
Sunroof-ECU removal steps
5. Headlining
7. Sunroof-ECU
Sunroof motor removal steps
5. Headlining
AC""AA 8. Sunroof motor
Sunroof assembly removal steps
5. Headlining
6. Drain hose connection
9. Room lamp bracket
10. Sunroof switch bracket
11. Set bracket
12. Sunroof assembly
