– Heater Control Assembly and A/C Switch
HEATER AND MANUAL
AIR CONDITIONER
55-15
HEATER CONTROL ASSEMBLY AND A/C SWITCH
REMOVAL AND INSTALLATION
Pre-removal and Post-installation Operation
D Instrument Lower Panel and Heater Control Panel
Removal and Installation
D Floor Console Assembly Removal and Installation
D Foot Duct Removal and Installation
(Refer to P.55-31.)
3
4
1
2
5

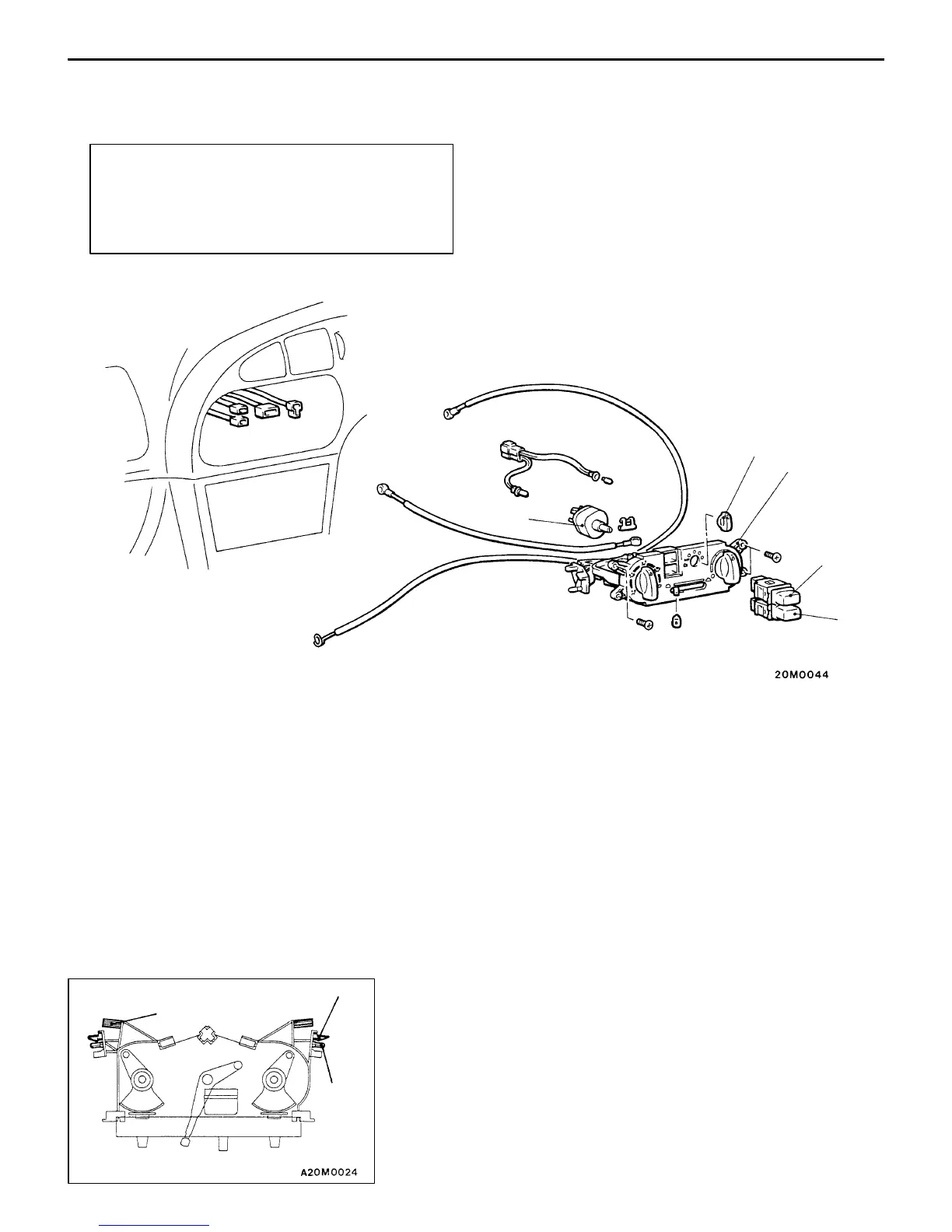

Removal steps
AA""AA 1. Heater control assembly
2. Rear window defogger switch
3. A/C switch
4. Knob
5. Blower switch
REMOVAL SERVICE POINT
AA" HEATER CONTROL ASSEMBLY REMOVAL
1. Remove the heater control assembly mounting screws.
2. Bend the clamp and the bosses (2 each side), which
are inserted into the centre reinforcement.
3. Remove the heater control assembly.
Clamp
Boss
Boss
