– Heater Control Assembly and A/C Switch
HEATER AND MANUAL
AIR CONDITIONER
55-16
INSTALLATION SERVICE POINT

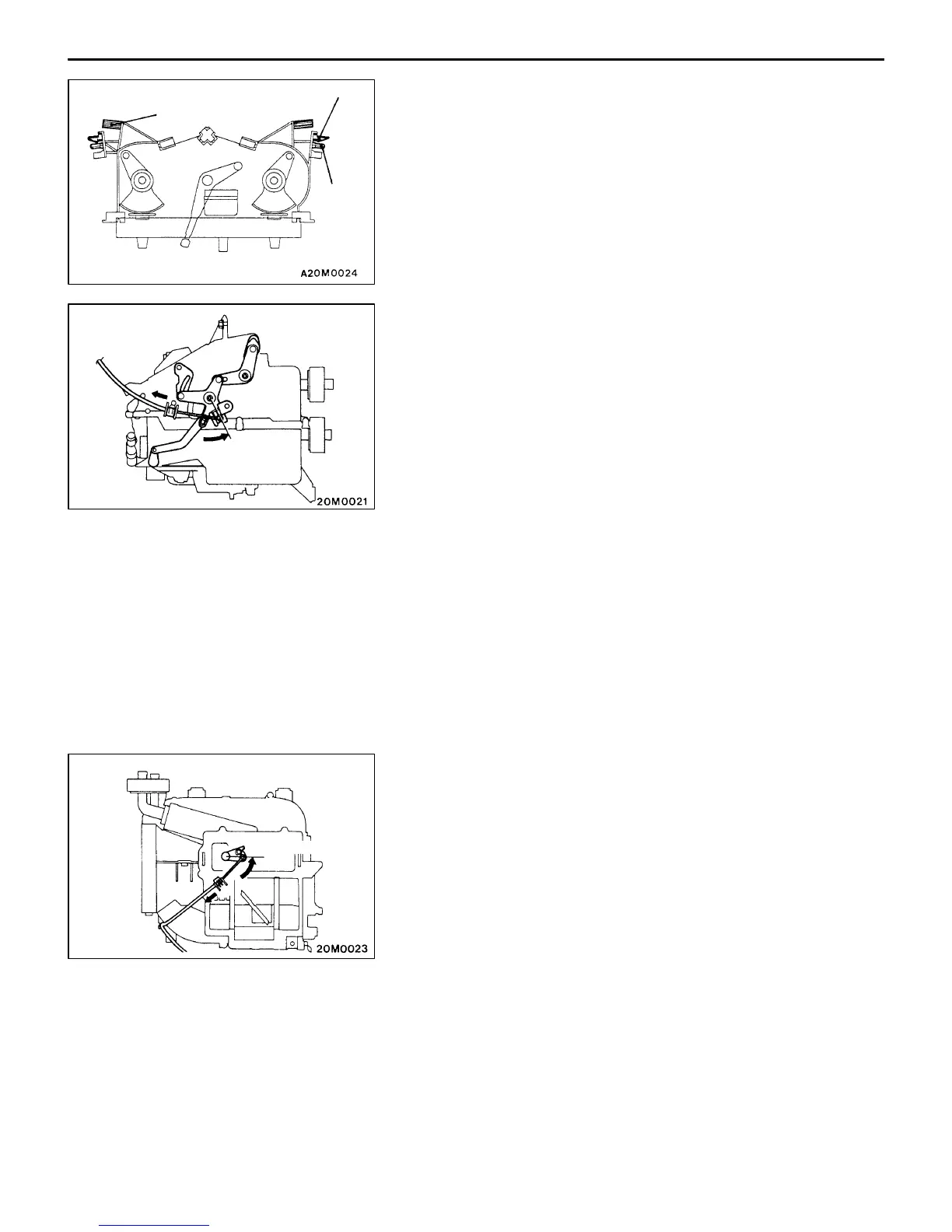

"AA HEATER CONTROL ASSEMBLY INSTALLATION
1. Cut off the bosses and clamp shown before installing
a new heater control assembly.
2. Install the heater control assembly mounting screws.
3. Follow the steps below to install the air outlet changeover
damper lever cable.
(1) Set the air outlet changeover link of the heater unit
to the DEF position.
(2) Set the air outlet changeover control knob on the
heater control assembly to the DEF position.
(3) After inserting the inner cable into the link, pull the
outer cable to the heater control assembly side and
then fasten the outer cable to the clip of the heater
unit.
(4) After installation, operate the heater control knob to
check if the mode changeover can be accomplished
smoothly.
4. Follow the steps below to install the air mix damper lever
cable.
(1) Set the air mix damper link on the heater unit to
the MAX HOT position.
(2) Set the air mix damper knob of the heater control
assembly to the MAX HOT position.
(3) After inserting the inner cable into the link, pull the
outer cable to the heater control assembly side and
then fasten the outer cable to the clip of the heater
unit.
(4) After installation, operate the heater control knob to
check if the air mix damper can be actuated smoothly.
Clamp
Boss
Boss
DEF
position
MAX HOT position
To Next Page
