CHASSIS ELECTRICAL – HeadlampCHASSIS ELECTRICAL – Headlamp
54-36
4. After the bulb is replaced, reinstall the socket cover with
the TOP mark facing upward.
NOTE
To prevent the clouding of lens and ingress of water into
the lamp unit, install the socket cover correctly.
POSITION LAMP BULB REPLACEMENT
Remove the position lamp by turning it together with the lamp
socket, then replace its bulb.

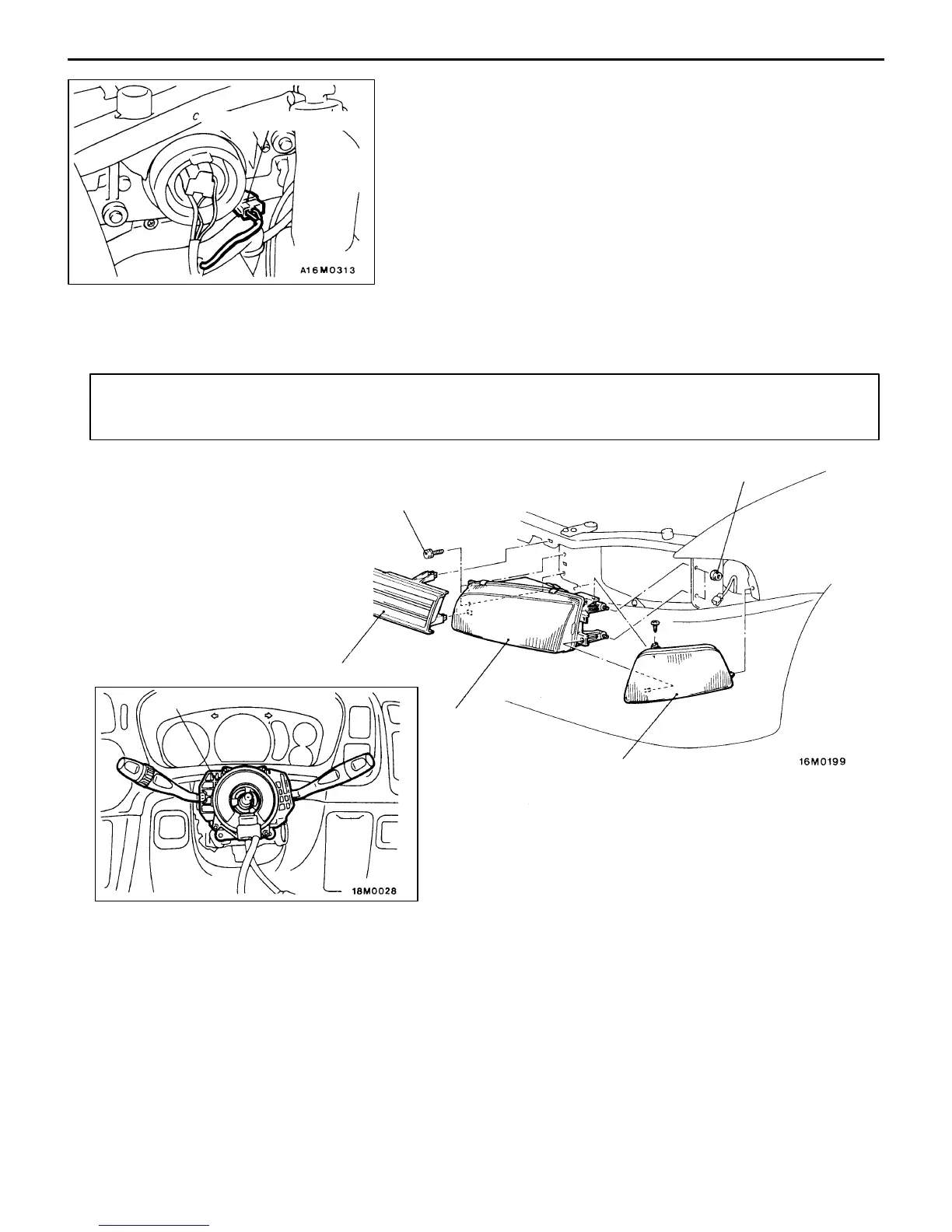

HEADLAMP AND FRONT TURN-SIGNAL LAMP
REMOVAL AND INSTALLATION
CAUTION: SRS
Before removal of air bag module and clock spring, refer to GROUP 52B – SRS Service Precautions and Air
Bag Module and Clock Spring.
5 Nm
2
3
4
5 Nm
1
1. Column switch Removal steps
AA" 2. Front turn-signal lamp
3. Radiator grille
"AA 4. Headlamp
Position lamp connector
To Next Page
