CLUTCH – Clutch Control
21A-6

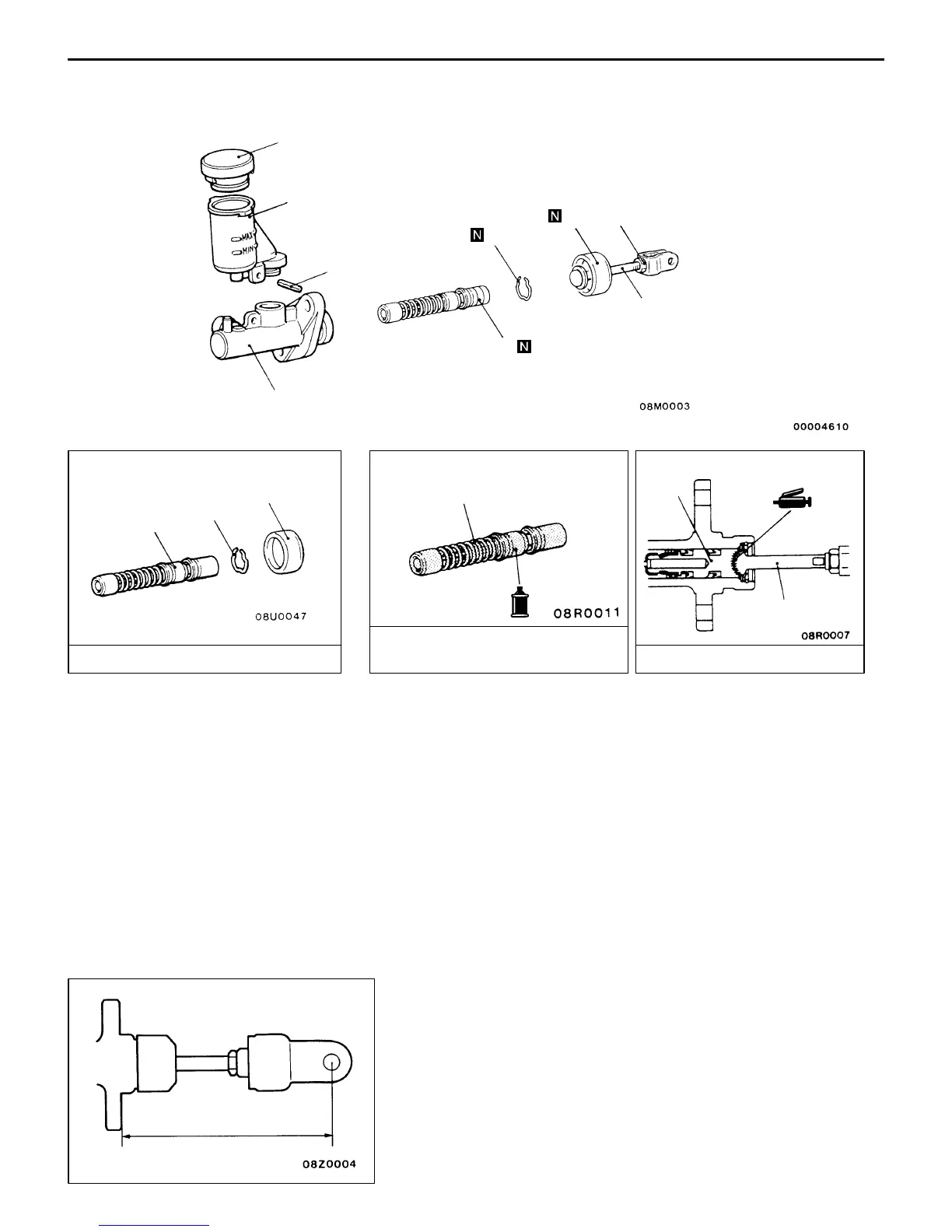

DISASSEMBLY AND REASSEMBLY
CLUTCH MASTER CYLINDER
13 Nm
6
7
3
1
2
Piston repair kit
Clutch fluid:
Brake fluid DOT3 or DOT4
Grease: Rubber grease
2
5
4
4
1
3
4
4
8
Disassembly steps
1. Piston stopper ring
"AA 2. Push rod assembly
3. Boot
4. Piston assembly
5. Reservoir cap
6. Spring pin
7. Reservoir tank
8. Clutch master cylinder body
Caution
Do not disassemble piston assembly.
INSTALLATION SERVICE POINT
AA" PUSH ROD ASSEMBLY INSTALLATION
Set the length of the push rod assembly to the shown
dimension to make the adjustment of the clutch pedal easier.
122.5 mm
