ENGINE – Piston and Connecting Rod
11-59

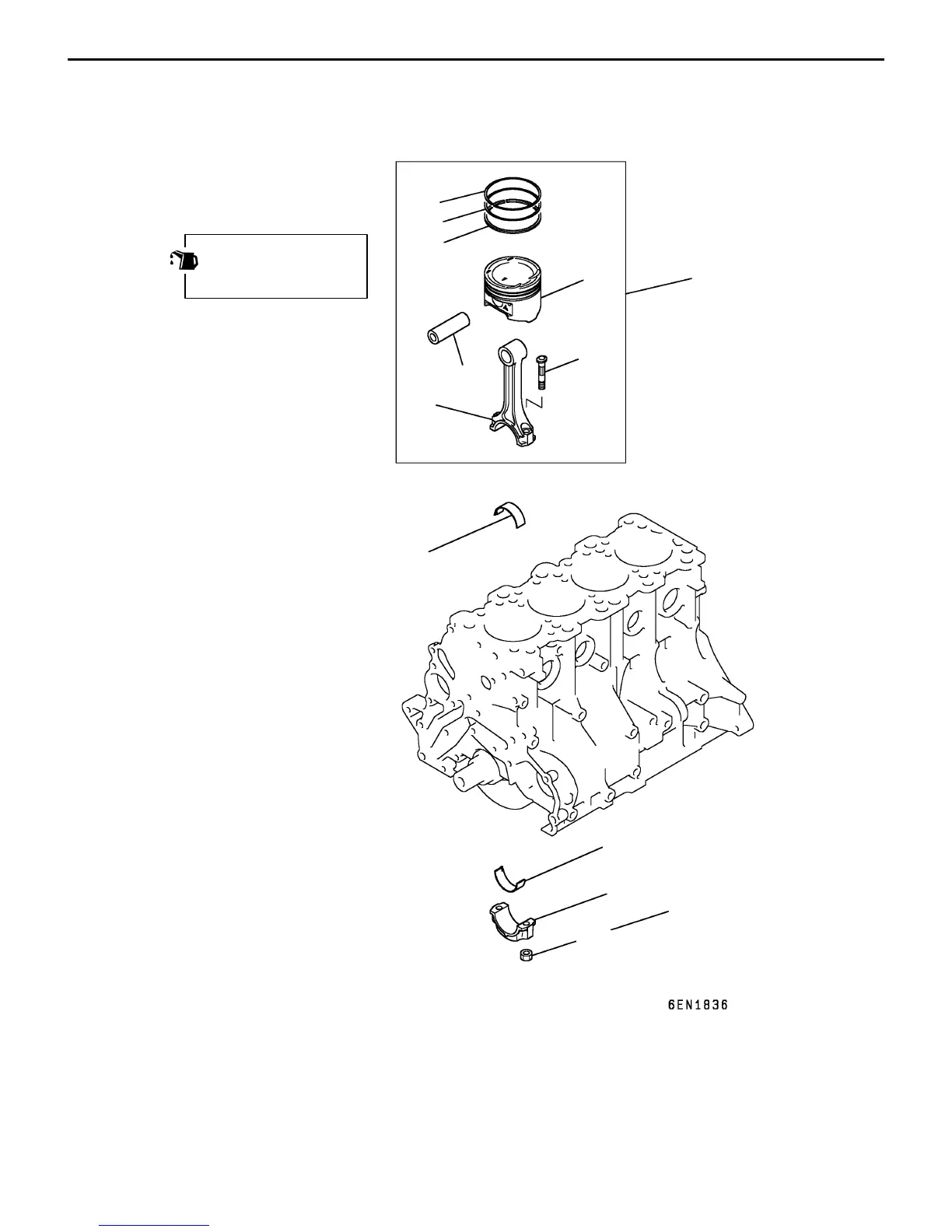

PISTON AND CONNECTING ROD
REMOVAL AND INSTALLATION
Apply engine oil to all
moving parts before
installation.
1
2
3
4
5
6
7
8
9
10
11
12
20 Nm + 90_ to 94_
Removal steps
"GA 1. Connecting rod nut
AA""FA 2. Connecting rod cap
"EA 3. Connecting rod bearing
"DA 4. Piston and connecting rod assem-
bly
5. Connecting rod bearing
"CA 6. Piston ring No. 1
"CA 7. Piston ring No. 2
"BA 8. Oil ring
AB""AA 9. Piston pin
10. Piston
11. Connecting rod
12. Bolt
To Next Page
