ENGINE – Fuel and Emission Control Parts
11-27

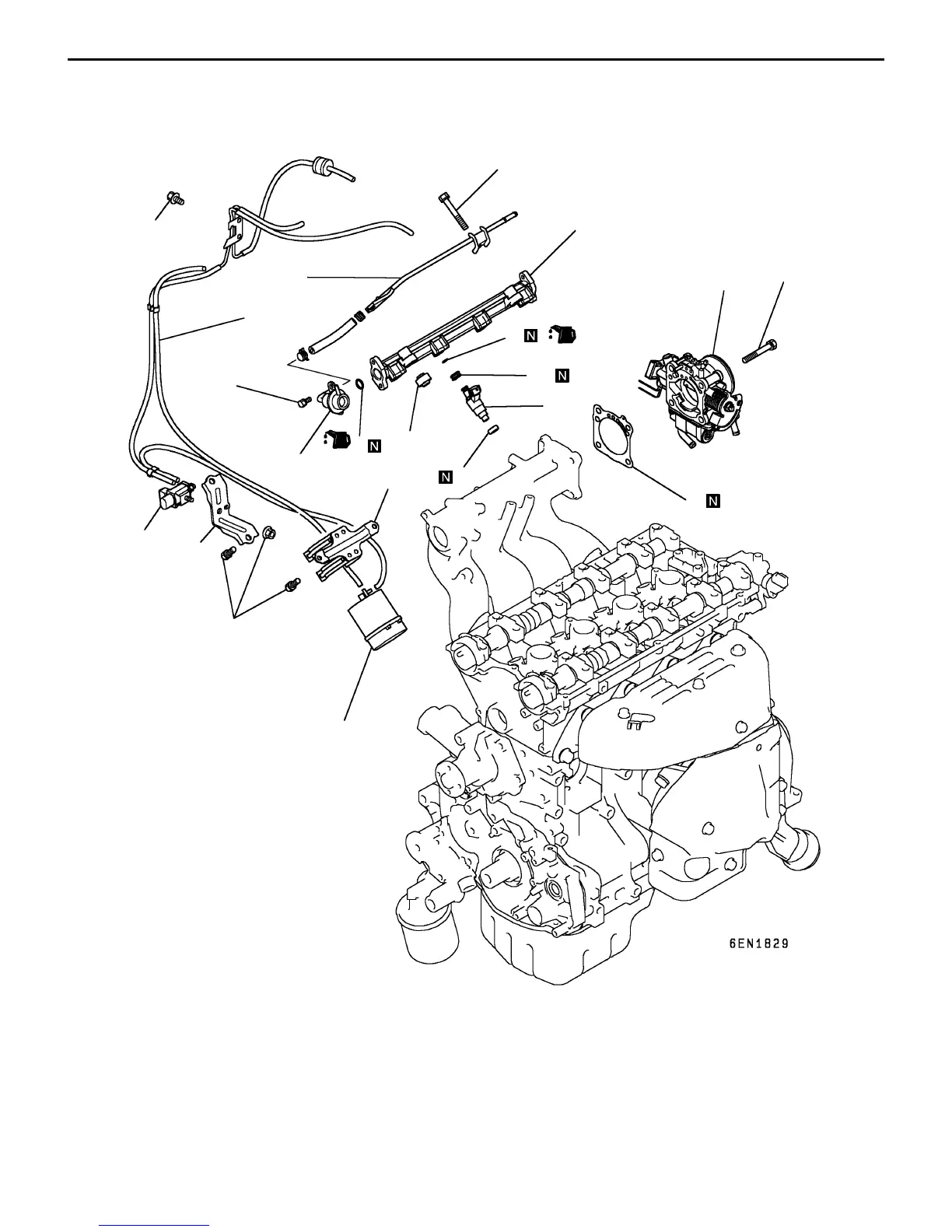

FUEL AND EMISSION CONTROL PARTS
REMOVAL AND INSTALLATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
9 Nm
11 Nm
9 Nm
11 Nm
18 Nm
Removal steps
1. Throttle body
"CA 2. Throttle body gasket
3. Fuel return pipe
"BA 4. Fuel pressure regulator
5. O-ring
6. Insulator
7. Insulator
"AA 8. Injector
9. O-ring
10. Grommet
11. Delivery pipe
12. Vacuum hose and vacuum pipe
13. Vacuum tank
14. Vacuum tank bracket
15. Solenoid valve
16. Solenoid valve bracket
