ENGINE – Timing Belt
11-26

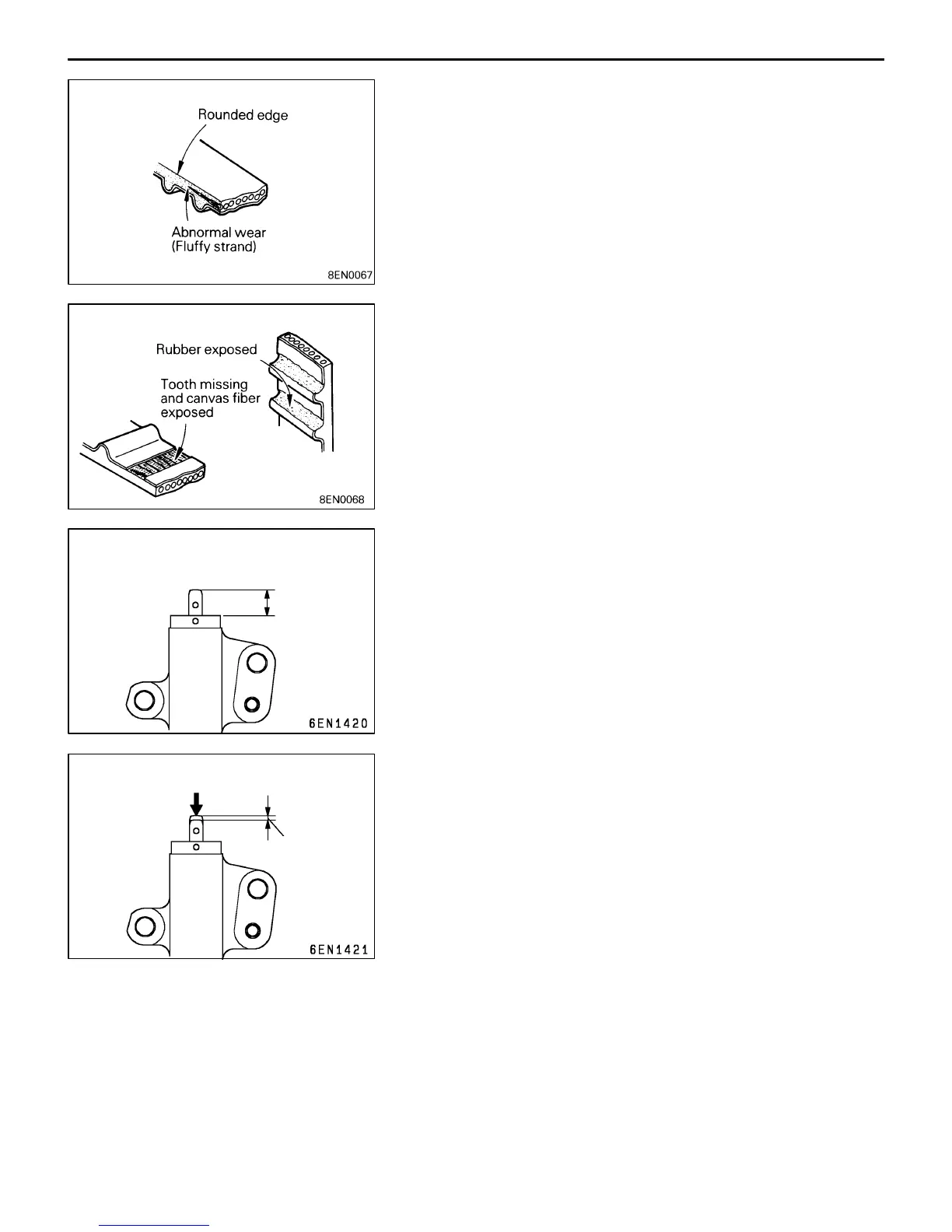

(6) Abnormal wear of belt sides. The sides are normal if
they are sharp as if cut by a knife.
(7) Abnormal wear on teeth.
(8) Missing tooth.
AUTO TENSIONER
(1) Check the auto tensioner for possible leaks and replace
as necessary.
(2) Check the rod end for wear or damage and replace as
necessary.
(3) Measure the rod protrusion. If it is out of specification,
replace the auto tensioner.
Standard value: 12 mm
(4) Press the rod with a force of 98 to 196 N and measure
its protrusion.
(5) If the measured value is 1 mm or more shorter than the
value obtained in step (3), replace the auto tensioner.
12 mm
98 to 196 N
Movement
