MANUAL TRANSMISSION OVERHAUL – Clutch Housing
22B-5

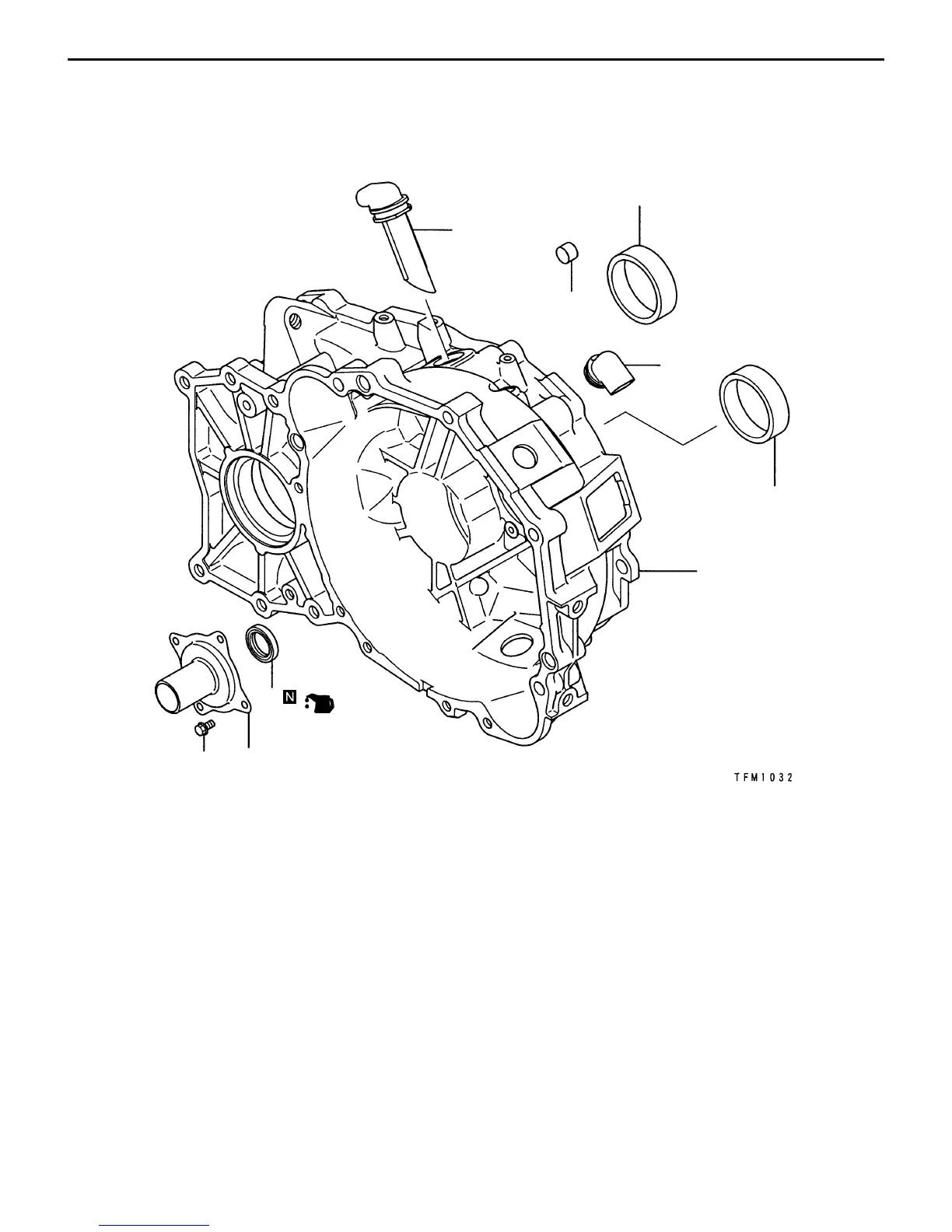

CLUTCH HOUSING
DISASSEMBLY AND REASSEMBLY
4
2
1
3
8
6
7
5*
9.8 Nm
Disassembly steps
1. Clutch release bearing retainer
"EA 2. Oil seal
AA""DA 3. Outer race
AB""CA 4. Outer race
"BA 5. Bushing*
"AA 6. Cover-A
"AA 7. Cover-B
8. Clutch housing
NOTE:
(1)*: Never remove the bushings from the clutch housing.
Only the case when installing new bushings into a new clutch housing, refer to "BA.
(2) For each service point, refer to Basic Manual. (Pub. No. S9806CNCP9)
To Next Page
