MANUAL TRANSMISSION OVERHAUL – Transmission
22B-4
TRANSMISSION
DISASSEMBLY AND REASSEMBLY
1
2
3
4
5
6
7
8
9
10
11
18 Nm
69 Nm
69 Nm
18 Nm
69 Nm
3.9 Nm
32 Nm
32 Nm
3

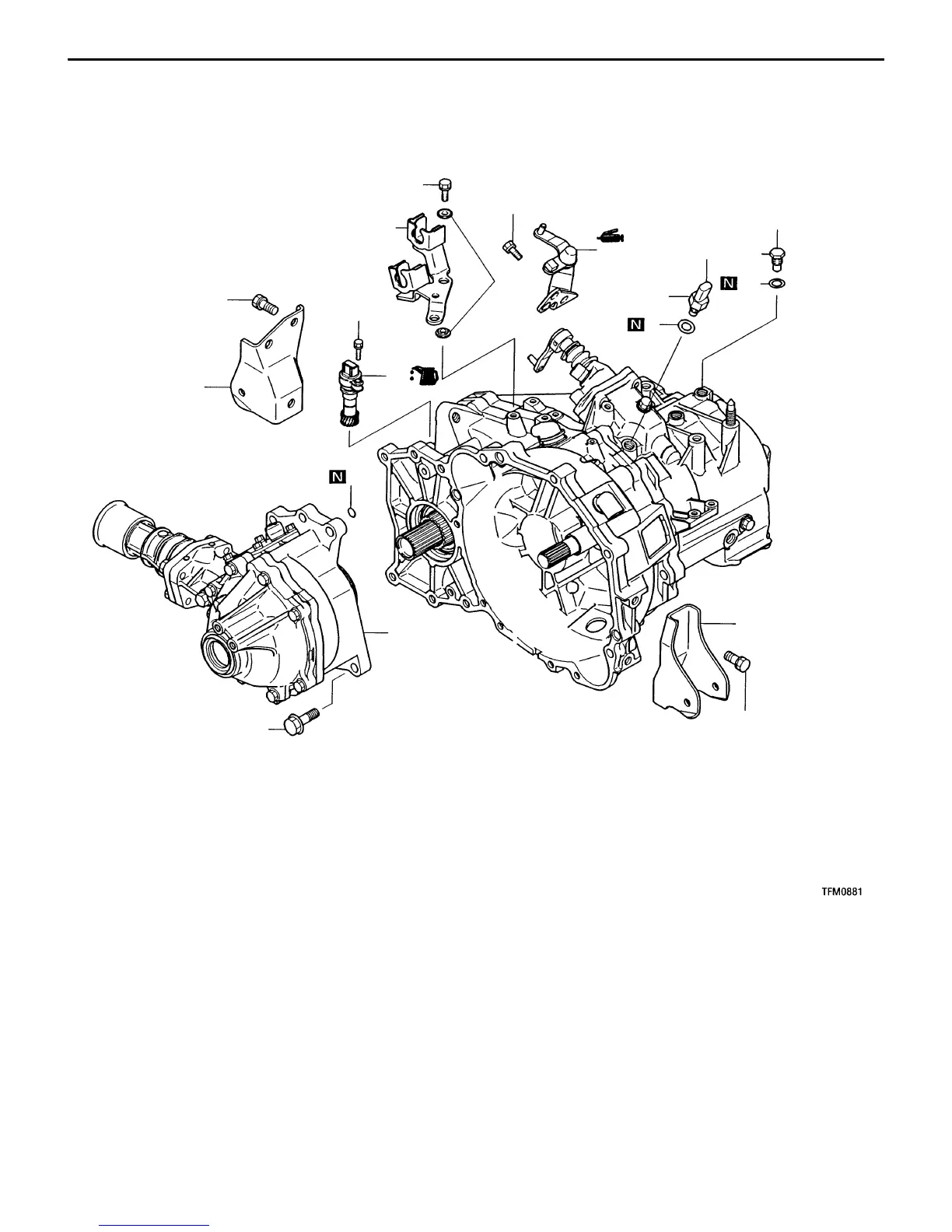

Disassembly steps
1. Transfer
"JA 2. O-ring
3. Roll stopper bracket
4. Insulator washer
(EVOLUTION-IV only)
5. Shift cable bracket
"IA 6. Select lever
"HA 7. Speedometer gear
8. Back-up lamp switch
9. Gasket
10. Plug
11. Gasket
NOTE:
For each service point, refer to Basic Manual. (Pub. No. S9806CNCP9)
