ENGINE – Water Pump and Water Hose
11-35

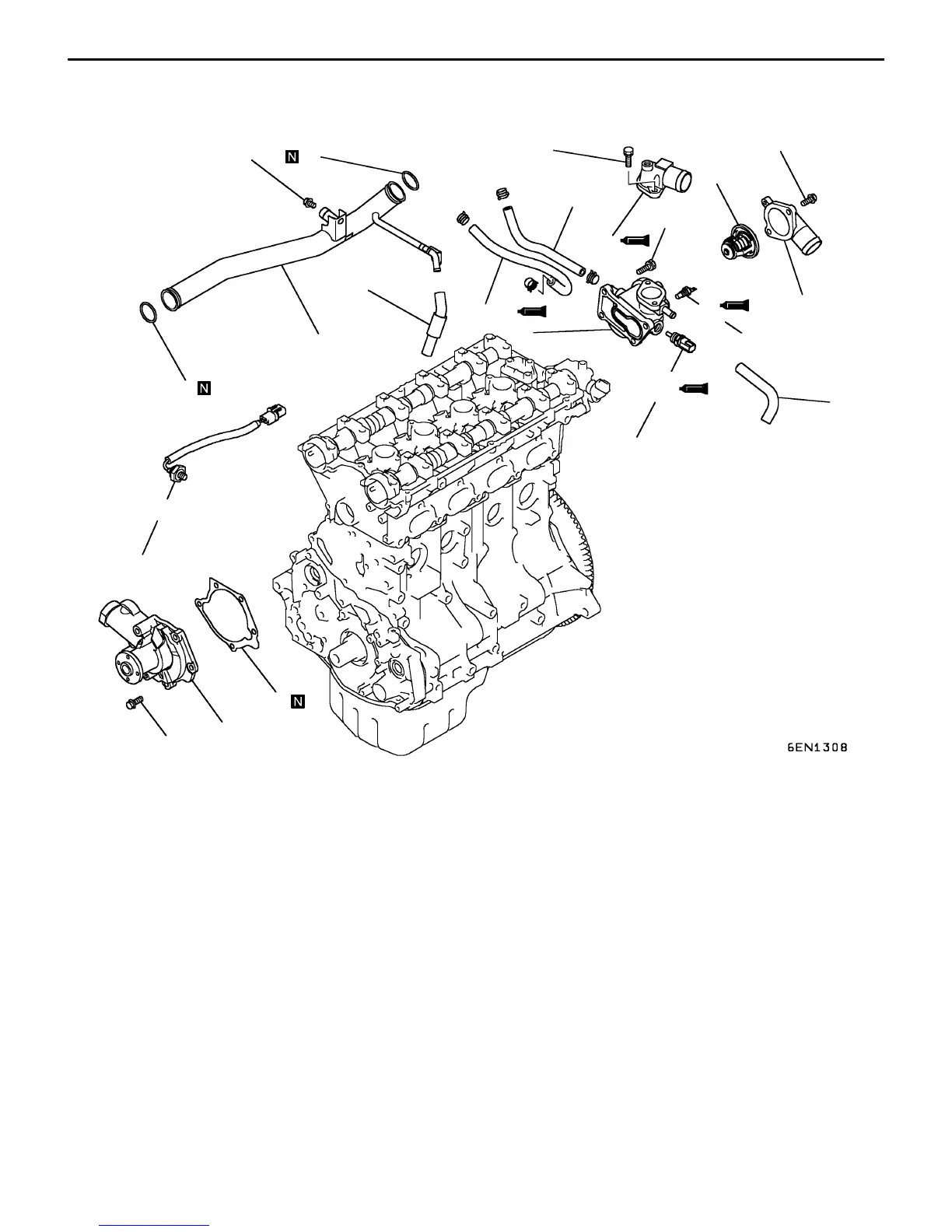

REMOVAL AND INSTALLATION <EVOLUTION IV or V>
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
14 Nm
22 Nm
11 Nm
24 Nm
24 Nm
29 Nm
13 Nm
10
13 Nm
Removal steps
1. Water hose
2. Water hose
3. Water hose
4. Water hose
"EA 5. Water temperature sensor
"DA 6. Water temperature gauge unit
7. Water inlet fitting
8. Thermostat
"CA 9. Water outlet fitting
"BA 10. Thermostat housing
"AA 11. O-ring
"AA 12. Water inlet pipe
"AA 13. O-ring
14. Water pump
15. Water pump gasket
16. Knock sensor
