ENGINE – Water Pump and Water Hose
11-36

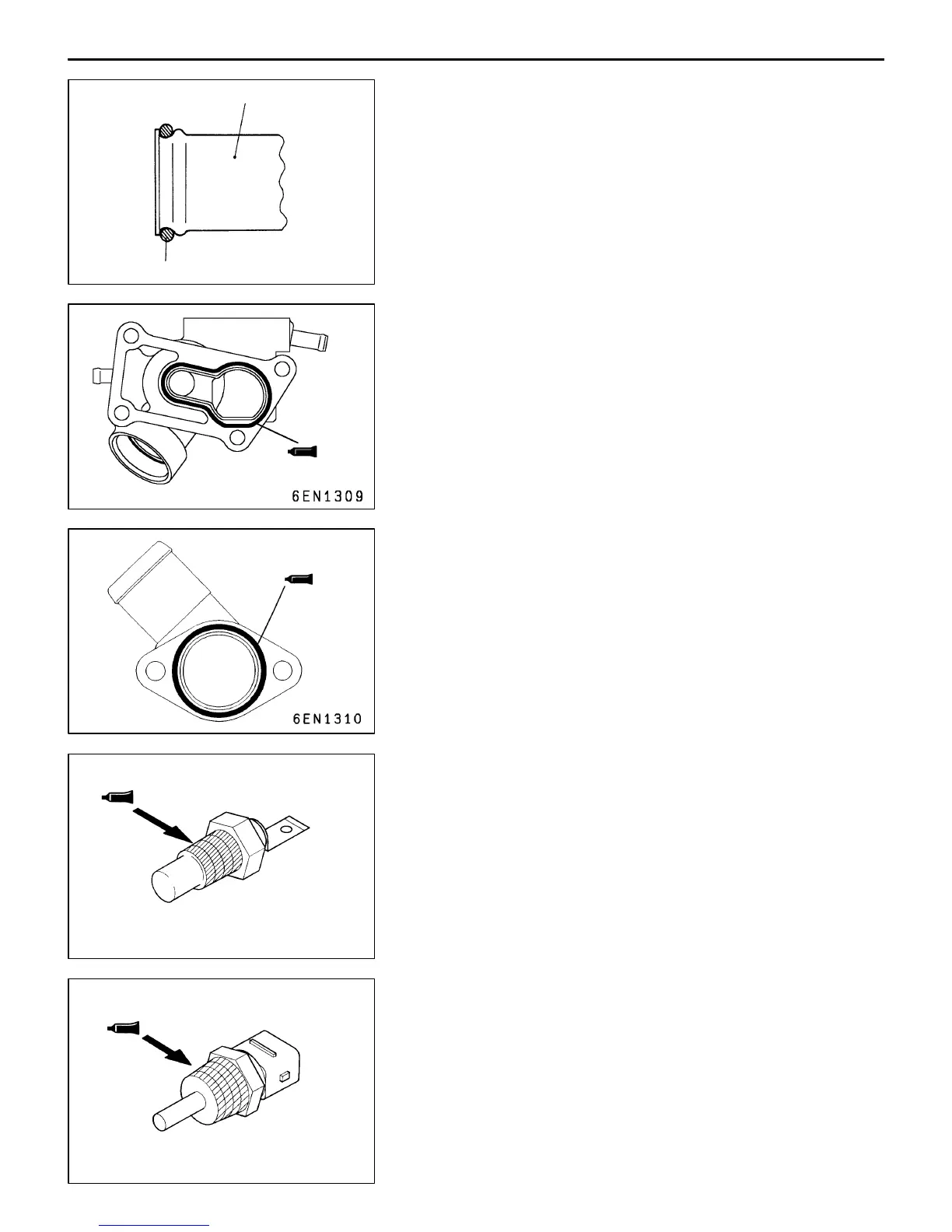

INSTALLATION SERVICE POINTS
"AA WATER PIPE / O-RING INSTALLATION
Wet the O-ring (with water) to facilitate assembly.
Caution
Keep the O-ring free of oil or grease.
"BA THERMOSTAT HOUSING INSTALLATION
Apply 3 mm diameter of form-in-place gasket (FIPG) to the
location shown in the illustration.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or equivalent
"CA WATER OUTLET FITTING INSTALLATION
Apply 3 mm diameter of form-in-place gasket (FIPG) to the
location shown in the illustration.
Specified sealant:
Mitsubishi Genuine Part No. MD970389 or equivalent
"DA SEALANT APPLICATION TO ENGINE COOLANT
TEMPERATURE GAUGE UNIT
(1) When reusing the gauge unit, clean its thread.
(2) Apply the specified sealant to the thread.
Specified sealant:
3M
TM
AAD Part No. 8672 or equivalent
"EA SEALANT APPLICATION TO ENGINE COOLANT
TEMPERATURE SENSOR
(1) When reusing the sensor, clean its thread.
(2) Apply the specified sealant to the thread.
Specified sealant:
3M
TM
AAD Part No. 8731 or equivalent
6EN0594
Water pipe
O-ring
9EN0092
9EN0091
