ENGINE – Starter Motor
11-85
REASSEMBLY SERVICE POINTS

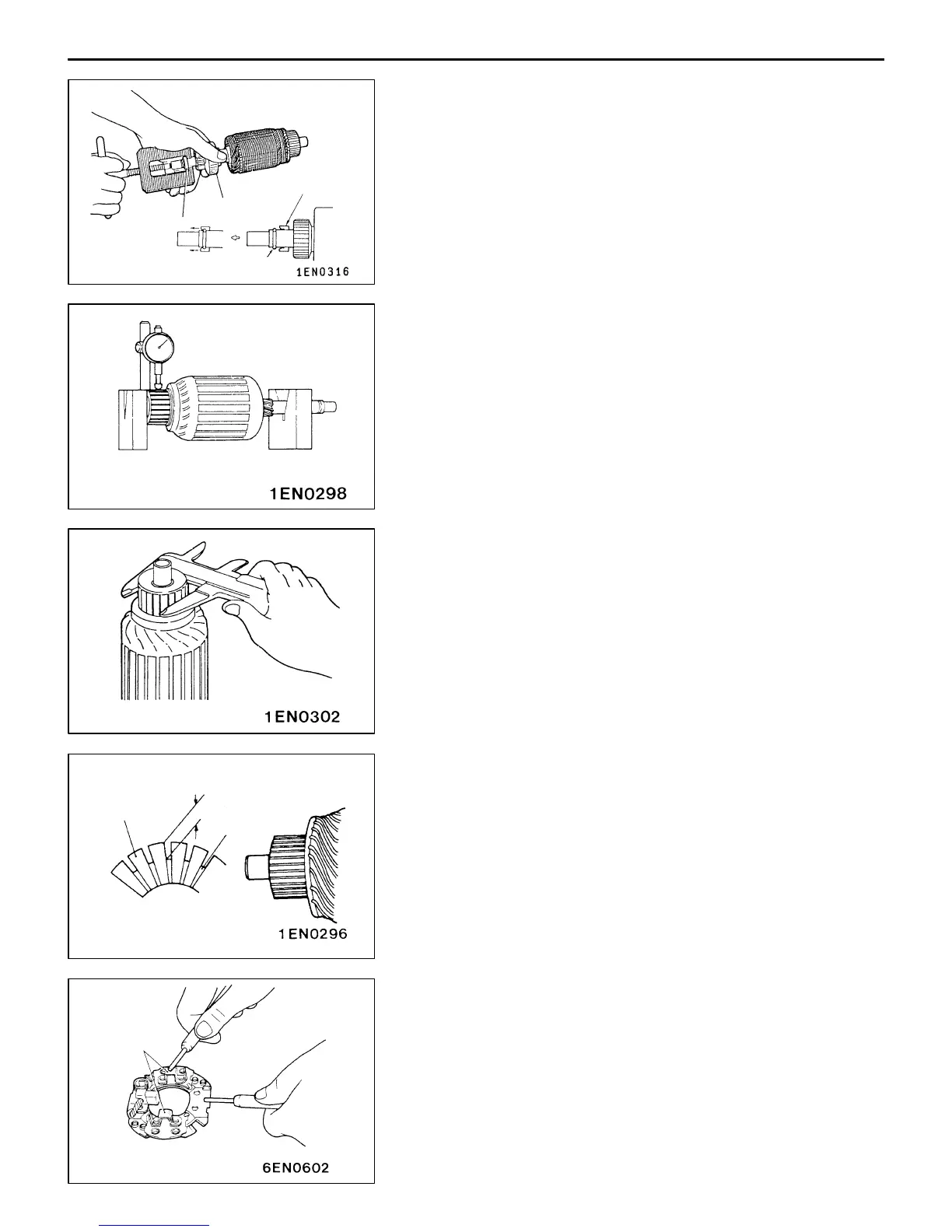

"AA STOP RING / SNAP RING INSTALLATION
Using a suitable pulling tool, pull overrunnig clutch stop ring
over snap ring.
INSPECTION
COMMUTATOR CHECK
(1) Place the armature in a pair of “V” blocks and check
the runout with a dial indicator.
Standard value: 0.05 mm
Limit: 0.1 mm
(2) Measure the commutator outer diameter.
Standard value: 32.0 mm
Limit: 31.4 mm
(3) Check the undercut depth between segments.
Standard value: 0.5 mm
BRUSH HOLDER CHECK
Check the continuity between brush holder plate and brush
holder.
If there is no continuity, the brush holder is in order.
Stop ring
Overrunning
clutch
Stop ring
Snap ring
Undercut
Segment
Mica
Brush holder
