FRONT AXLE – Axle Hub and Knuckle <EVOLUTION-VI>
26-2
INSPECTION
LOWER ARM BALL JOINT ROTATION STARTING
TORQUE CHECK

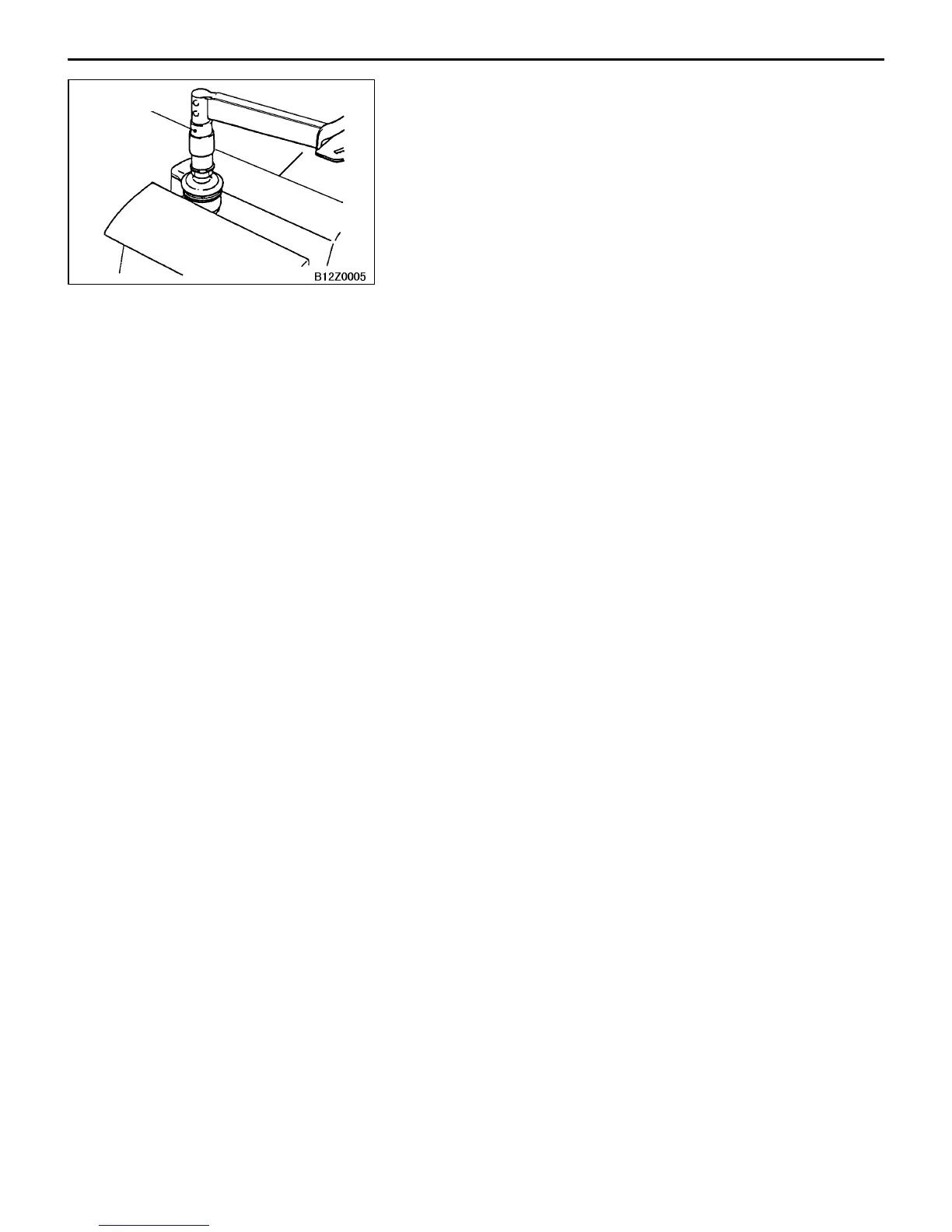

(1) After shaking the ball joint stud several times, install the
nut to the stud and use the special tool to measure the
rotation starting torque of the ball joint.
Standard value: 1.0 – 3.4 Nm
(2) When the measured value exceeds the standard value,
replace the ball joint assembly.
(3) When the measured value is lower than the standard
value, check that the ball joint turns smoothly without
excessive play. If so, it is possible to use that ball joint.
LOWER ARM BALL JOINT DUST COVER
REPLACEMENT
When the dust cover is damaged during service work or grease
leaks out from the dust cover, replace the dust cover in the
conventional procedure. After replacement, check the dust
cover for cracks or damage by pushing it with finger.
MB990326
