BASIC BRAKE SYSTEM – Disc Brake
35A-10

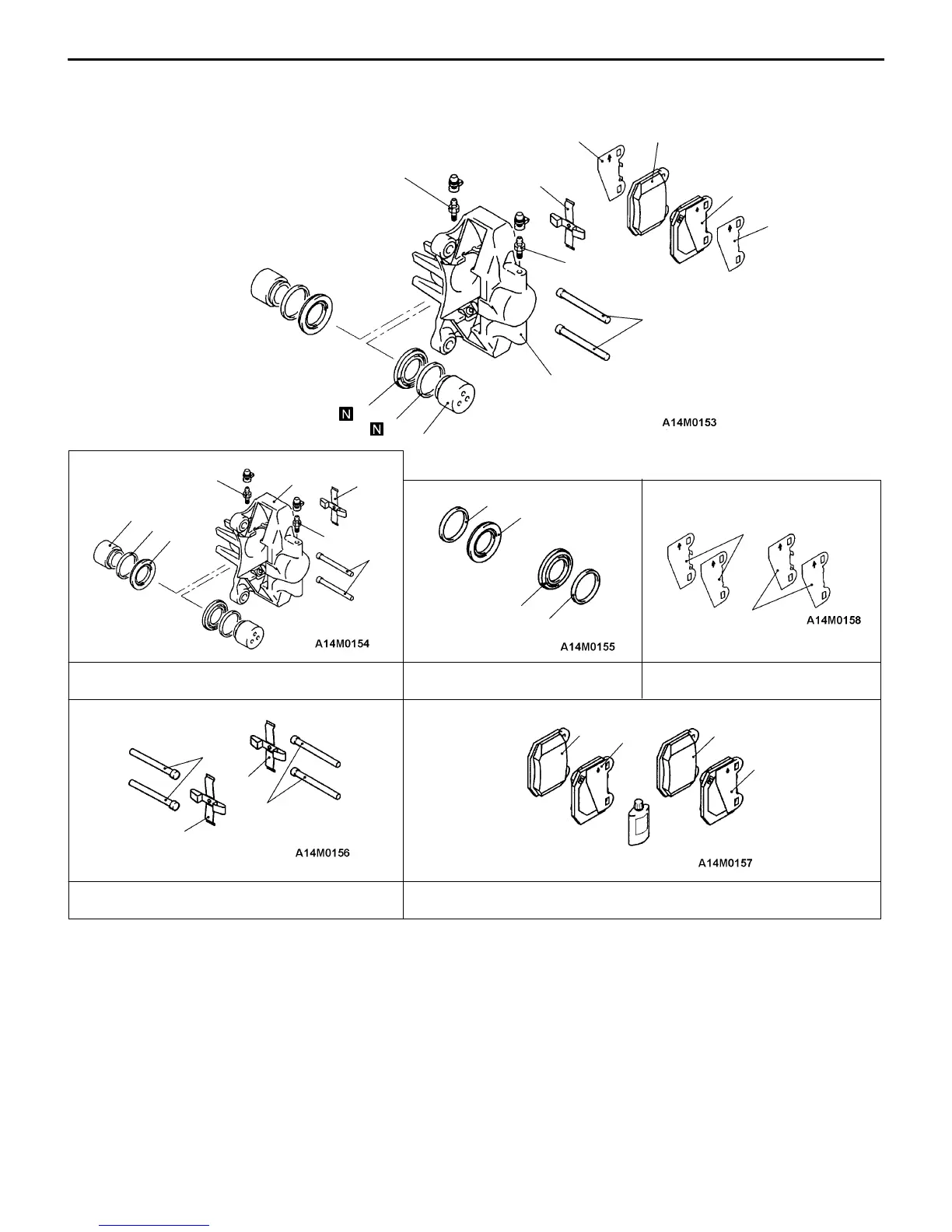

Rear Brake
Seal & boot kit Shim set
Clip set Pad set
Brake caliper kit
1
2
3
4
5
6
7
8
9
10
2
6
1
6
7
8
9
10
2
1
7
9
7
9
3
4
3
4
2
1
6
5
5
5
Disassembly steps
1. Pin
2. Cross spring
3. Pad & wear indicator assembly
4. Pad assembly
5. Shim
6. Air bleeder screw
7. Piston boot
8. Piston
9. Piston seal
10. Caliper body
